This analog output module converts digital signals to precision voltage or current outputs. It drives actuators, valves, and positioners in GE Mark VI turbine control systems. Therefore, this component suits fuel control, steam regulation, and servo applications.

Physical Dimensions and Weight Specifications

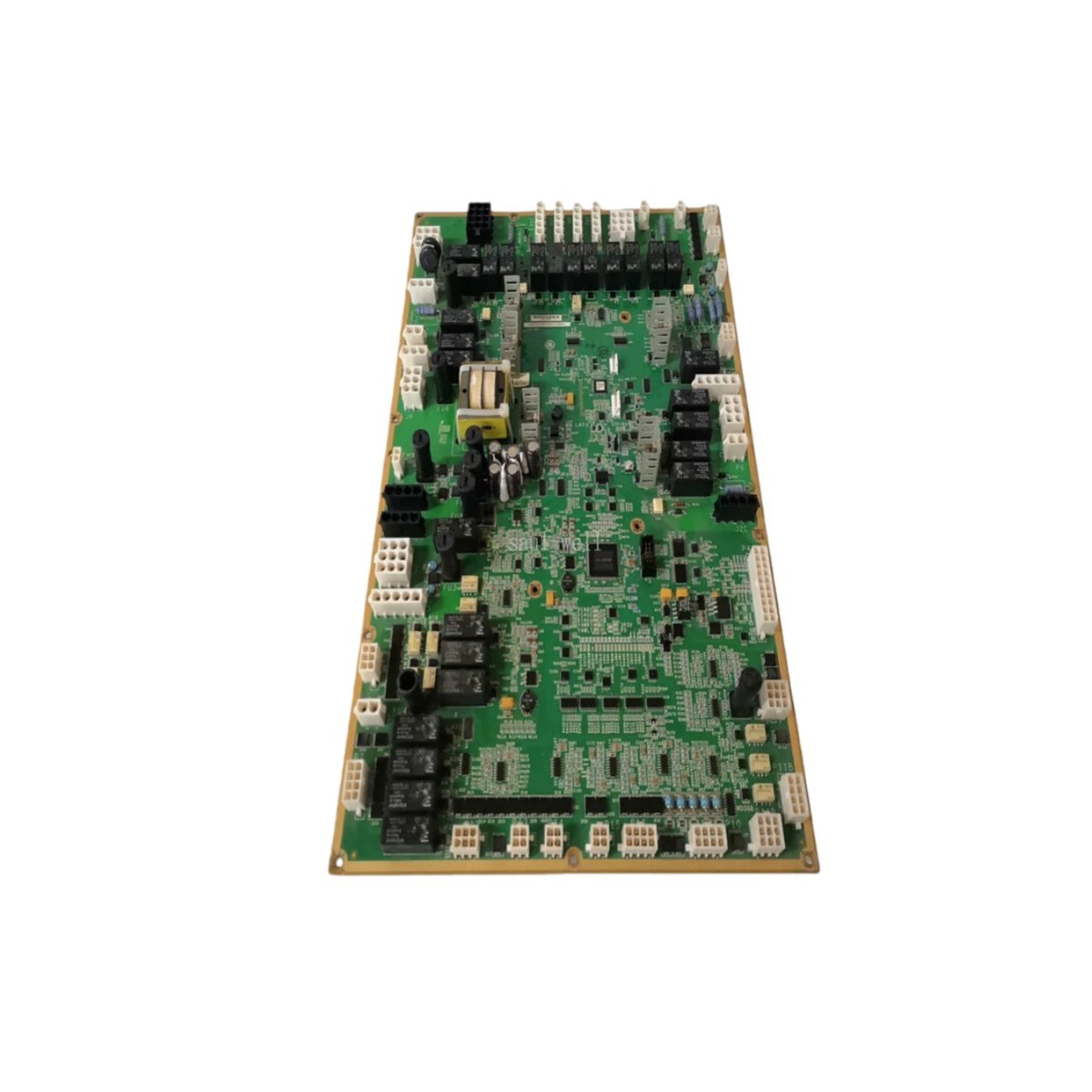

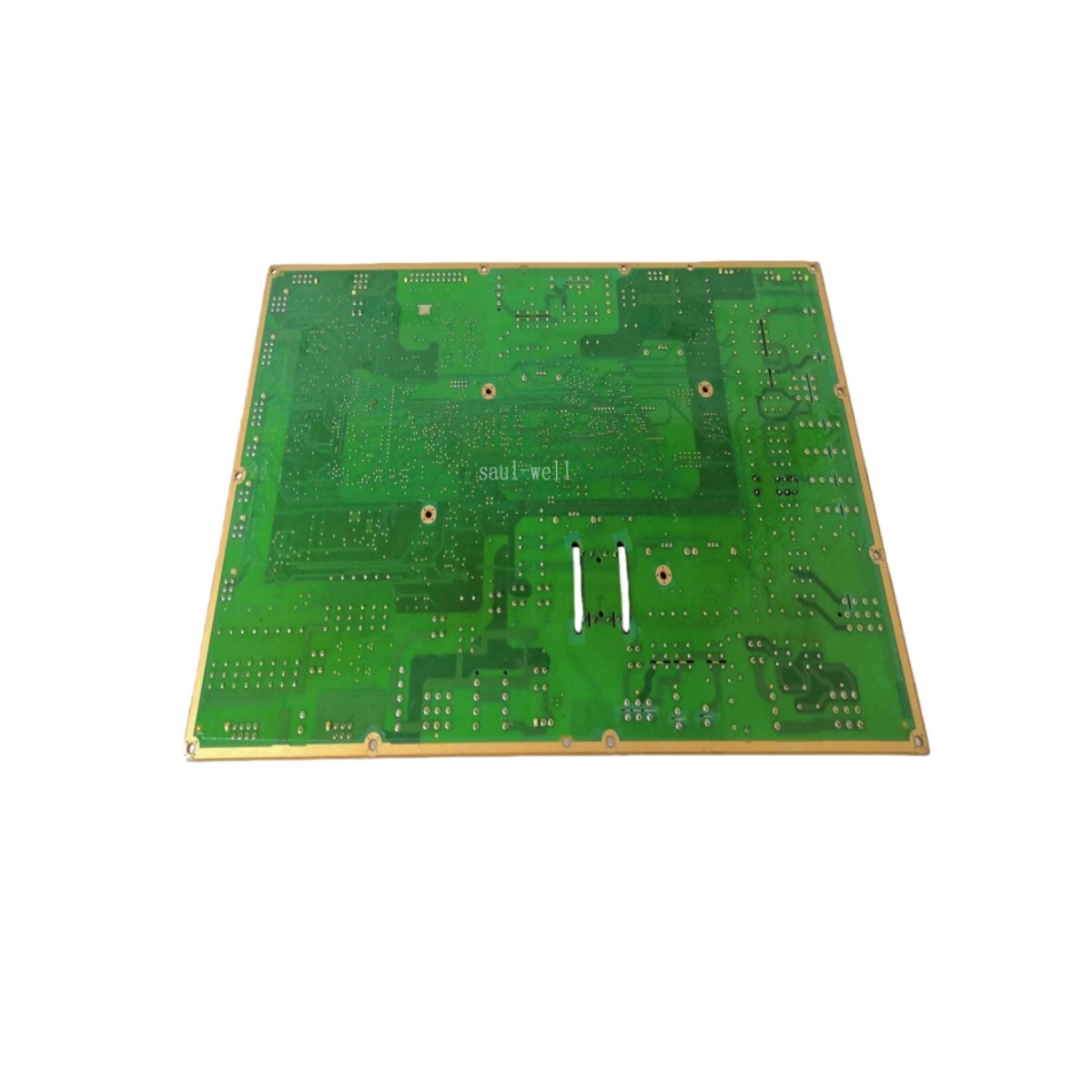

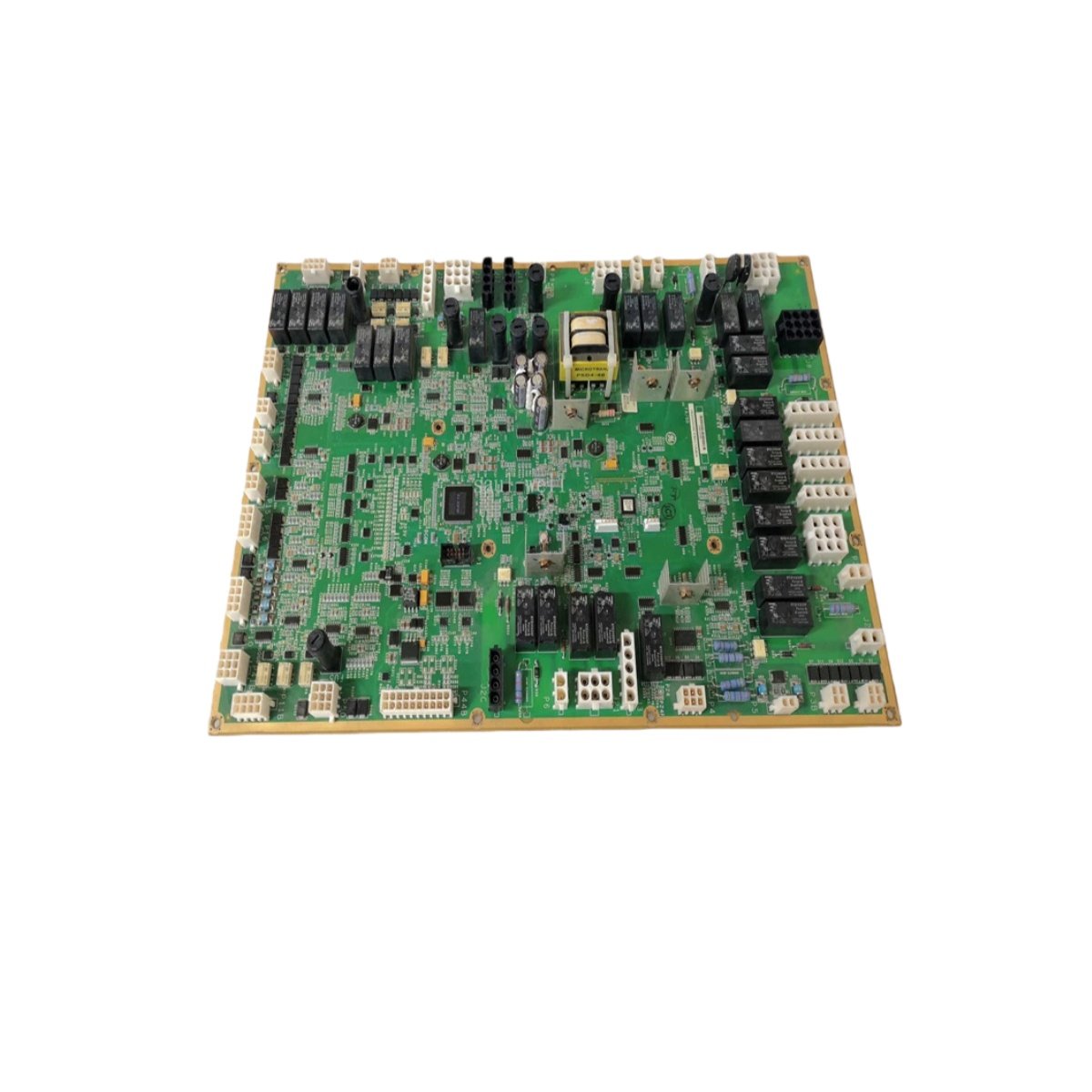

The GE IS200WETBH1ABA features a standard PCB form factor for rack mounting. Its board dimensions measure 267 mm in height for vertical insertion. The total depth reaches 305 mm for backplane connectivity. Consequently, technicians can install this board in Mark VI drive cabinets.

Interface Types and Connection Layout

The GE IS200WETBH1ABA provides screw terminals for field actuator wiring. A 50-pin backplane connector receives digital setpoints from the main controller. The front panel carries LED indicators for each output channel status. Hence, operators can verify output activity at a quick glance.

Component Count and Channel Configuration

This analog output module contains one main board with 8 independent channels. Each channel uses a 14-bit digital-to-analog converter for precision. You will also find programmable gain amplifiers per output. An onboard microcontroller handles channel calibration and diagnostics.

Energy Storage and Power Consumption

The GE IS200WETBH1ABA draws 400 mA from the 5V logic supply. It also requires 200 mA from an external 24V supply for field circuits. A small capacitor bank filters noise on the analog output rails. This storage ensures smooth, ripple-free signals for precise actuator control.

Output Performance and Diagnostic Features

The module updates all 8 outputs within a 2 ms cycle time. Each channel includes short-circuit protection for field wiring faults. Users can read diagnostic status via the backplane bus. This feature reduces troubleshooting time during system maintenance.
