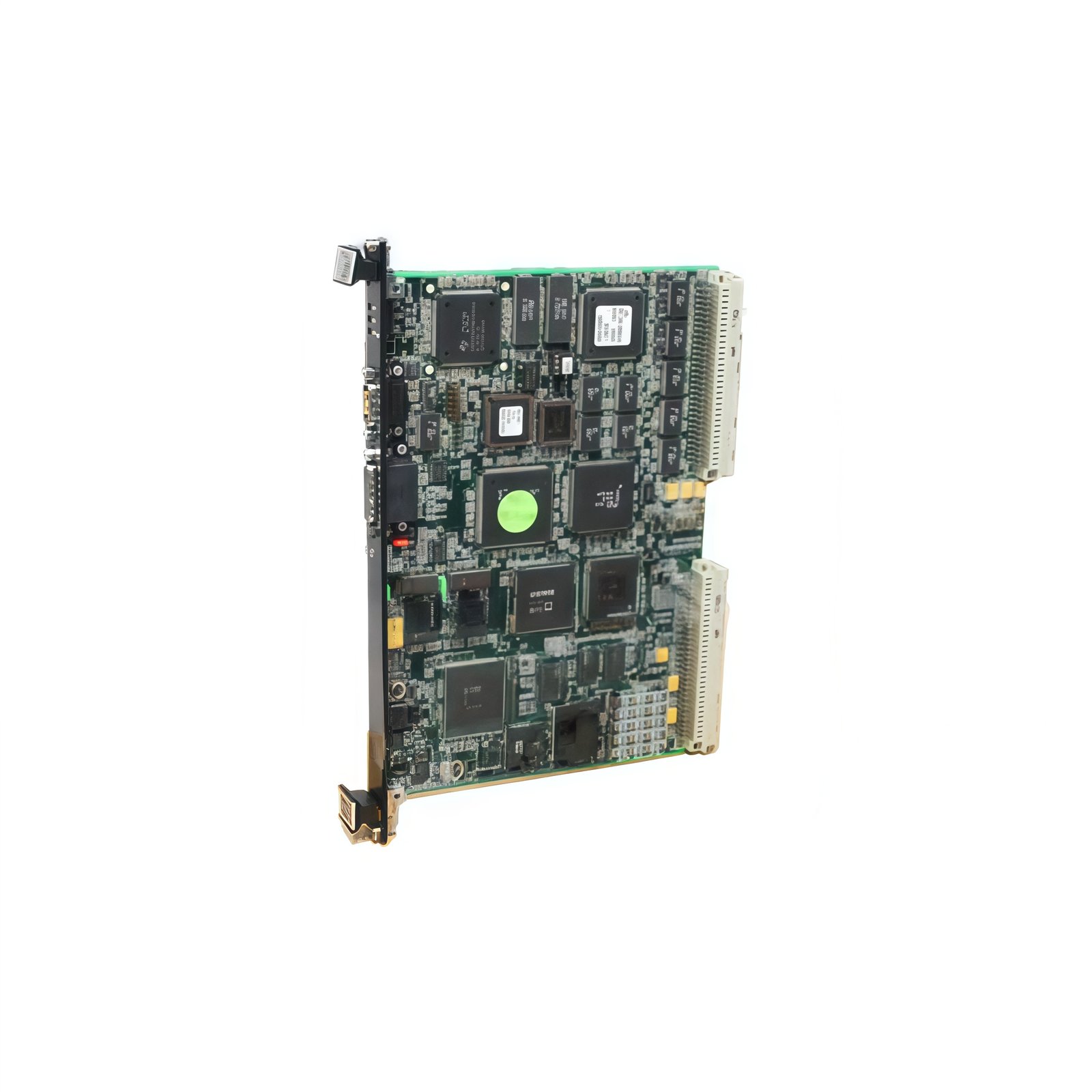

This VME-based RTD module delivers reliable temperature monitoring for industrial turbines. The GE IS200VRTDH1B IS200VRTDH1BBA accepts up to twelve independent RTD input channels. Each channel supports 3-wire or 4-wire RTD configurations for maximum flexibility. Consequently, operators can measure temperature across critical rotating machinery with high accuracy.

Technical Specifications of GE IS200VRTDH1B IS200VRTDH1BBA

The GE IS200VRTDH1B IS200VRTDH1BBA fits a standard 6U VME form factor seamlessly. Its height measures 233.4 mm, while its depth reaches 160 mm. The module weighs approximately 0.5 kg for easy handling. A single front panel LED provides real-time operational status. The rear side uses a 64-pin DIN 41612 connector for all signals and power. This design stores no significant energy beyond passive signal conditioning. Therefore, the module contains no batteries or large capacitors.

Functional Features and Installation

The GE IS200VRTDH1B IS200VRTDH1BBA performs automatic open/short sensor detection. Each of the twelve channels delivers 16-bit resolution for precise temperature readings. The single PCB layout places all active components on one side. This arrangement simplifies visual inspection and repairs. You must install this module into any standard VME backplane chassis. The board does not include field wiring terminals. Instead, pair it with a separate termination panel like the IS200TRTDH1B. Always verify backplane compatibility before installation.

Safety and Maintenance Benefits

Because the GE IS200VRTDH1B IS200VRTDH1BBA stores no onboard energy, it supports safe hot-swapping. Technicians can replace the module without powering down the entire rack. This feature reduces system downtime significantly. The firmware also reports channel faults directly to the Mark VIe controller. Consequently, operators receive immediate alerts for sensor failures.
