The GE IS200VCMIH1B IS200VCMIH1BCC steam turbine management board oversees critical turbine operating parameters. This board monitors speed, temperature, and pressure from multiple sensor inputs. You will find this unit inside a standard Mark VI Speedtronic rack. It executes safety shutdown logic when conditions exceed allowable limits.

Technical Specifications

The table below lists accurate parameters for this turbine management board.

Physical Layout and Component Arrangement

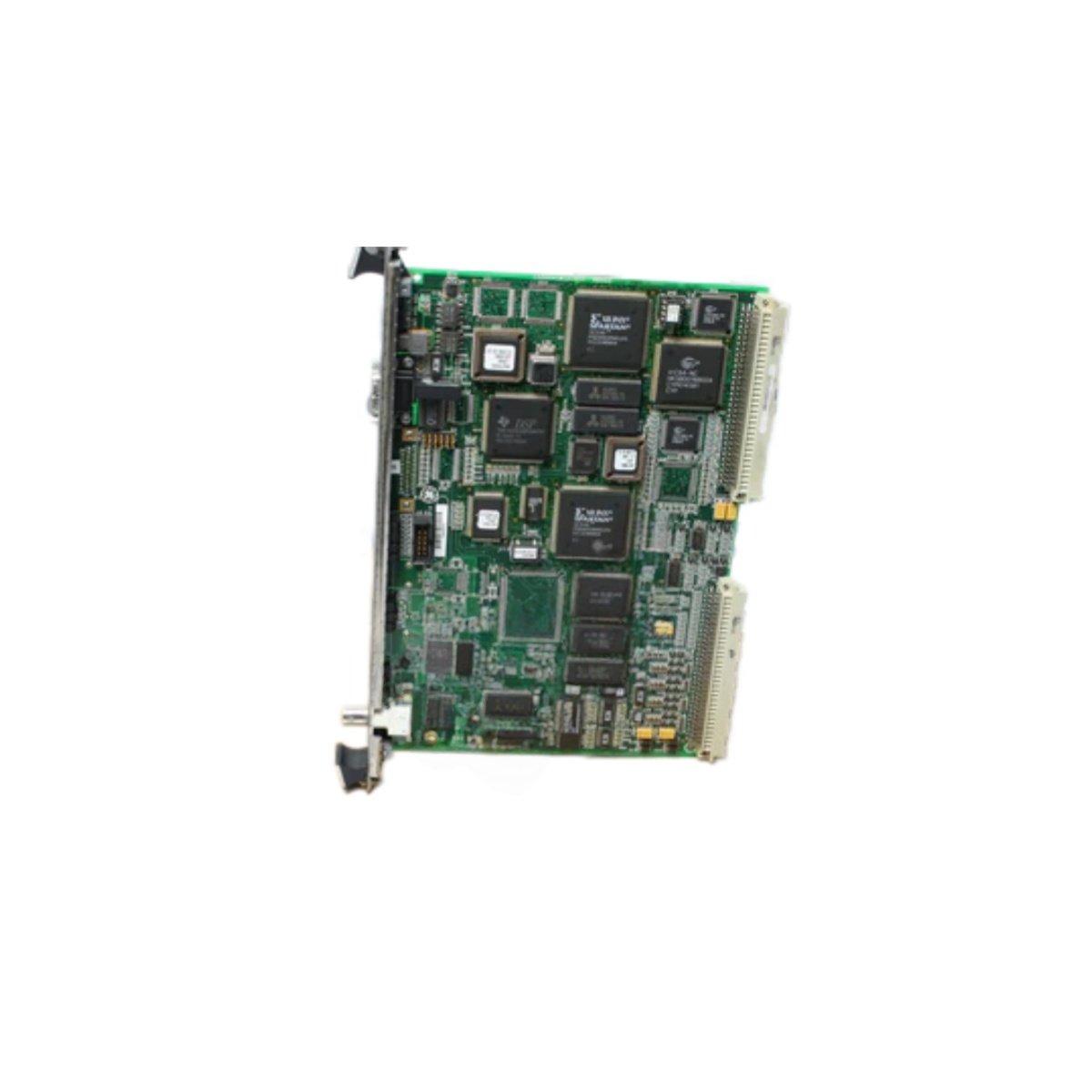

The GE IS200VCMIH1B IS200VCMIH1BCC turbine management board uses a rigid epoxy substrate. One main CPU occupies the central position on this board. Four memory chips sit adjacent to the processor for fast access. Twelve capacitors provide power decoupling across all voltage rails. Two backplane connectors anchor this board securely into the Mark VI rack. Two terminal blocks handle field wiring for sensors and actuators.

Functional Features and Integration

This management board executes overspeed detection logic within milliseconds of an event. It compares real-time readings against programmed trip setpoints continuously. The GE IS200VCMIH1B IS200VCMIH1BCC also logs all alarm events to its onboard Flash memory. Consequently, operators can review historical data for maintenance planning.

Installation and Safe Handling

Always power down the entire rack before inserting this management board. Hold the GE IS200VCMIH1B IS200VCMIH1BCC firmly by its non-conductive edges. Push the board straight down until both backplane connectors lock into place. Then connect all sensor wires to the appropriate terminal blocks. After installation, upload the turbine configuration file through the Mark VI software interface.
