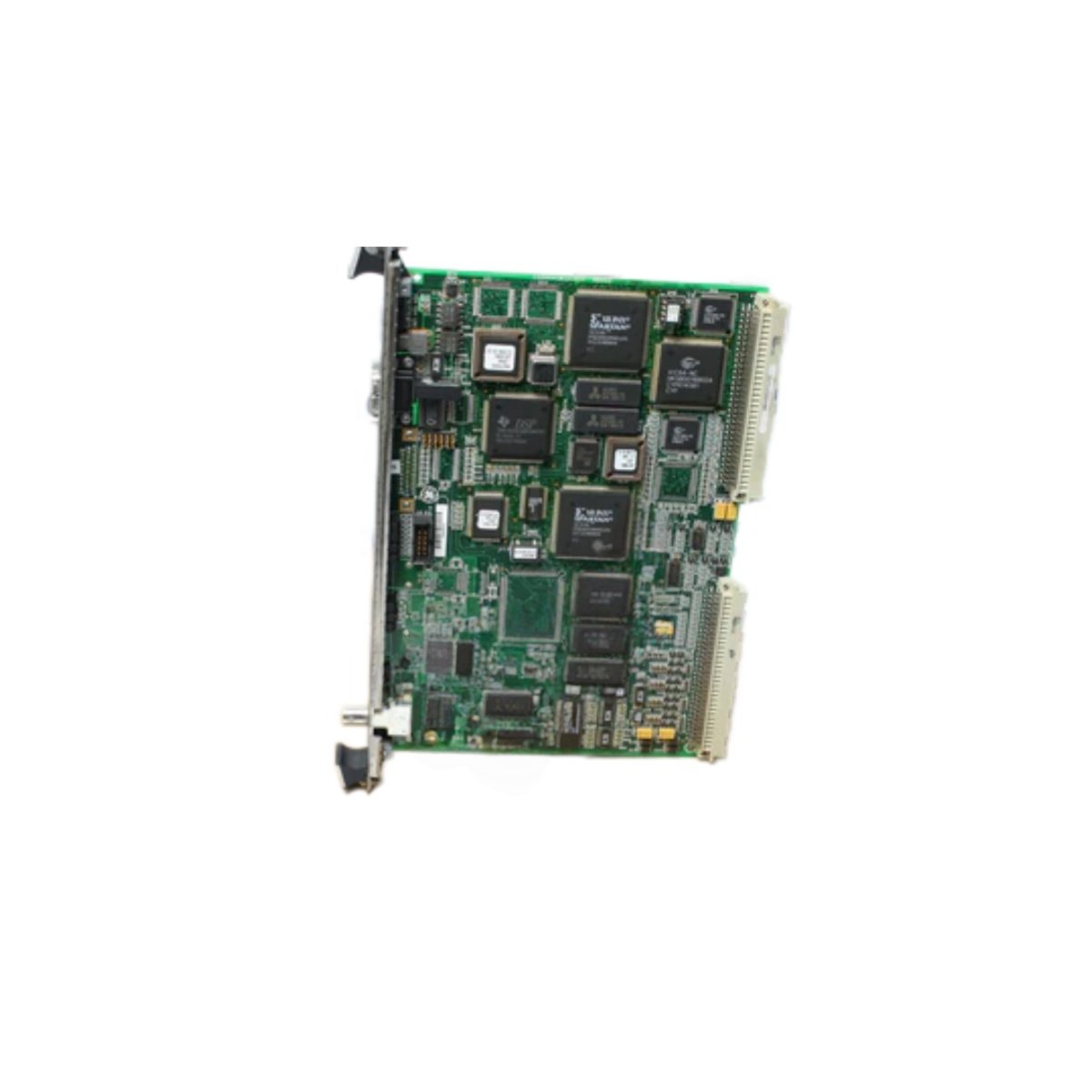

This multilayer printed circuit board serves as a core component in Mark VIe systems. The GE IS200VCMIH1B IS200VCMIH1BCC integrates critical control and communication functions on a single assembly. Surface-mount technology populates both sides of the board for maximum density. Consequently, engineers can rely on this board for reliable operation in harsh turbine environments.
Technical Specifications of the Printed Circuit Board
The GE IS200VCMIH1B IS200VCMIH1BCC conforms to a standard VME 6U form factor. Its height measures 233.4 mm, and its depth reaches 160 mm. The board weighs approximately 0.62 kg including all mounted components. A single front panel connector provides access to diagnostic and status indicators. The rear side uses a 64-pin DIN 41612 connector for backplane signal routing. This design stores minimal energy in small filtering capacitors only. Therefore, the board contains no batteries or large energy storage elements.
| Parameter | Specification |
|---|---|
| Full Model | GE IS200VCMIH1B IS200VCMIH1BCC |
| Category | Printed Circuit Board (VME Control Module) |
| Dimensions (H x D) | 233.4 mm x 160 mm |
| Weight | Approximately 0.62 kg |
| Layer Count | 8-layer multilayer construction |
| Component Sides | Double-sided surface-mount |
| Interface Connectors | 1 x front panel, 1 x rear 64-pin DIN 41612 |
| Onboard Components | Approximately 280 individual parts |
| Energy Storage | Minimal (filtering only) |
| Supply Voltage | +5V DC at 0.95 A typical |
| Operating Temperature | -30°C to +65°C |
Functional Features and Construction Quality
The GE IS200VCMIH1B IS200VCMIH1BCC uses high-grade FR4 material for thermal stability. You can find dedicated power and ground planes within the eight-layer stack. This arrangement reduces electrical noise and improves signal integrity significantly. The board also includes conformal coating for moisture and dust protection. Consequently, the assembly withstands the demanding conditions inside turbine control cabinets.
Installation and System Integration
You must install this printed circuit board into a standard VME backplane chassis. The GE IS200VCMIH1B IS200VCMIH1BCC requires a dedicated slot for proper operation. A front panel extractor handle aids in removing the board safely. Always verify backplane pin compatibility before inserting the module. The board automatically configures its address based on slot position.
Maintenance and Reliability Benefits
Because the GE IS200VCMIH1B IS200VCMIH1BCC stores no battery-backed data, it requires no periodic battery replacement. Technicians can remove and reinstall the board without any data loss. The conformal coating protects copper traces from corrosion and humidity. Consequently, the board offers excellent mean time between failures for industrial applications.
