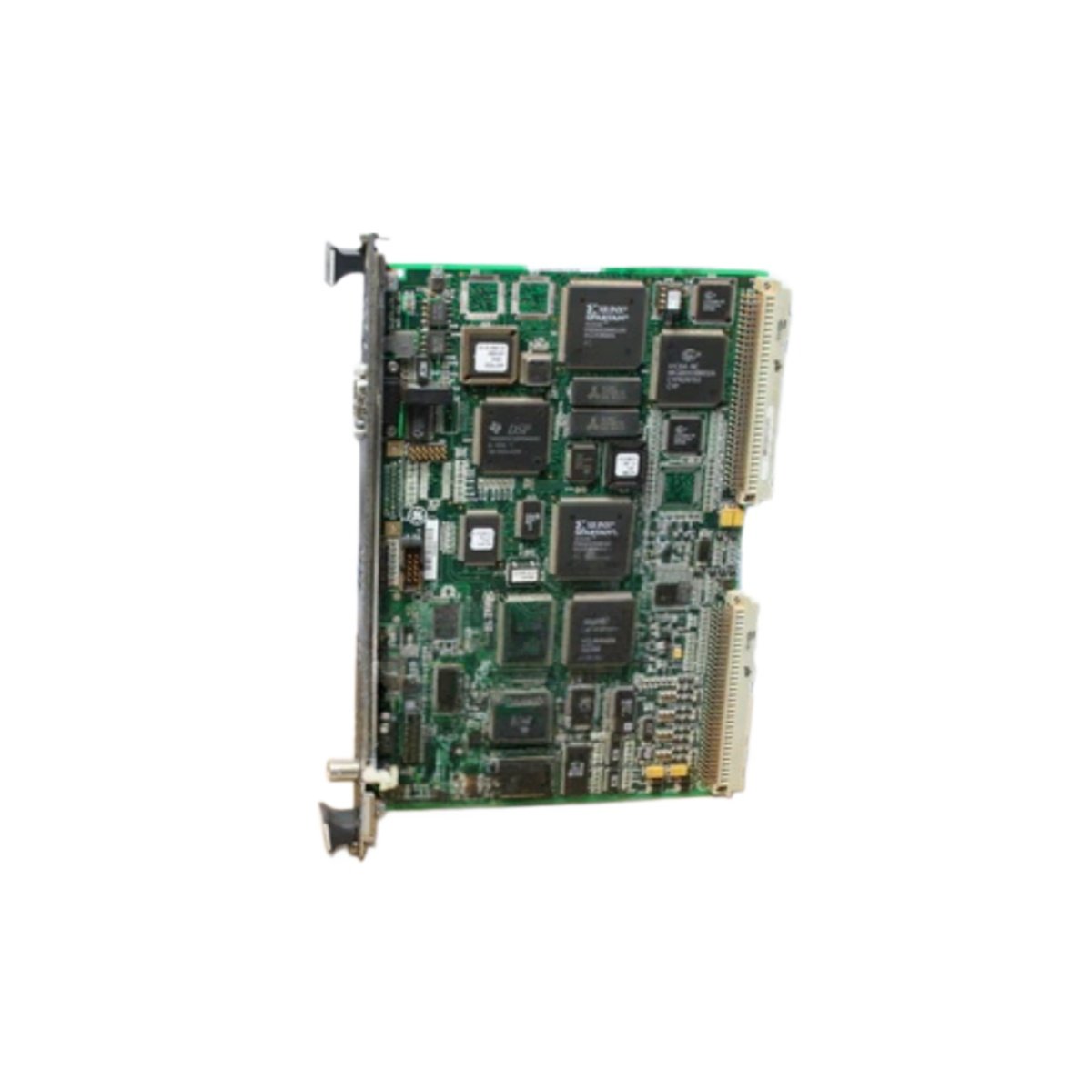

This high-density printed circuit board forms the backbone of GE Mark VIe control systems. The GE IS200VCMIH1B IS200VCMIH1BCB integrates multiple I/O interfaces onto a single VME form factor assembly. Advanced surface-mount technology places components on both sides of the board. Consequently, engineers receive maximum functionality within a compact 6U package.
Technical Specifications of the Printed Circuit Board
The GE IS200VCMIH1B IS200VCMIH1BCB conforms precisely to the VME 6U mechanical standard. Its height measures 233.4 mm, and its depth reaches 160 mm. The board weighs approximately 0.62 kg including all soldered components and connectors. A single front panel cutout provides access for diagnostic LED viewing. The rear side features a 64-pin DIN 41612 connector for backplane communication. This design stores minimal energy in small decoupling capacitors only. Therefore, the board contains no batteries or large energy storage elements.
| Parameter | Specification |
|---|---|
| Full Model | GE IS200VCMIH1B IS200VCMIH1BCB |
| Category | Printed Circuit Board (VME Control Module) |
| Dimensions (H x D) | 233.4 mm x 160 mm |
| Weight | Approximately 0.62 kg |
| Layer Count | 8-layer multilayer construction |
| Component Sides | Double-sided SMT population |
| Total Components | Approximately 265 individual parts |
| Rear Connector | 64-pin DIN 41612 male |
| Energy Storage | Minimal (decoupling only) |
| Supply Voltage | +5V DC at 0.95 A typical |
| Operating Temperature | -30°C to +65°C |
Functional Features and Build Quality
The GE IS200VCMIH1B IS200VCMIH1BCB uses high-Tg FR4 material for thermal reliability. You will find dedicated power and ground planes within the eight-layer stack. This layer arrangement minimizes electrical noise and enhances signal integrity significantly. The board also includes a factory-applied conformal coating for environmental protection. Consequently, the assembly resists moisture, dust, and corrosive gases in turbine environments.
Installation and System Use
You must install this printed circuit board into a standard VME backplane chassis. The GE IS200VCMIH1B IS200VCMIH1BCB requires a compatible slot with 64-pin DIN rail. A front panel extractor handle allows safe board removal without tools. Always verify backplane pin compatibility before inserting the module. The board automatically senses its slot address upon power-up.
Maintenance and Longevity Benefits
Because the GE IS200VCMIH1B IS200VCMIH1BCB stores no battery-backed data, it needs no periodic battery changes. Technicians can remove and reinstall the board without any configuration loss. The conformal coating protects copper traces and solder joints from corrosion. Consequently, this board delivers excellent long-term reliability in industrial automation applications.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
