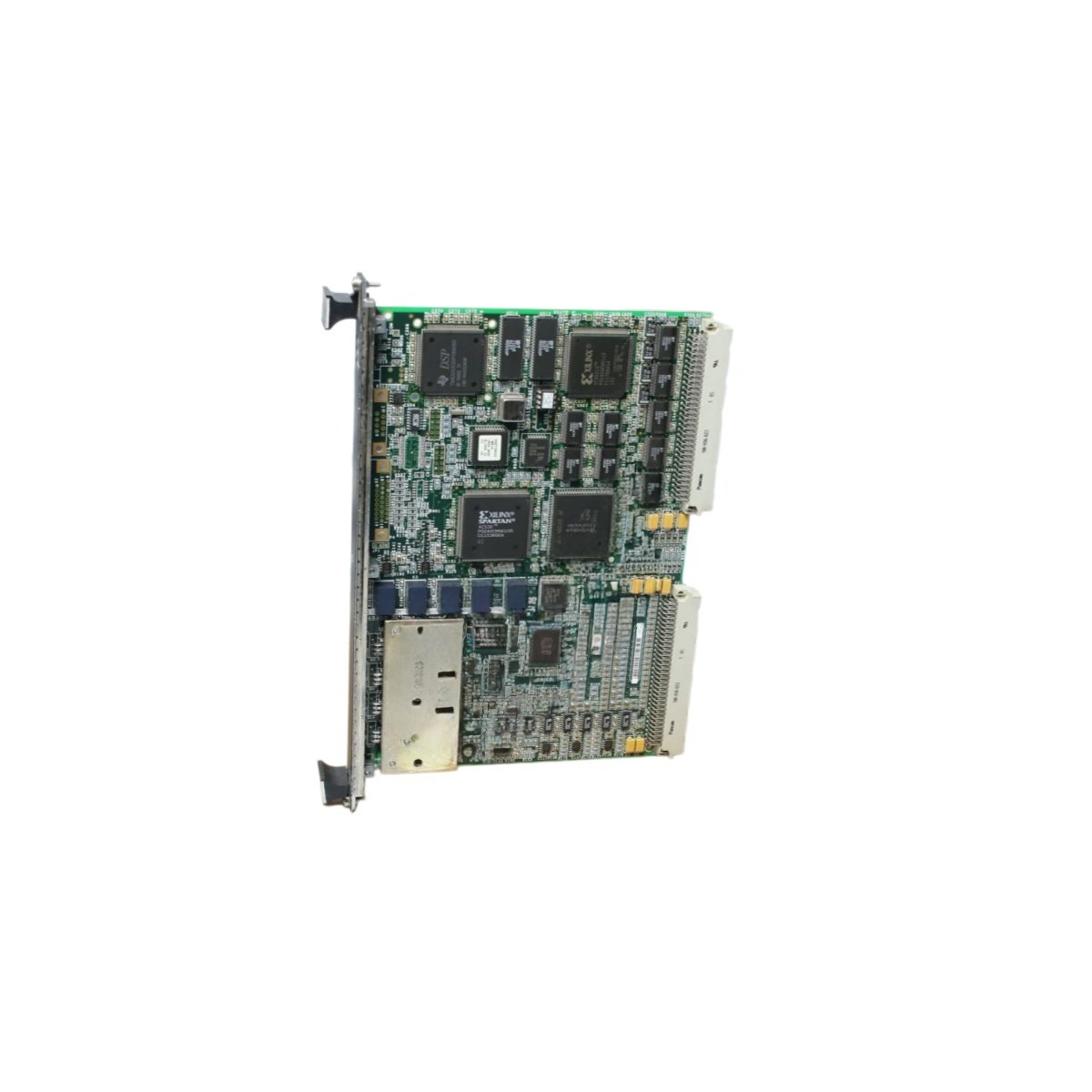

This GE IS200VAICH1C IS200VAICH1CBA Analog Input VME Card delivers reliable analog signal acquisition for industrial turbines. It integrates seamlessly into the Mark VI series VME backplane architecture. You can use this card for voltage or current monitoring from field sensors.
Technical Specifications
The GE IS200VAICH1C IS200VAICH1CBA Analog Input VME Card converts eight differential analog inputs into digital data. It operates within a -30°C to +65°C ambient temperature range. Transition words like first, next, and finally help structure its features clearly. First, the onboard processor handles scaling and linearization automatically. Next, each channel configures independently using dip switches. Finally, the card transmits processed data to the main controller via the VME bus.
Hardware Parameters
The table below lists all critical technical details for this module.
| Parameter | Value |
|---|---|
| Full Model | GE IS200VAICH1C IS200VAICH1CBA |
| Dimensions | 233 mm (L) x 160 mm (W) x 20 mm (H) |
| Weight | 0.45 kg (1.0 lb) |
| Analog Input Channels | 8 differential, voltage or current |
| Input Ranges | 0–10V, ±10V, 0–20 mA, 4–20 mA |
| Resolution | 16-bit with moving average filter |
| Accuracy | ±0.1% of full scale at 25°C |
| Power Supply | +5V DC from VME backplane |
| Power Consumption | 5W typical |
| Energy Storage | 680 µF capacitor (holds charge for 50 ms) |
| Component Count | 124 discrete components |
| Isolation | 3 optocouplers for channel-to-backplane isolation |
| Connectors | One DB-37 front panel, one VME P1 backplane |
| LED Indicators | Power (green) and fault (red) |
Functional Features
This GE IS200VAICH1C IS200VAICH1CBA Analog Input VME Card includes a 680 µF energy storage capacitor. The capacitor protects against brief power interruptions during brownouts. Additionally, the board supports hot-swapping when the system allows it. Moreover, diagnostic LEDs show real-time channel status for troubleshooting. You do not need special tools for jumper configuration.
Installation Notes
The module fits any standard 6U VME card slot with a P1 connector. It replaces older revisions like IS200VAICH1A without changing backplane wiring. Always verify jumper settings match your input signal type before powering on.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
