Core Field Wiring Interface for Turbine Control

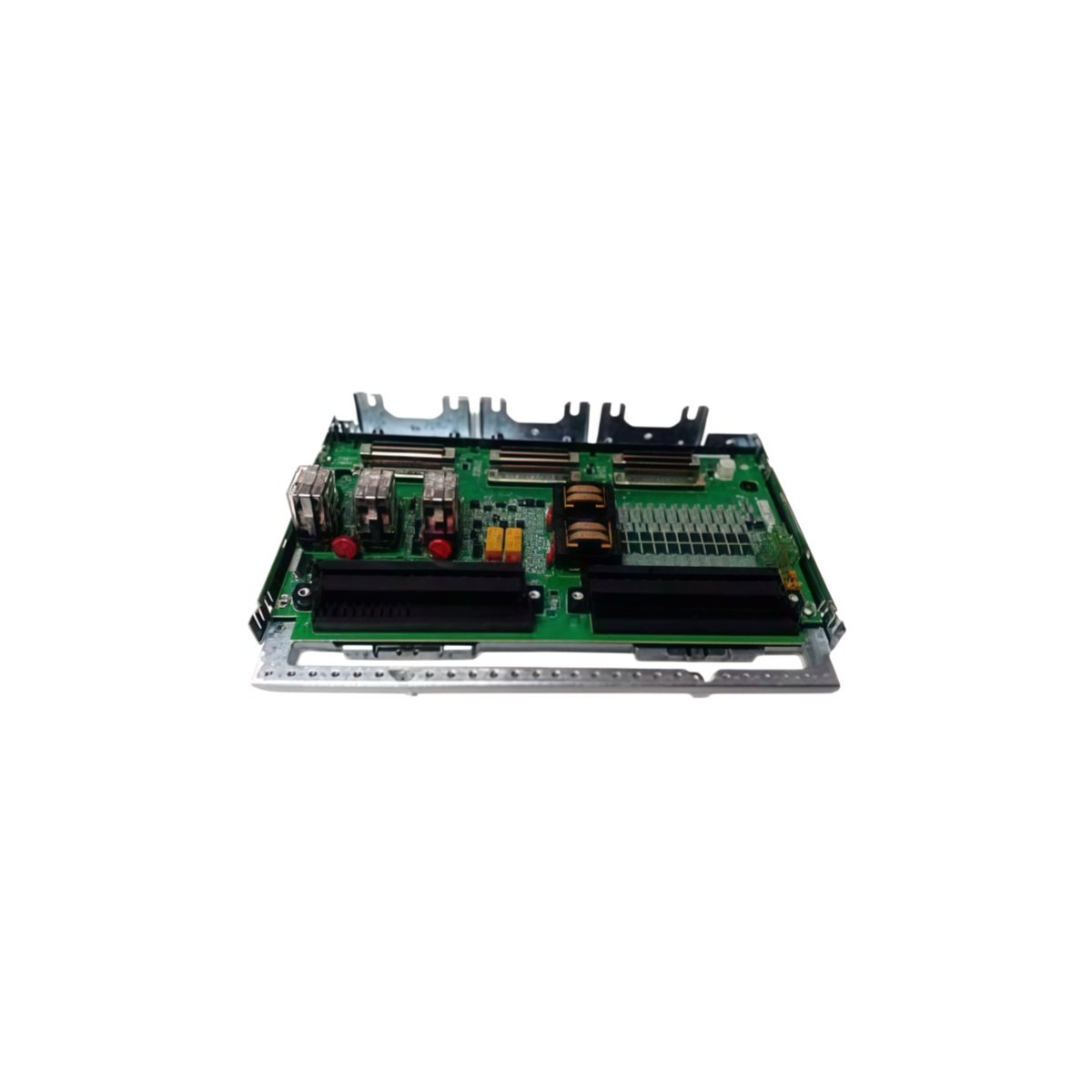

The GE IS200TTURH1CEC is a terminal board for General Electric industrial turbine control systems. This module provides a structured termination point for field wiring from sensors and actuators. It routes signals between field devices and the main control rack components. Consequently, it simplifies installation and maintenance of turbine control cabinets.

Dedicated Termination Channels and Signal Routing

This terminal board features multiple dedicated termination points for discrete inputs, analog signals, and relay outputs. It organizes field wiring in a logical layout that matches the system’s I/O mapping. The IS200TTURH1CEC includes clearly labeled terminal blocks for secure and error-free connections. Furthermore, its design provides surge suppression to protect sensitive control electronics from field transients.

Technical Specifications and Hardware Details

Engineers designed this board for mounting in the designated termination bay of a GE turbine control panel. Its specifications define channel count, signal types, and electrical ratings for each termination point. The following table details its primary functional and identification parameters.

Application in Turbine Cabinet Assembly

System integrators install this board as the primary interface between field wiring and rack-mounted I/O modules. It dramatically reduces cabinet wiring time and improves long-term maintainability. The GE IS200TTURH1CEC is essential for any turbine control panel build or refurbishment project. Therefore, its proper specification ensures reliable signal transmission and easier troubleshooting.
