Product Overview

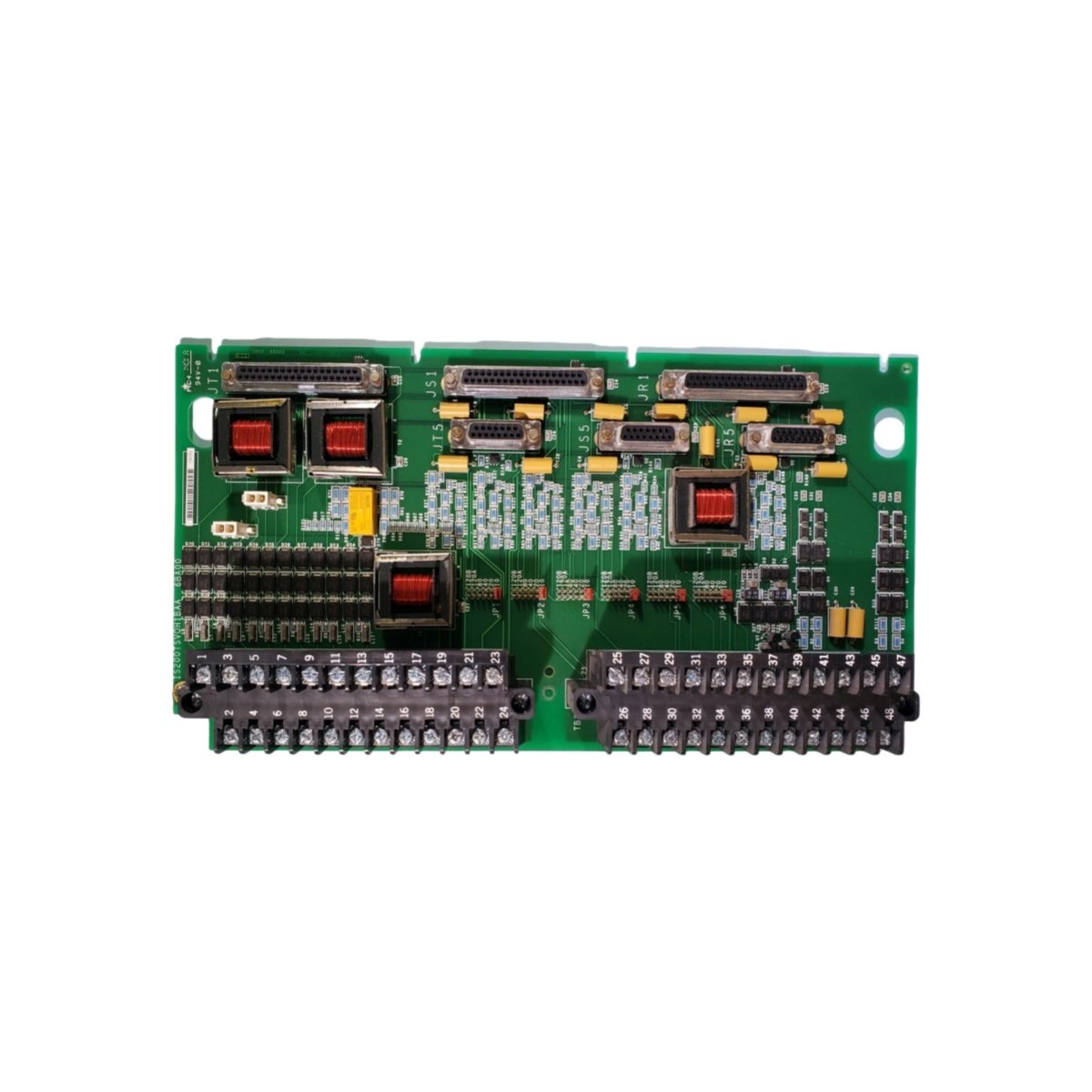

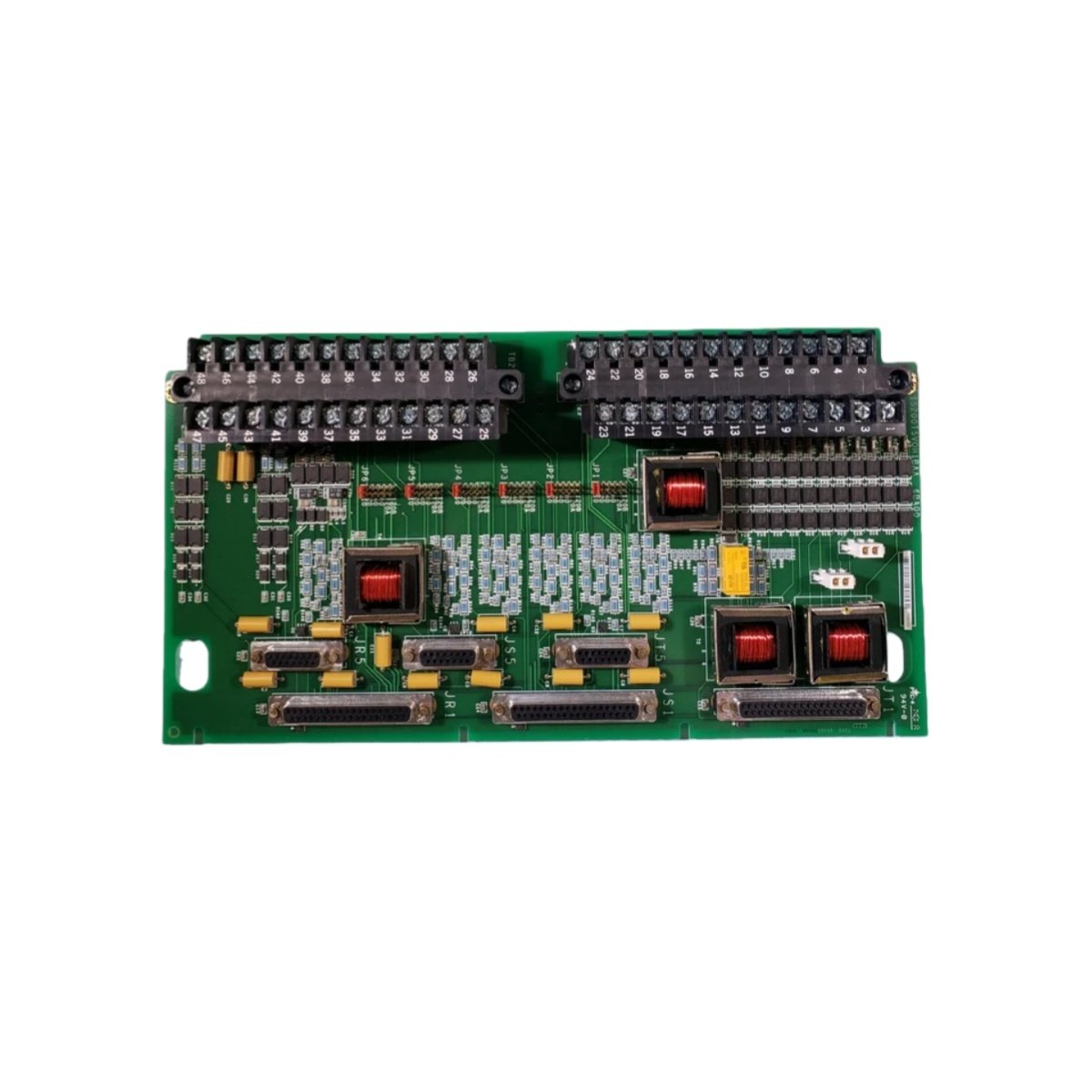

The GE IS200TSVOH1B VME servo control board delivers precise motion control for industrial automation systems. This board forms an integral part of the Mark VIe series, managing servo valve operations with high reliability. It supports complex positioning tasks in turbines and heavy machinery. Engineers will appreciate its robust design for demanding environments.
Technical Specifications
The GE IS200TSVOH1B measures 233.7 mm in length and 160 mm in width. Its standard VME form factor ensures compatibility with existing 6U chassis systems. The board weighs approximately 0.9 kilograms, making it lightweight for easy installation.
| Parameter | Specification |
|---|---|
| Model | IS200TSVOH1B |
| Board Type | VME Servo Control Board |
| Dimensions | 233.7 mm x 160 mm |
| Weight | ~0.9 kg |
| Form Factor | 6U VME |
| Operating Voltage | +5V DC, ±12V DC |
| Current Consumption | 2.5 A (max) at +5V |
| Interface | VMEbus P1/P2 connectors |
| Servo Channels | 4 independent channels |
| Control Algorithm | PID with feedforward |
| On-board Memory | 128 KB SRAM |
| Energy Storage | 47 μF backup capacitor |
| Operating Temp. | 0°C to +60°C |
Key Features and Functionality
This board integrates four independent servo control channels on a single VME card. Each channel processes analog feedback signals with 16-bit resolution. The IS200TSVOH1B utilizes a powerful digital signal processor for real-time loop closure. It stores configuration parameters in its 128 KB SRAM. A 47 μF backup capacitor retains critical settings during short power interruptions. The P1 and P2 VMEbus connectors handle all data and power interfaces. LED indicators provide immediate visual status for each channel. This design simplifies troubleshooting during system commissioning.
Installation and Compatibility
Installing the GE IS200TSVOH1B requires a standard 6U VME chassis with available slots. The board complies with VMEbus Revision C.1 specifications. It operates with +5V DC and ±12V DC power rails. The maximum current draw reaches 2.5 A on the +5V rail. This board interfaces directly with servo valves via differential analog outputs. It supports various feedback devices, including LVDTs and resolvers. The GE IS200TSVOH1B works seamlessly with other Mark VIe components. Proper configuration ensures optimal performance in turbine control applications.
Reliability and Environmental Compliance
The IS200TSVOH1B operates reliably between 0°C and 60°C ambient temperatures. It withstands 5% to 95% non-condensing humidity levels. The board meets industrial emission standards for electromagnetic compatibility. Its rugged construction minimizes vibration-induced failures. This reliability reduces unexpected downtime in critical processes.
Details
| Weight | 0.9 kg |
|---|---|
| Dimensions | 233.7 × 160 × 5 mm |
