Core Monitoring Function for Power Generation

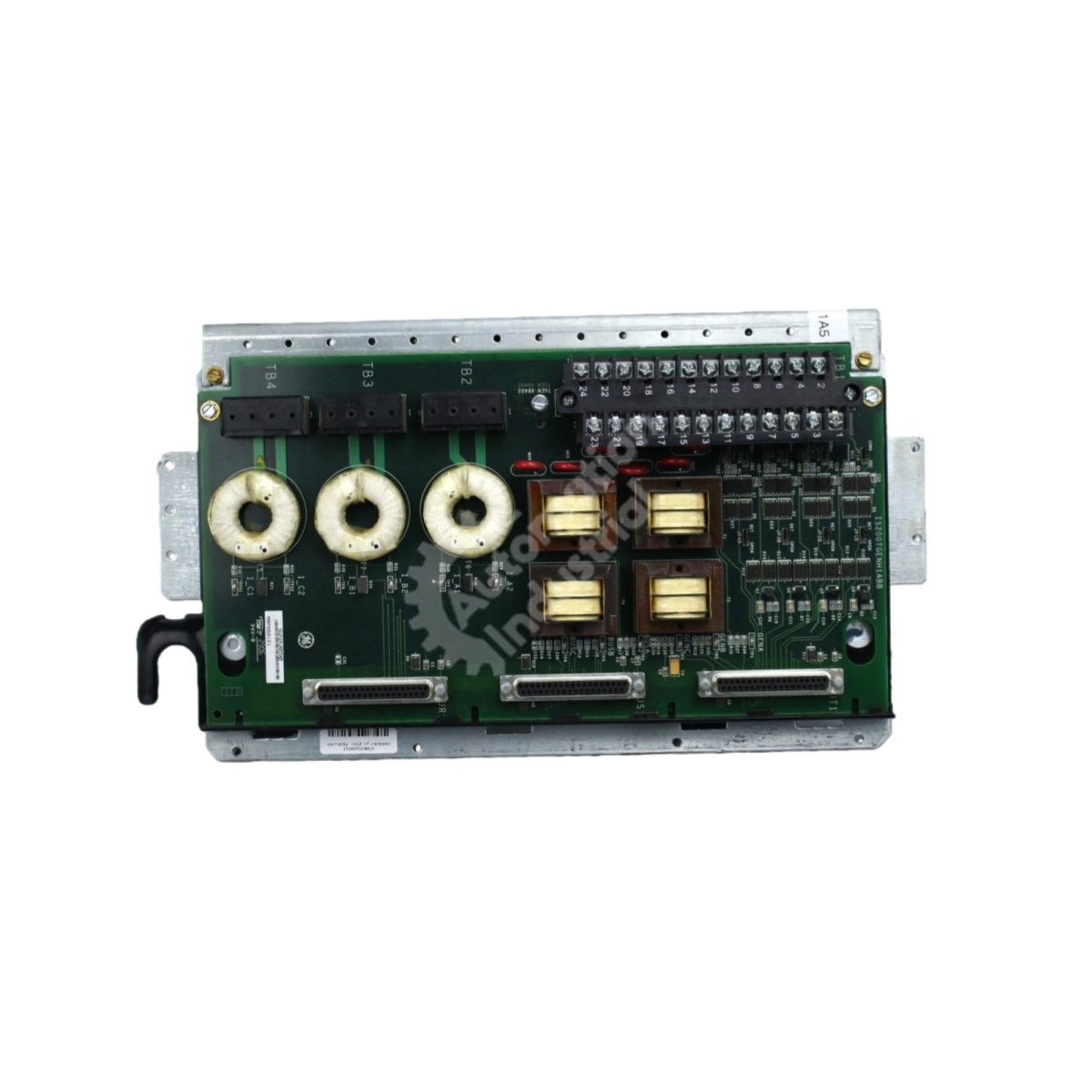

The GE IS200TGENH1A is a Generator Monitor (TGEN) terminal board for the Mark VI and Mark VIe Speedtronic control systems . This module interfaces directly with the VGEN processor to monitor three-phase generator voltages and currents . It calculates essential parameters like real power, reactive power, apparent power, and power factor . Consequently, this terminal board provides the critical electrical data needed for safe and efficient generator operation.
Comprehensive Input Configuration and Protection
The IS200TGENH1A accepts two three-phase PT inputs and three single-phase CT inputs, each with magnetic isolation up to 1500 V RMS . It also includes four configurable analog inputs that support 4-20 mA, ±5 V DC, and ±10 V DC signals . The CT terminations feature non-pluggable terminal blocks with captive lugs to prevent open circuit conditions . Furthermore, this board includes surge suppression, noise filtering, and self-diagnostics for robust system reliability .
Technical Specifications and Physical Attributes
Engineers designed this module for seamless integration into Mark VI VME racks and cabinets. It communicates with the VGEN processor via 37-pin D-Sub cables and supports both simplex and TMR applications . The following table details its key physical and functional parameters.
| Parameter | Specification |
|---|---|
| Manufacturer / Series | GE / Mark VI & Mark VIe |
| Product Model | IS200TGENH1A |
| Voltage Inputs | Two 3-phase PT, 115 VAC RMS nominal |
| Current Inputs | Three 1-phase CT, 0-5 A range |
| Analog Inputs | 4 configurable (4-20 mA, ±5/±10 VDC) |
| Isolation | 1500 V RMS magnetic isolation |
| Communication | Dual 37-pin D-Sub (JR1, JS1, JT1) |
| Terminals | Euro-block (RTD, mA, VAC) and captive lug CT blocks |
| Jumpers | J1A-J4A (I/V select), J1B-J4B (return) |
| ID Device | Read-only EEPROM for serial & revision data |
| Dimensions (L x W x H) | 15.00 x 9.00 x 3.00 inches |
| Weight | 4.00 lbs |
| Operating Temp. | -30°C to +65°C |
| Protection | Surge suppression, noise filtering, diagnostics |
Application in Turbine and Generator Control
Power plant engineers rely on this board for generator monitoring in 9F-class gas turbines, steam turbine EVA/PLU functions, and large LNG compressor sets . The GE IS200TGENH1A enables 5 ms protection trip times for faults like loss-of-field, over-excitation, and reverse power . Therefore, it is a fundamental component for generator protection and lifecycle management in GE turbine systems.
