Core Field Wiring Interface for Analog Signals

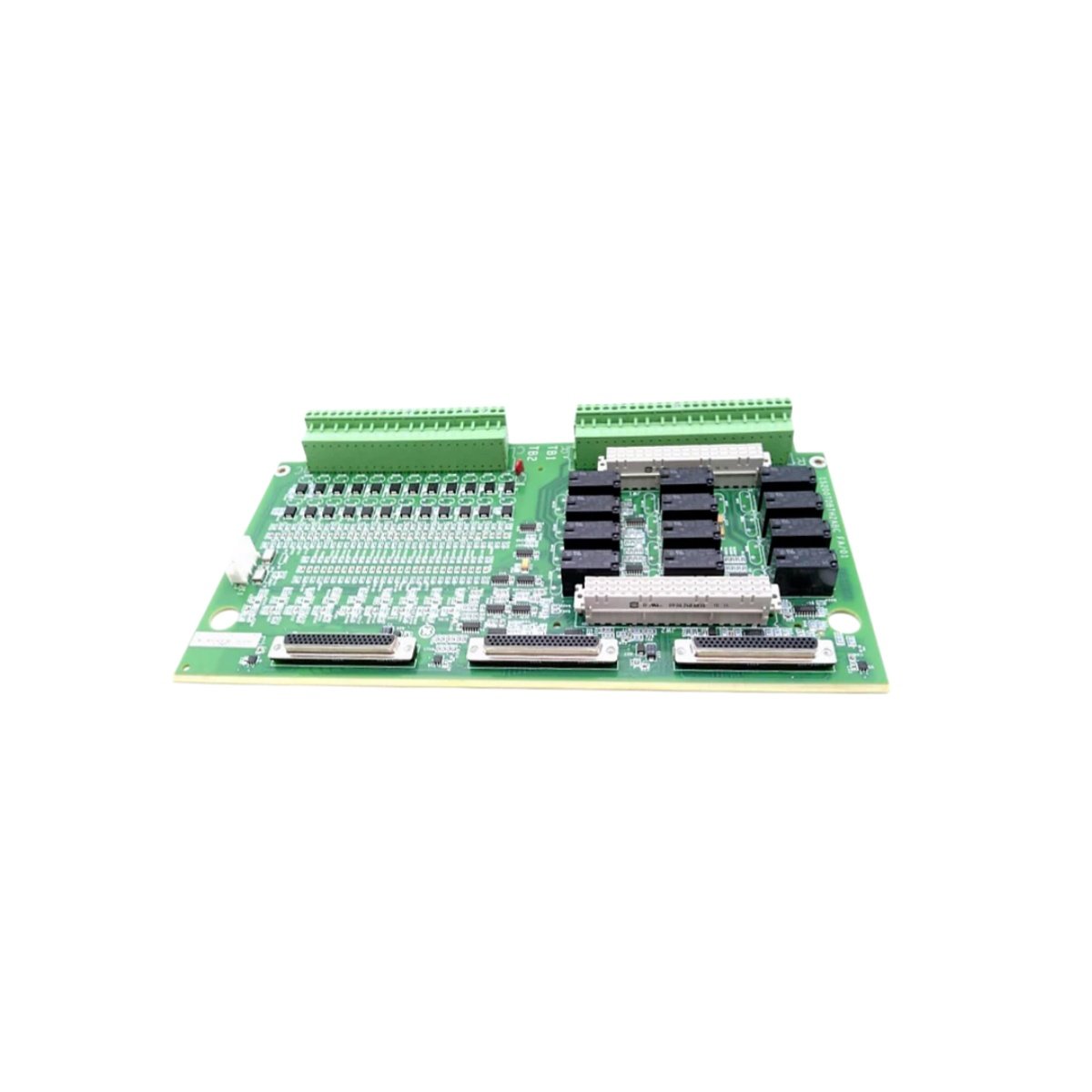

The GE IS200TDBSH2ACC is a simplex analog input/output terminal board for General Electric control systems. This module provides a structured termination point for field wiring from analog sensors and actuators. It conditions incoming signals and directs them to the main processor or I/O modules. Consequently, it ensures clean and reliable signal transmission for precise process control.

Signal Conditioning and Channel Configuration

This terminal board features dedicated channels for both analog inputs and analog outputs in a simplex (non-redundant) configuration. It includes filtering and scaling circuitry to convert raw field signals into usable voltage or current ranges. The IS200TDBSH2ACC provides screw-type terminal blocks for secure and maintainable field wiring connections. Furthermore, its design incorporates transient protection to safeguard sensitive control electronics from electrical noise.

Technical Specifications and Hardware Details

Engineers designed this board for direct mounting within the designated termination bay of a GE cabinet. Its specifications define the number of channels, supported signal types, and electrical ratings. The following table details its primary functional and identification parameters.

Application in Non-Redundant Control Loops

System integrators use this board for standard analog control applications where redundant measurement is not required. It is ideal for temperature monitoring, valve position feedback, and actuator control tasks. The GE IS200TDBSH2ACC simplifies cabinet wiring and improves system maintainability. Therefore, this component is essential for cost-effective analog I/O expansion in industrial control systems.
