Core Signal Interface for Turbine Control

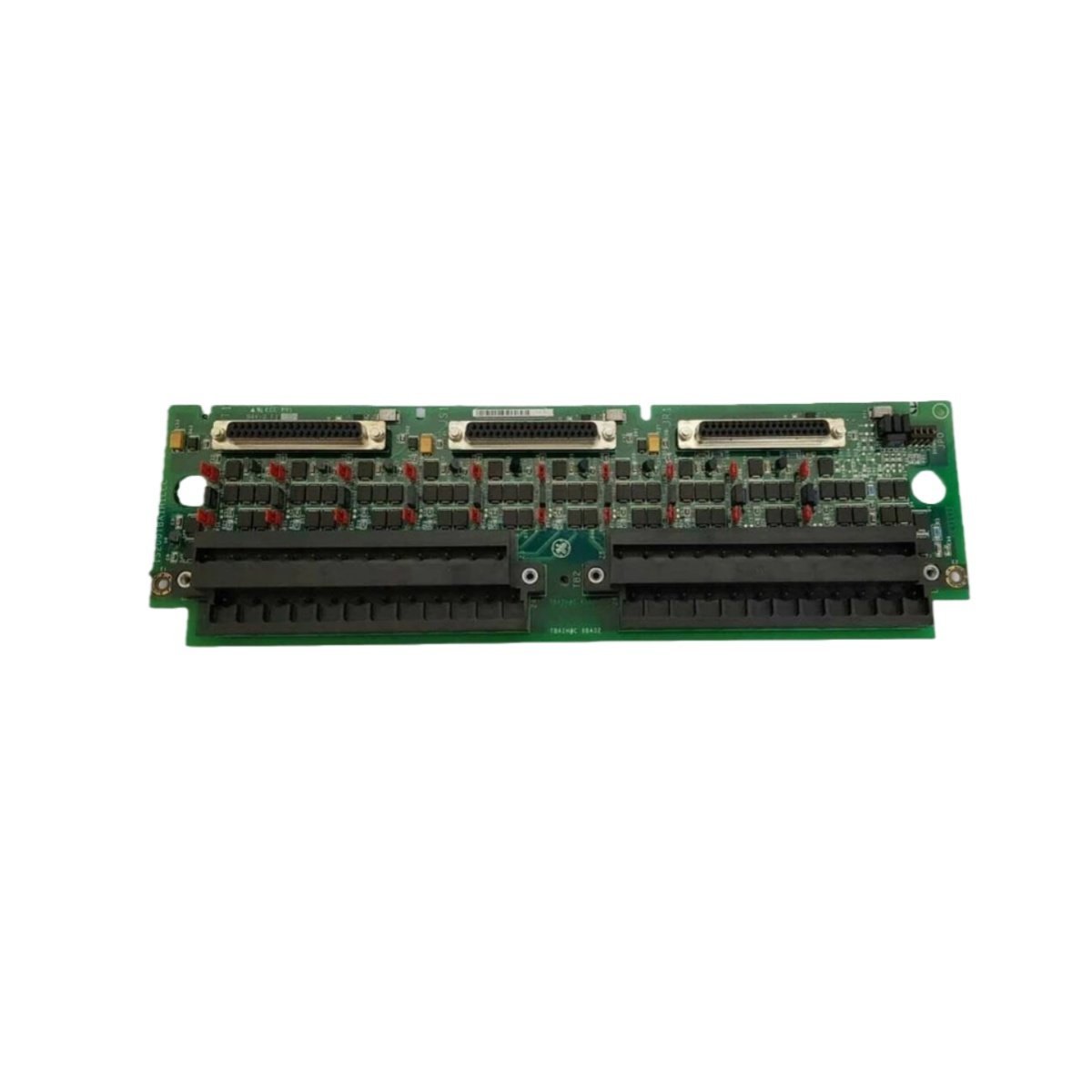

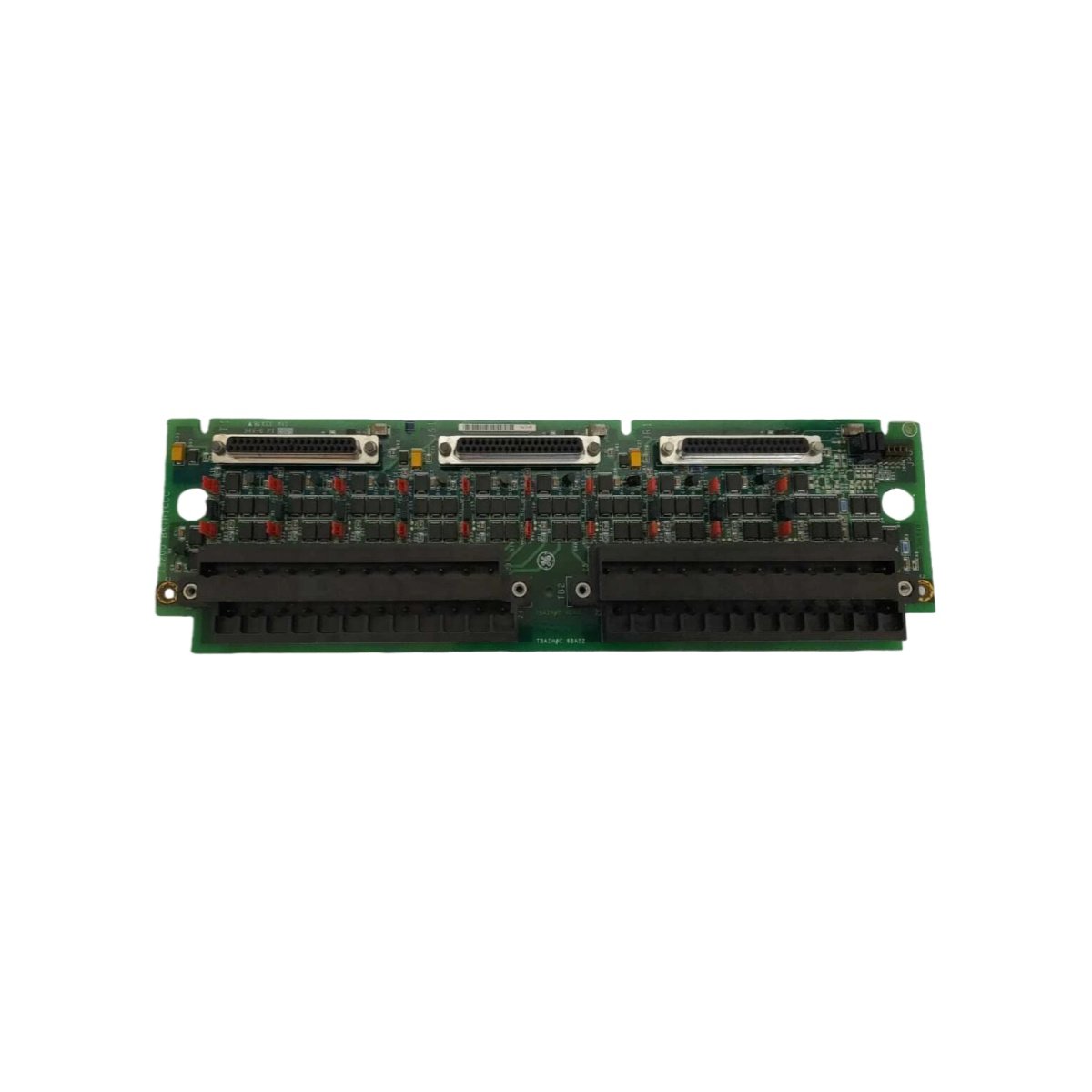

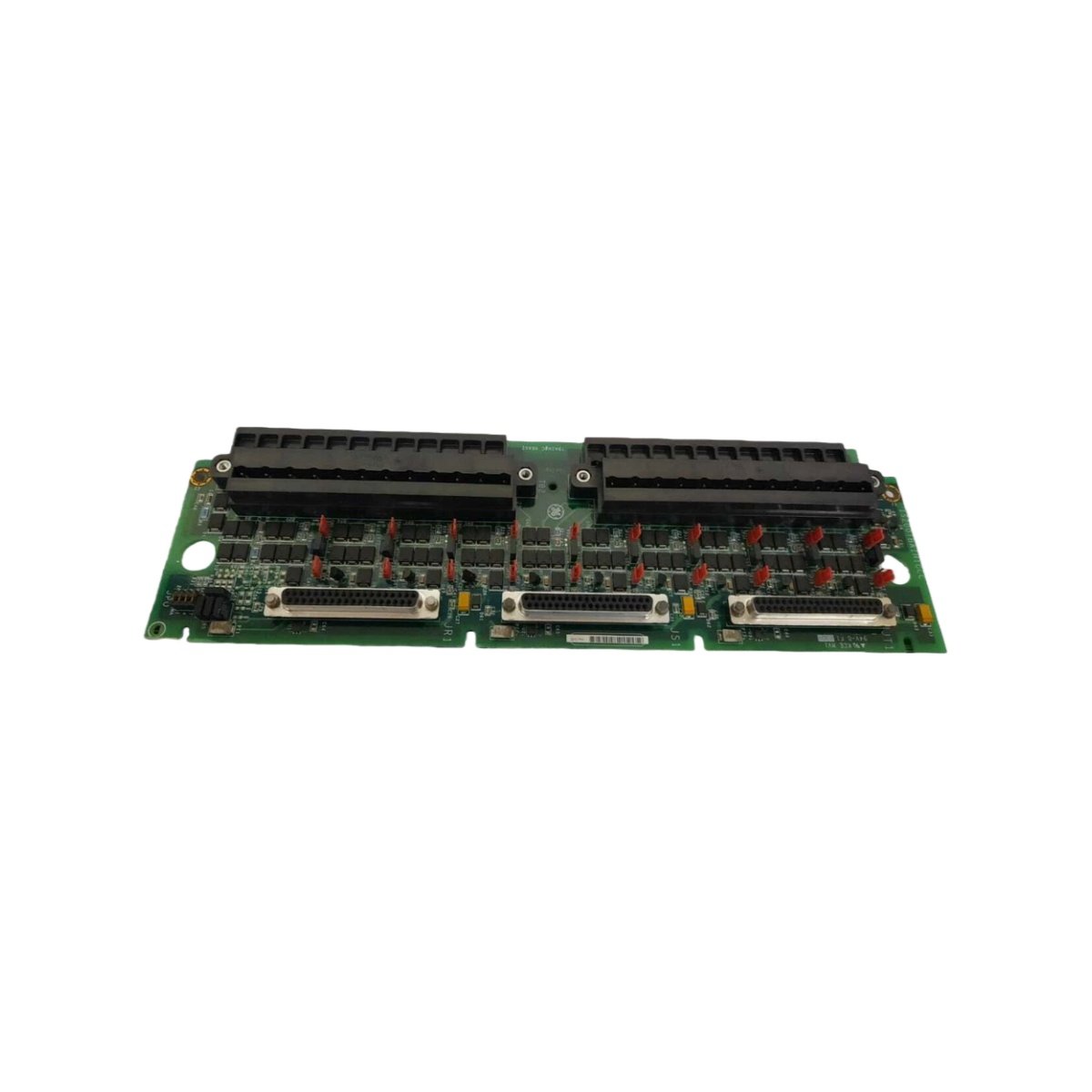

The GE IS200TBAIH1C is an analog input terminal board for the Mark VI Speedtronic turbine control system . This board converts field signals from temperature, pressure, and flow sensors into standardized analog inputs for the main controller . It handles up to 16 differential input channels with flexible configuration options. Consequently, it provides critical data for gas and steam turbine regulation.

High-Precision Signal Conditioning

This board employs a 16-bit analog-to-digital converter with a maximum sampling rate of 2 kHz per channel . It supports six selectable input ranges: 0-5 V, 0-10 V, ±5 V, ±10 V, 0-20 mA, and 4-20 mA . The IS200TBAIH1C achieves ±0.1% full-scale accuracy and features a temperature drift of ≤0.01% per degree Celsius. Furthermore, 1500 VDC photoelectric isolation between the field and system sides effectively blocks ground loops and protects the controller .

Redundancy and Serviceability

This board includes three 37-pin D-sub connectors (JR1, JS1, JT1) for Triple Modular Redundant (TMR) configurations . TMR architecture samples the same signal through three independent channels, ensuring that a single card failure does not compromise protection functions . The IS200TBAIH1C supports online hot-swap replacement, automatically downloading configuration parameters within seconds after installation . The following table summarizes its key specifications.

Application in Heavy-Duty Turbine Environments

System integrators use this board in Mark VI cabinets to acquire critical analog signals from gas and steam turbine sensors. Its high-speed sampling supports load transient response and fast excitation current regulation. The GE IS200TBAIH1C is a fundamental component for the reliable operation of 9E and 9F class gas turbines . Therefore, maintaining a stock of tested units is essential for power generation asset managers.
