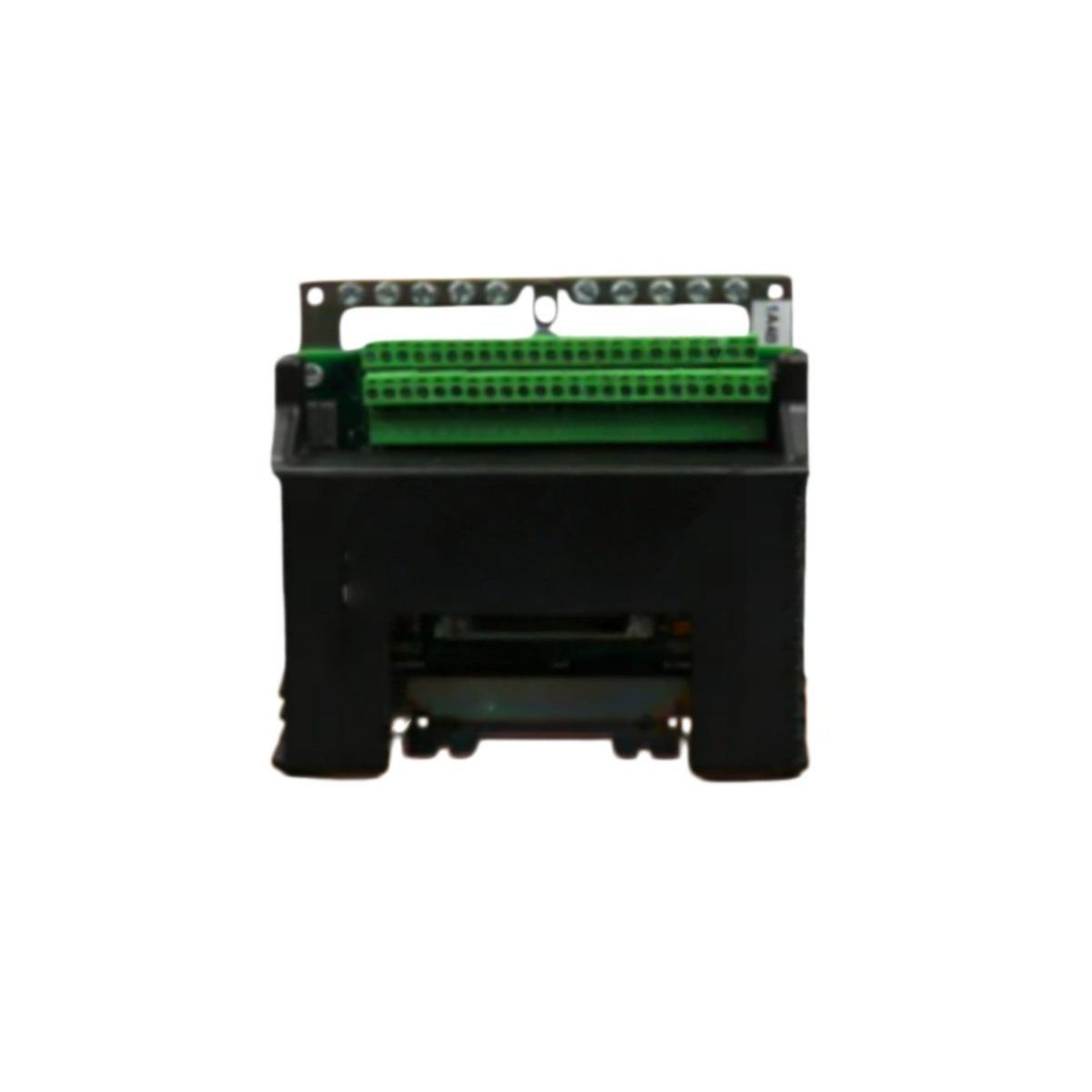

This IS200STAIH2A IS200STAIH2ACB card handles analog input signals with precision. It mounts directly on a standard 35 mm DIN rail. The enhanced IS200STAIH2A IS200STAIH2ACB version includes a factory-applied conformal coating.

Technical Specifications

The IS200STAIH2A IS200STAIH2ACB measures 165 mm in length. Its width reaches 105 mm with a height of 22 mm. This DIN rail card weighs approximately 0.52 kilograms. A single multilayer PCB holds all analog circuitry components.

Design and Energy Storage

This IS200STAIH2A IS200STAIH2ACB stores very little internal electrical energy. Each analog channel provides 1500V galvanic isolation. Conversion times stay under 10 milliseconds for stable readings. Surface-mount components boost reliability in industrial environments. Moreover, the coated IS200STAIH2A IS200STAIH2ACB resists moisture and dust effectively.

Installation and Wiring

You can snap this card onto any standard 35 mm DIN rail. It connects directly to the Mark VIe controller without adapters. A removable terminal block simplifies field wiring tasks significantly. Consequently, you complete the installation within a few minutes. Finally, screw-type terminals secure each wire firmly in place.

Performance and Accuracy

This  consumes only 4.5 watts during operation. Its 16-bit resolution delivers precise measurement of industrial signals. Thus, you get accurate data for turbine control applications. Each analog input withstands up to ±30V continuous overvoltage. The card also includes built-antialiasing filters for each channel.

Typical Applications

Use this for temperature monitoring systems. It also excels at pressure and flow signal conditioning. Many plants select it for vibration monitoring tasks. The compact DIN rail design saves valuable cabinet space effectively. Finally, clear channel labeling reduces wiring errors significantly.
