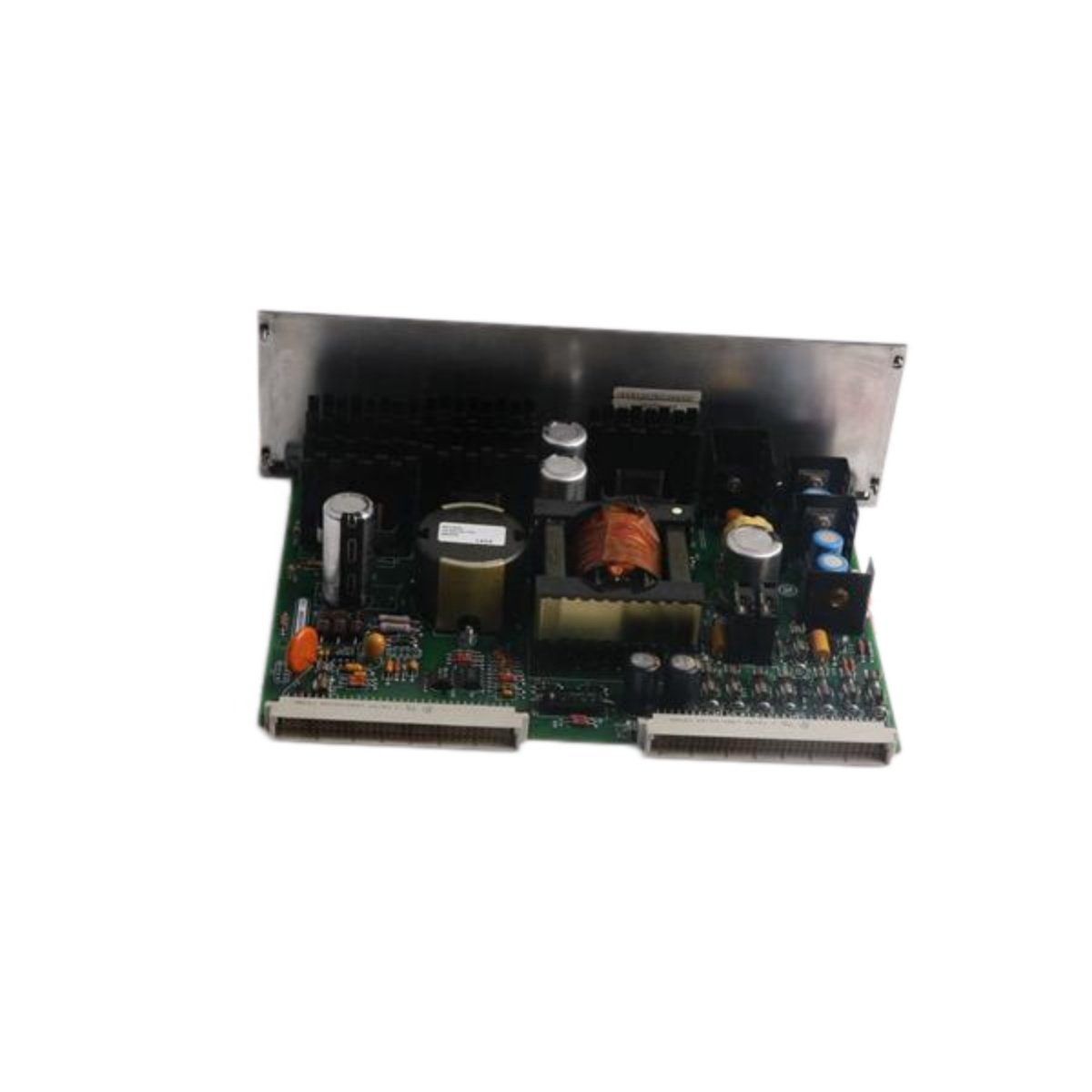

This IS200RAPAG1B IS200RAPAG1BAA board supplies stable power to the Mark VIe rack. It converts incoming AC or DC to multiple output voltages. The enhanced IS200RAPAG1B IS200RAPAG1BAA version includes a factory-applied conformal coating.

Technical Specifications

The IS200RAPAG1B IS200RAPAG1BAA measures 200 mm in length. Its width reaches 150 mm with a height of 40 mm. This power supply board weighs approximately 1.2 kilograms. A single PCB assembly contains all power conversion components.

Design and Energy Storage

This IS200RAPAG1B IS200RAPAG1BAA stores energy in bulk capacitors for hold-up time. It provides 20 milliseconds of ride-through during input interruptions. Switching MOSFETs deliver efficient power conversion with minimal heat. Surface-mount technology boosts reliability in industrial environments. Moreover, the coated IS200RAPAG1B IS200RAPAG1BAA resists moisture and dust effectively.

Installation and Cooling

You can mount this board directly into the Mark VIe rack slot. It plugs into the backplane without any wiring hassle. A built-in fan provides forced air cooling for high loads. Consequently, you get reliable operation even at elevated temperatures. Finally, the metal faceplate includes an LED status indicator.

Performance and Protection

This  consumes no load power when idle. Its overvoltage protection shuts down outputs above safe limits. Thus, you get safe operation for sensitive downstream boards. Each output includes short-circuit and overcurrent protection. The board also features input surge suppression up to 2kV.

Typical Applications

Use this for powering turbine control racks. It also excels at supplying generator excitation systems. Many plants select it for Mark VIe I/O expansion racks. The compact board design saves valuable panel space effectively. Finally, the hot-swappable design allows replacement without system shutdown.
