Core Power Management for Mark VI Systems

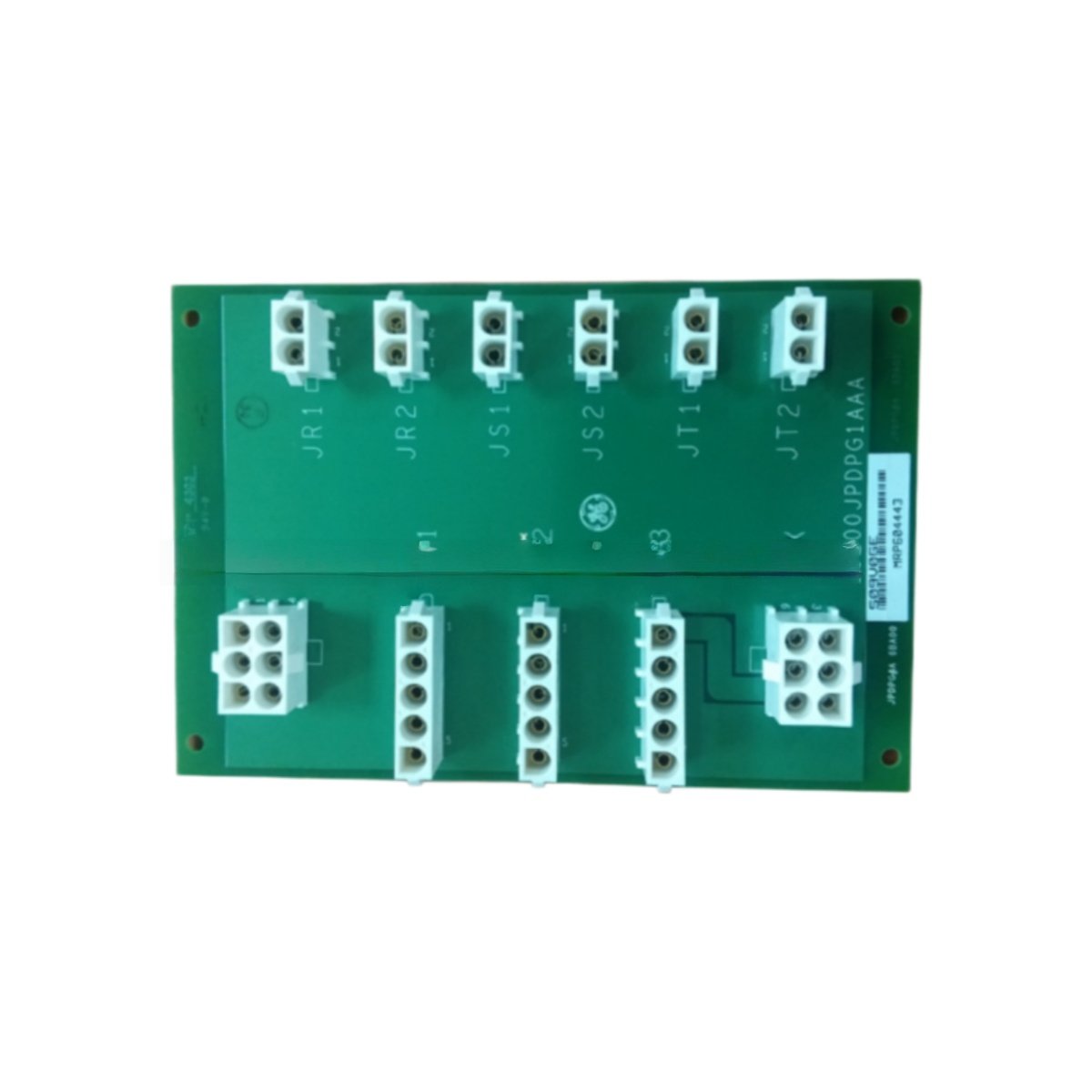

The GE IS200JPDPG1AAA is a Local Power Distribution Board for the Mark VI Turbine Control System. This module distributes properly regulated DC power to various I/O and control boards within the rack. It receives raw input power from the main supply and routes it through individual fuses or circuit breakers. Consequently, it ensures each downstream module receives clean, protected power for reliable operation.

Fused Outputs and Voltage Regulation

This distribution board features multiple fused output channels to protect connected modules from overcurrent faults. It includes onboard voltage regulation circuits to maintain stable power levels despite input fluctuations. The IS200JPDPG1AAA provides dedicated power connections for critical circuits like analog inputs, discrete I/O, and communication interfaces. Furthermore, its design includes status indicators to show the health of each power output channel.

Technical Specifications and Hardware Details

Engineers designed this board for direct mounting within the Mark VI rack adjacent to the main power supply unit. Its specifications define input voltage range, output channel count, and individual channel current ratings. The following table details its primary functional and identification parameters.

Application in Control Cabinet Power Architecture

System integrators use this board to simplify power wiring and improve fault isolation within the control cabinet. It eliminates the need for external distribution terminals, saving valuable panel space. The GE IS200JPDPG1AAA is essential for maintaining organized and serviceable power distribution in Mark VI systems. Therefore, its proper function directly impacts the reliability of all connected I/O and control modules
