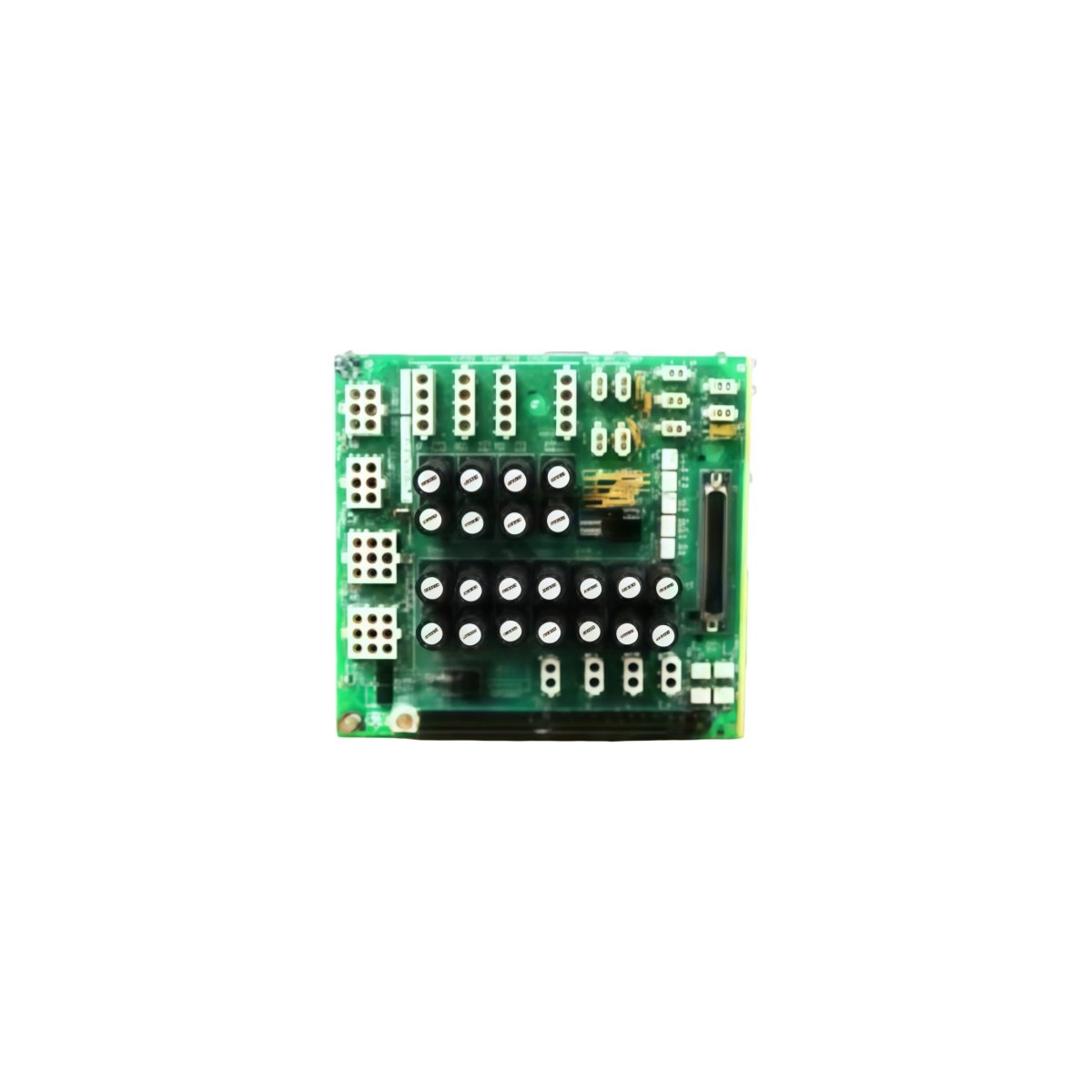

The GE IS200JPDGH1A IS200JPDGH1ABD distributes DC power to multiple modules in a Mark VI rack. This board accepts a single high-voltage input and routes it to several outputs. It weighs approximately 1.05 kg and mounts vertically inside the control cabinet. Its dimensions measure 30.5 cm in length, 15.2 cm in width, and 2.5 cm in height.
Technical Specifications & Hardware Details
The GE IS200JPDGH1A IS200JPDGH1ABD features one main input terminal block for the primary power source. Seven output connectors then distribute power to downstream boards. This board stores no energy internally because it contains no batteries. Four main components form the complete assembly: the PCB, the input block, the output terminals, and the fuse holder.
| Parameter | Specification |
|---|---|
| Product Model | GE IS200JPDGH1A IS200JPDGH1ABD |
| Weight | 1.05 kg (2.31 lbs) |
| Dimensions (L×W×H) | 30.5 cm × 15.2 cm × 2.5 cm |
| Number of Components | 4 assemblies (PCB, input block, output terminals, fuse holder) |
| Input Voltage | 250V DC (nominal) |
| Input Terminals | Single 2-position screw block |
| Output Connectors | 7 × 2-position terminal blocks |
| Maximum Current | 20A total continuous |
| Fuse Protection | One 20A fast-blow fuse on input |
| Energy Storage | None (fully passive design) |
| Mounting Type | Four M4 screws on metal standoffs |
Power Distribution and Circuit Protection
You can connect the main 250V DC supply to the input block of the GE IS200JPDGH1A IS200JPDGH1ABD. The onboard fuse then protects all seven output circuits from short circuits. For proper system operation, balance loads across available outputs whenever possible. The PCB features heavy copper traces to handle the full 20A rating safely.
Installation and Environmental Ratings
You can install this distribution board into any Mark VI or Mark VIe cabinet. The board operates reliably within a -30°C to 65°C temperature range. Furthermore, it withstands 5g vibration from 10 to 55 Hz. Consequently, the GE IS200JPDGH1A IS200JPDGH1ABD requires no maintenance beyond periodic fuse checks. Just verify input voltage levels during routine system inspections.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
