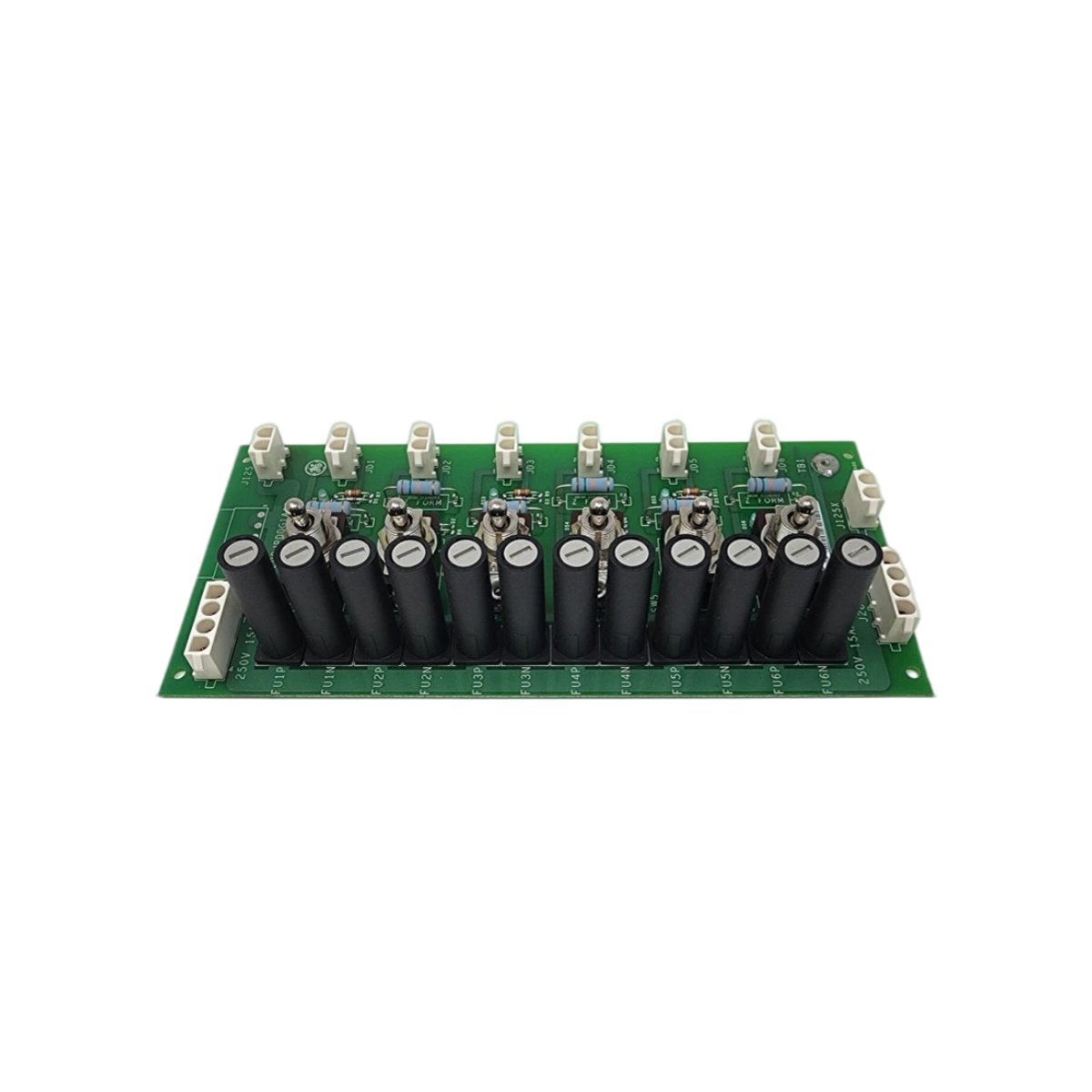

The GE IS200JPDDG1A IS200JPDDG1AAA distributes DC power to multiple modules within a Mark VI rack. This board accepts a single input and provides several output connections. It weighs approximately 0.95 kg and mounts vertically inside the control cabinet. Its dimensions measure 30.5 cm in length, 15.2 cm in width, and 2.5 cm in height.
Technical Specifications & Hardware Details
The IS200JPDDG1A features one main input terminal block for the primary power source. Six output connectors then distribute power to downstream modules. This board stores no energy internally because it contains no capacitors or batteries. Three main components form the complete assembly: the PCB, the input terminal block, and the output connectors.
| Parameter | Specification |
|---|---|
| Product Model | IS200JPDDG1A IS200JPDDG1AAA |
| Weight | 0.95 kg (2.09 lbs) |
| Dimensions (L×W×H) | 30.5 cm × 15.2 cm × 2.5 cm |
| Number of Components | 3 assemblies (PCB, input block, output connectors) |
| Input Voltage | 125V DC or 250V DC (nominal) |
| Input Terminals | Single 2-position screw block |
| Output Connectors | 6 × 2-position terminal blocks |
| Maximum Current | 10A total continuous |
| Fuse Protection | One 10A slow-blow fuse on input |
| Energy Storage | None (fully passive) |
| Mounting Type | Four M4 screws on standoffs |
Power Distribution and Protection
You can connect the main DC supply to the input block of the IS200JPDDG1A. The onboard fuse then protects all downstream circuits from overcurrent conditions. For proper operation, never exceed the 10A total current rating. The PCB includes wide copper traces to minimize voltage drop across the board.
Installation and Maintenance Requirements
You can install this distribution board in any Mark VI cabinet with available mounting holes. The board operates reliably within a -30°C to 65°C temperature range. Furthermore, it withstands 5g vibration from 10 to 55 Hz. Consequently, the IS200JPDDG1A requires no maintenance beyond fuse replacement. Just check the fuse continuity during routine system inspections.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
