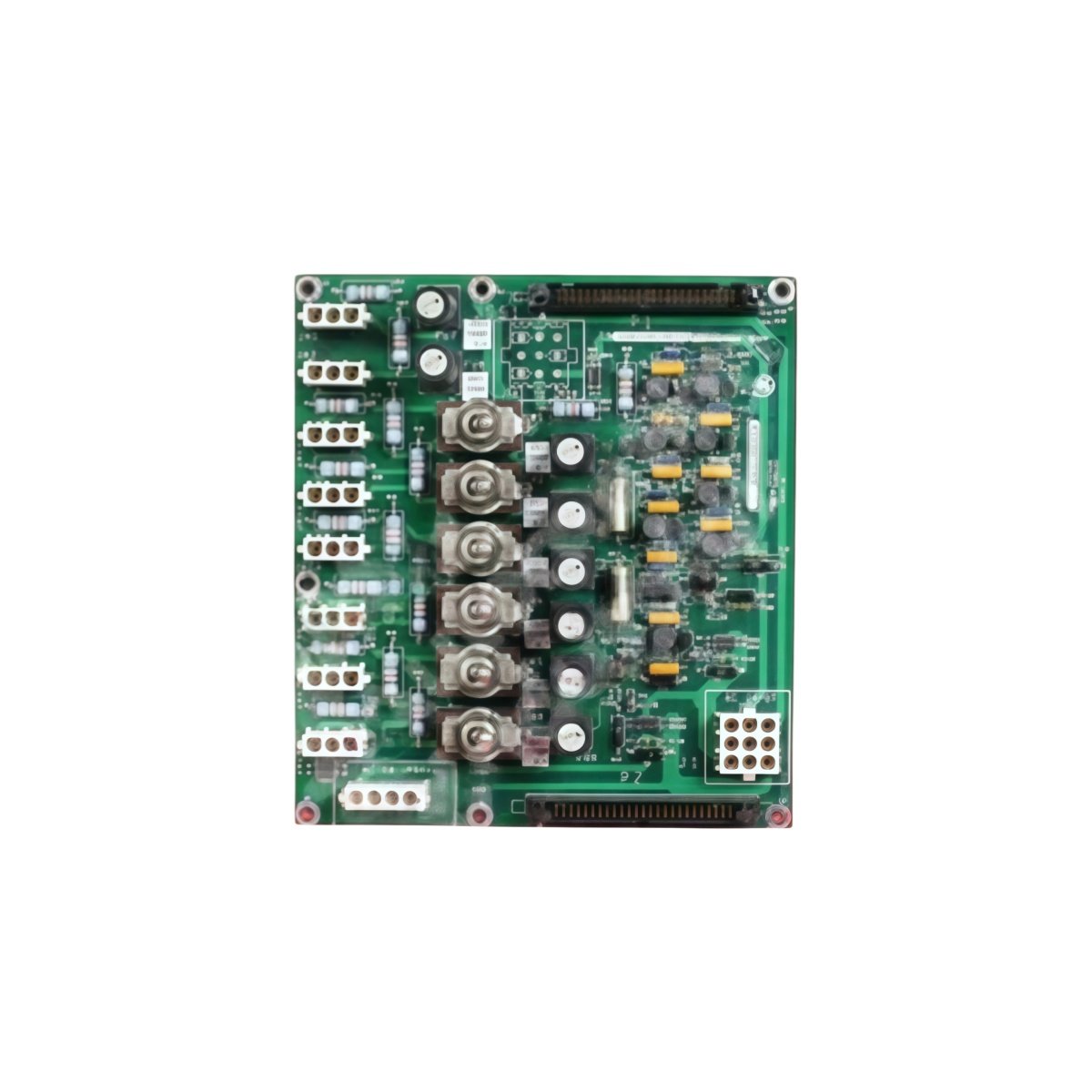

The GE IS200JPDBG1A IS200JPDBG1ABA Printed Circuit Board distributes power within Mark VI turbine control systems. You will find this board in generator excitation panels and industrial drive cabinets. It provides reliable power routing to multiple I/O cards in the rack.
Technical Specifications
The GE IS200JPDBG1A IS200JPDBG1ABA Printed Circuit Board carries its revision code on the bottom edge. This board measures 267 mm in length and 152 mm in width. Its total thickness reaches 20 mm including component height. The card weighs approximately 0.55 kg (1.21 lbs). Transition words like first and next help explain its power distribution. First, the board receives DC power through the P1 backplane connector. Next, it routes this power through multiple fuse-protected circuits. Finally, each output supplies a different I/O card in the system.
Hardware Parameters
The table below lists all critical technical details for this module.
| Parameter | Value |
|---|---|
| Full Model | GE IS200JPDBG1A IS200JPDBG1ABA |
| Category | Power Distribution PCB |
| Dimensions | 267 mm x 152 mm x 20 mm |
| Weight | 0.55 kg (1.21 lbs) |
| Input Voltage | +24V DC and +5V DC from backplane |
| Output Channels | 8 fused power outputs |
| Fuse Ratings | 2A, 5A, and 10A (user-configurable) |
| Interface Connectors | P1 backplane, 4 auxiliary headers |
| Component Count | 103 discrete components |
| Energy Storage | 5600 µF bulk capacitor bank |
| Power Rating | 75W maximum total |
| Operating Temp | -30°C to +70°C |
| LED Indicators | 8 red LEDs (one per output fuse status) |
Functional Features
The GE IS200JPDBG1A IS200JPDBG1ABA Printed Circuit Board includes a 5600 µF capacitor bank for bulk energy storage. This capacitor array provides 200 ms of hold-up during brownouts. Additionally, each output has a replaceable fuse for easy maintenance. Moreover, gold-plated edge fingers ensure reliable backplane connections. You can monitor fuse status directly through the front-panel LED array.
Installation and Compatibility
This board replaces older revisions like IS200JPDBG1A without configuration changes. Always verify fuse ratings match your system requirements before installation. The GE IS200JPDBG1A IS200JPDBG1ABA Printed Circuit Board sits in a dedicated slot near the power supply. Do not insert this card into a general-purpose I/O slot.
