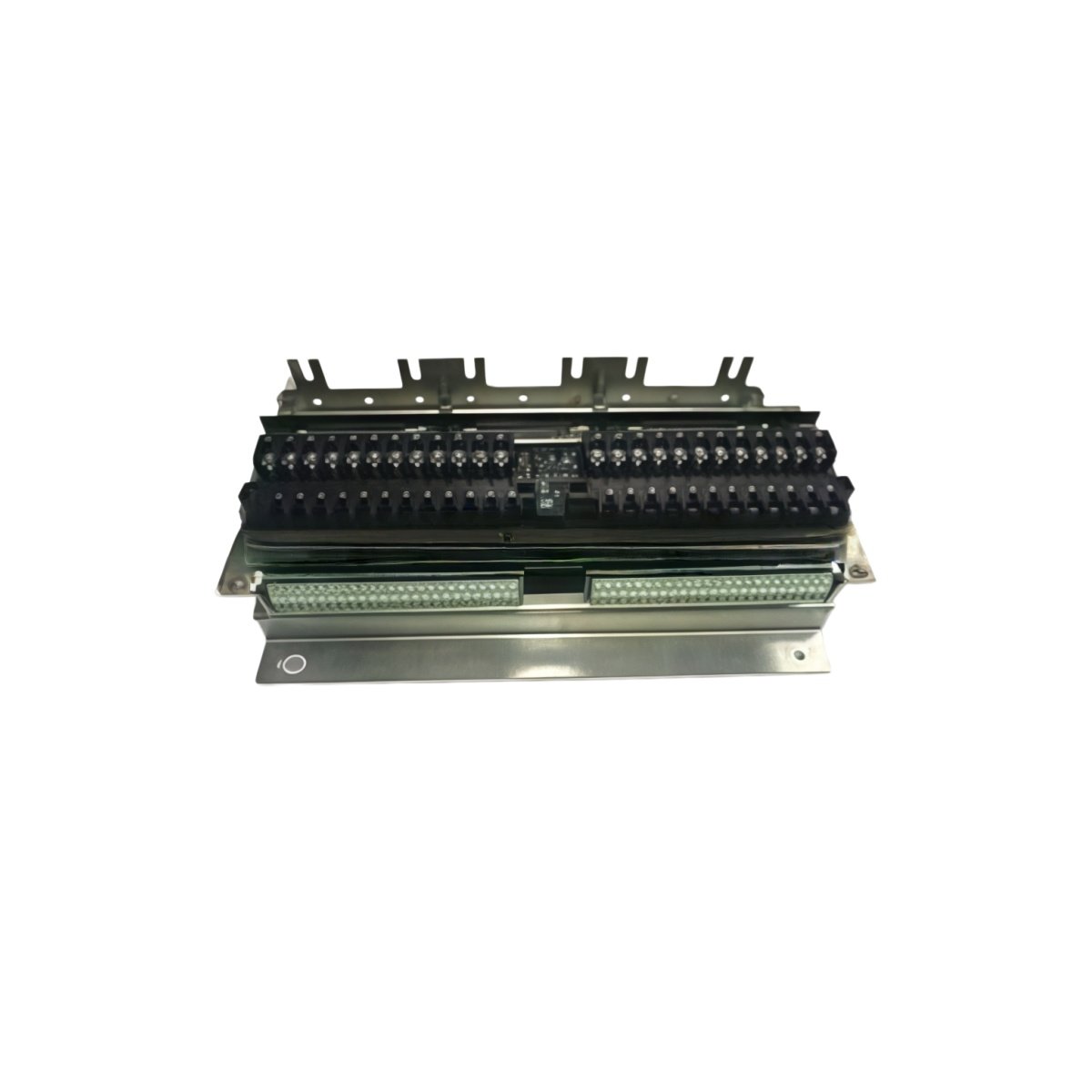

The GE IS200JPDAG1A IS200JPDAG1ABB distributes control power to various modules within a Mark VI system. This board accepts AC or DC input and routes it to multiple outputs. It weighs approximately 0.98 kg and mounts vertically inside the cabinet. Its dimensions measure 30.5 cm in length, 15.2 cm in width, and 2.5 cm in height.
Technical Specifications & Hardware Details
The GE IS200JPDAG1A IS200JPDAG1ABB features one primary input terminal block for the main power source. Five output connectors then distribute power to downstream boards. This board stores no energy internally because it contains no batteries. Four main components form the complete assembly: the PCB, the input block, the output terminals, and the fuse holder.
| Parameter | Specification |
|---|---|
| Product Model | GE IS200JPDAG1A IS200JPDAG1ABB |
| Weight | 0.98 kg (2.16 lbs) |
| Dimensions (L×W×H) | 30.5 cm × 15.2 cm × 2.5 cm |
| Number of Components | 4 assemblies (PCB, input block, output terminals, fuse holder) |
| Input Voltage | 120V AC or 125V DC (nominal) |
| Input Terminals | Single 3-position screw block |
| Output Connectors | 5 × 2-position terminal blocks |
| Maximum Current | 15A total continuous |
| Fuse Protection | One 15A slow-blow fuse on input |
| Energy Storage | None (fully passive design) |
| Mounting Type | Four M4 screws on metal standoffs |
Power Routing and Circuit Protection
You can connect either AC or DC supply to the input block of the GE IS200JPDAG1A IS200JPDAG1ABB. The onboard fuse then protects all five output circuits from overload conditions. For proper system operation, distribute loads evenly across available outputs. The PCB uses heavy copper traces to handle the full 15A rating safely.
Installation and Environmental Ratings
You can install this distribution board into any Mark VI or Mark VIe cabinet. The board operates reliably within a -30°C to 65°C temperature range. Furthermore, it withstands 5g vibration from 10 to 55 Hz. Consequently, the GE IS200JPDAG1A IS200JPDAG1ABB requires no maintenance beyond periodic fuse checks. Just verify input voltage levels during routine system inspections.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
