Precision Switching for High-Power Inverters

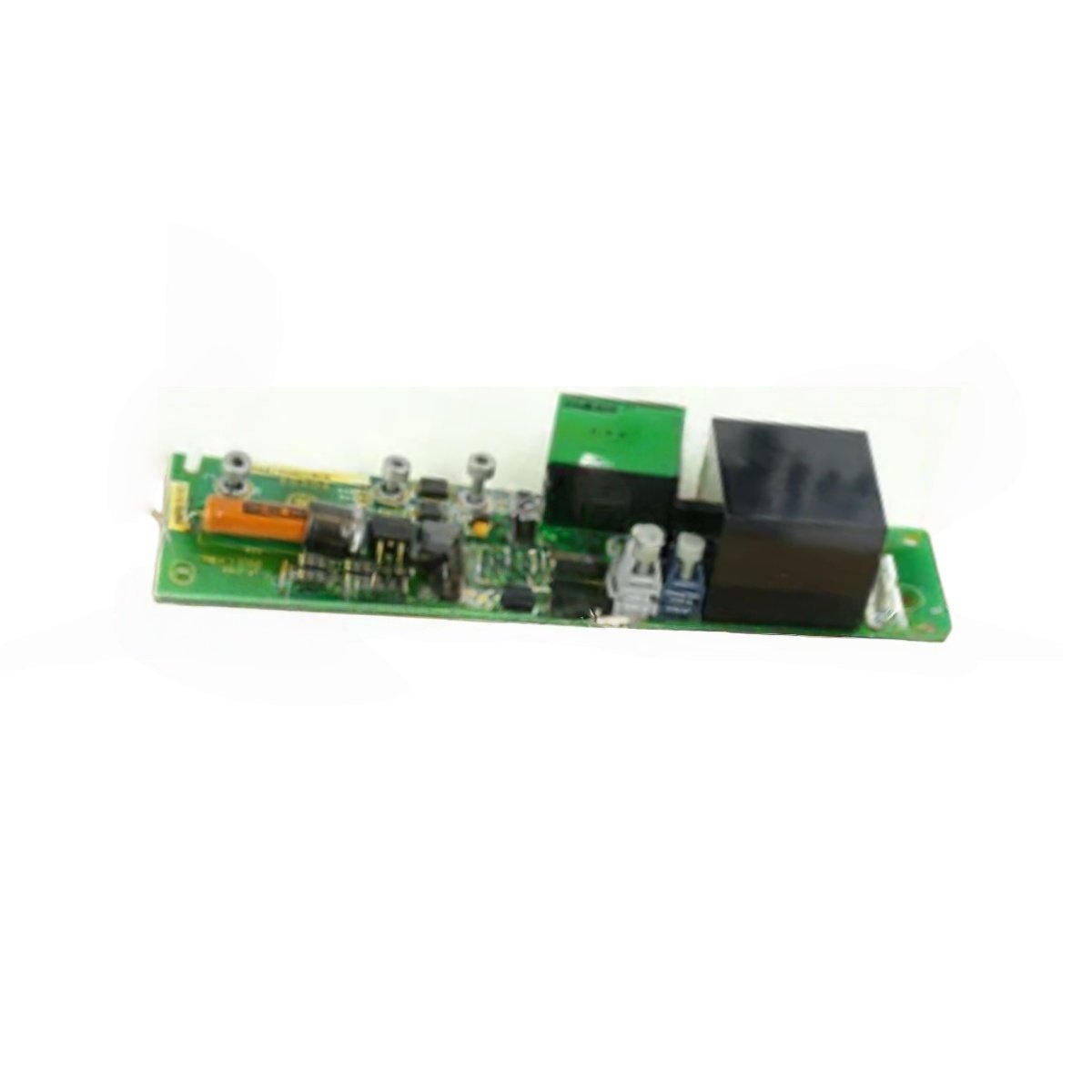

The GE IS200IGDMH1B IS200IGDMH1BCB IGBT Gate Driver Board manages the on-off timing for insulated gate  transistors. This board amplifies low-voltage control signals from the main processor. Therefore, you can achieve precise power switching in variable frequency drives.

Physical Dimensions and Weight Details

This gate driver board measures 18.3 cm in length and 12.7 cm in width. Its total height reaches only 3.2 cm including component protrusions. The GE IS200IGDMH1B IS200IGDMH1BCB IGBT Gate Driver Board weighs exactly 0.41 kilograms. This moderate weight provides stability during high-vibration operation.

Connector Interfaces and Component Count

You will find one 34-pin ribbon connector on the control side. The GE IS200IGDMH1B IS200IGDMH1BCB IGBT Gate Driver Board also features six discrete fiber optic input ports. These ports receive PWM signals from the isolated control board. Inside the board, a single 10-layer PCB holds one hundred forty-seven discrete components. These components include gate drive transformers, resistors, and protection diodes.

Energy Storage and Power Architecture

This driver board stores minimal energy using only ceramic capacitors. It draws primary power from a separate 24V DC supply rail. The GE IS200IGDMH1B IS200IGDMH1BCB IGBT Gate Driver Board consumes approximately 8.5 watts during normal switching. For transient protection, small capacitor banks handle brief voltage spikes.

Output Characteristics and Protection Features

Six independent gate drive channels support up to 1200V IGBT modules. Each channel delivers 4 amps of peak gate current for fast switching. The GE IS200IGDMH1B IS200IGDMH1BCB IGBT Gate Driver Board includes desaturation detection on every channel. This detection prevents short circuits from damaging your power transistors.

Environmental Tolerance and Reliability Data

You can operate this board reliably from -10°C to +55°C ambient temperature. The module also withstands 10% to 90% humidity without any condensation. For long-term use, the fiber optic ports support over 50,000 connection cycles.

Key Technical Data (List Format)

• Full Product Name: GE IS200IGDMH1B IS200IGDMH1BCB IGBT Gate Driver Board

• Product Weight: 0.41 kg (0.90 lbs)

• Physical Dimensions: 18.3 cm (L) x 12.7 cm (W) x 3.2 cm (H)

• Interface Type: One 34-pin ribbon connector + six fiber optic ports

• Internal Components: One 10-layer PCB + 147 discrete components

• Energy Storage: Ceramic capacitors only (no batteries)

• Power Consumption: 8.5 watts (from 24V DC external supply)

• Gate Drive Channels: 6 independent channels

• Peak Output Current: 4 amps per channel

• Voltage Rating: Supports up to 1200V IGBT modules

• Protection Features: Desaturation detection on each channel

• Operating Temperature: -10°C to +55°C
