Core Analog Interface for Mark VIe Control Systems

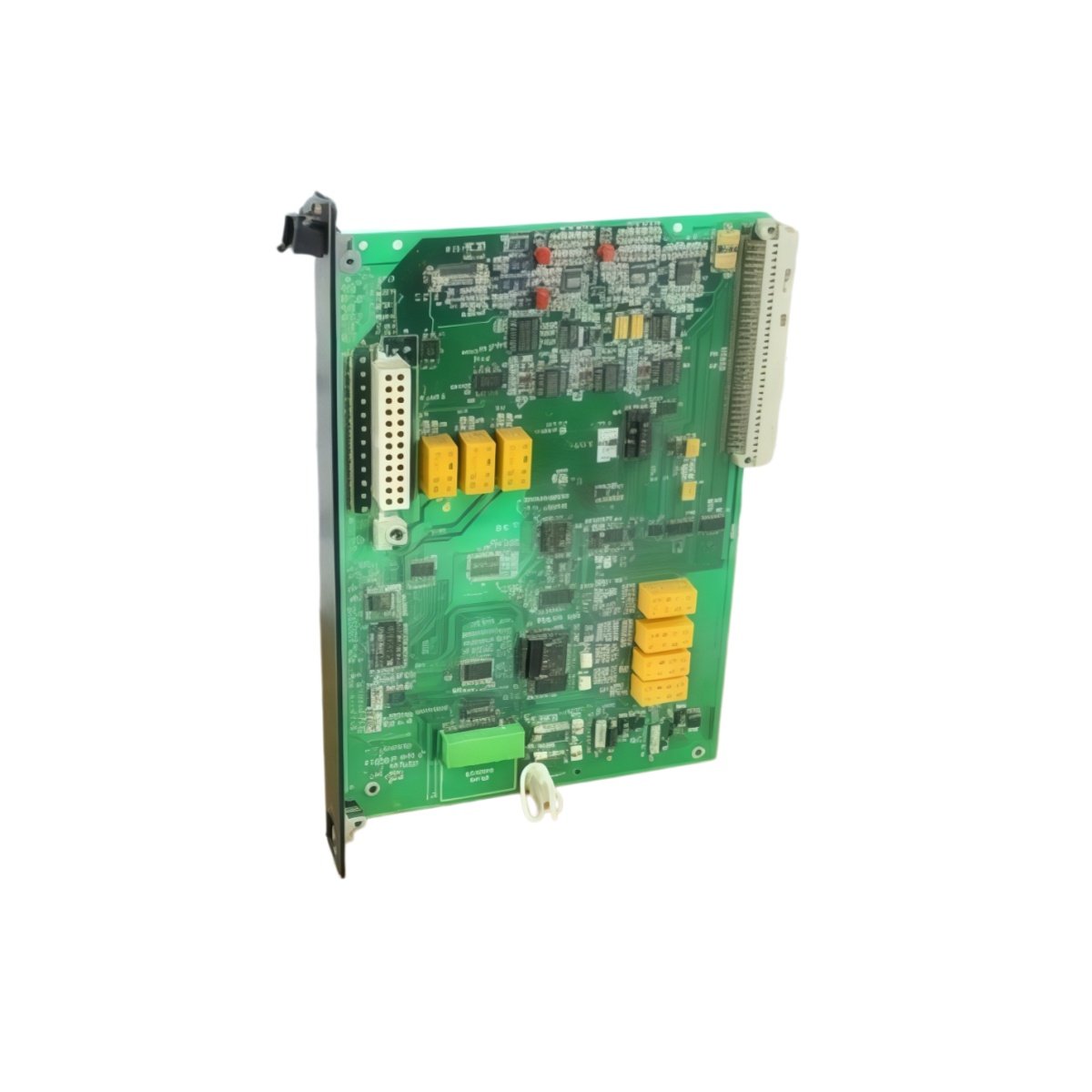

The GE IS200ICIAH2A IS200ICIAH2AAB Printed Circuit Board handles analog input and output signals for turbine control. This module provides signal conditioning for multiple sensor types. Therefore, you can connect thermocouples, RTDs, and 4-20mA transmitters directly to this board.

Physical Dimensions and Weight Details

This printed circuit board measures 26.9 cm in length and 15.2 cm in width. Its total height reaches only 2.8 cm including component tops. The GE IS200ICIAH2A IS200ICIAH2AAB Printed Circuit Board weighs exactly 0.47 kilograms. This weight distributes evenly across the VME backplane connectors.

Connector Interfaces and Component Count

You will find one 48-pin female VME connector on the rear edge. The GE IS200ICIAH2A IS200ICIAH2AAB Printed Circuit Board also features three 20-pin terminal blocks for field wiring. These terminal blocks accept 14 to 22 AWG copper wires easily. Inside the board, a single 12-layer PCB holds two hundred thirty-six discrete components. These components include precision resistors, operational amplifiers, and isolation capacitors.

Energy Storage and Power Characteristics

This analog board stores minimal energy using small filter capacitors only. It draws operational power from both 5V and 24V VME backplane rails. The GE IS200ICIAH2A IS200ICIAH2AAB Printed Circuit Board consumes approximately 7.2 watts during normal operation. Consequently, you will never need to replace any internal batteries.

Signal Input and Output Specifications

Six analog input channels accept 0 to 10V, 4-20mA, or thermocouple signals. Four analog output channels provide 0 to 10V or 4-20mA for actuator control. The GE IS200ICIAH2A IS200ICIAH2AAB Printed Circuit Board includes optical isolation between field circuits and logic. This isolation prevents ground loops from corrupting your critical measurement data.

Environmental Tolerance and Reliability Data

You can operate this board reliably from -20°C to +60°C ambient temperature. The module also withstands 5% to 95% humidity without any condensation. For long-term use, the terminal blocks support 150 insertion and removal cycles.

Key Technical Data (List Format)

• Full Product Name: GE IS200ICIAH2A IS200ICIAH2AAB Printed Circuit Board

• Product Weight: 0.47 kg (1.04 lbs)

• Physical Dimensions: 26.9 cm (L) x 15.2 cm (W) x 2.8 cm (H)

• Interface Type: One 48-pin VME connector + three 20-pin terminal blocks

• Internal Components: One 12-layer PCB + 236 discrete components

• Energy Storage: Small filter capacitors only (no batteries)

• Power Consumption: 7.2 watts (from 5V and 24V rails)

• Analog Inputs: 6 channels (0-10V / 4-20mA / thermocouple / RTD)

• Analog Outputs: 4 channels (0-10V / 4-20mA)

• Wire Gauge Support: 14 to 22 AWG

• Isolation: Optical barrier between field and logic circuits

• Operating Temperature: -20°C to +60°C
