Reliable Analog Signal Processing for Mark VIe

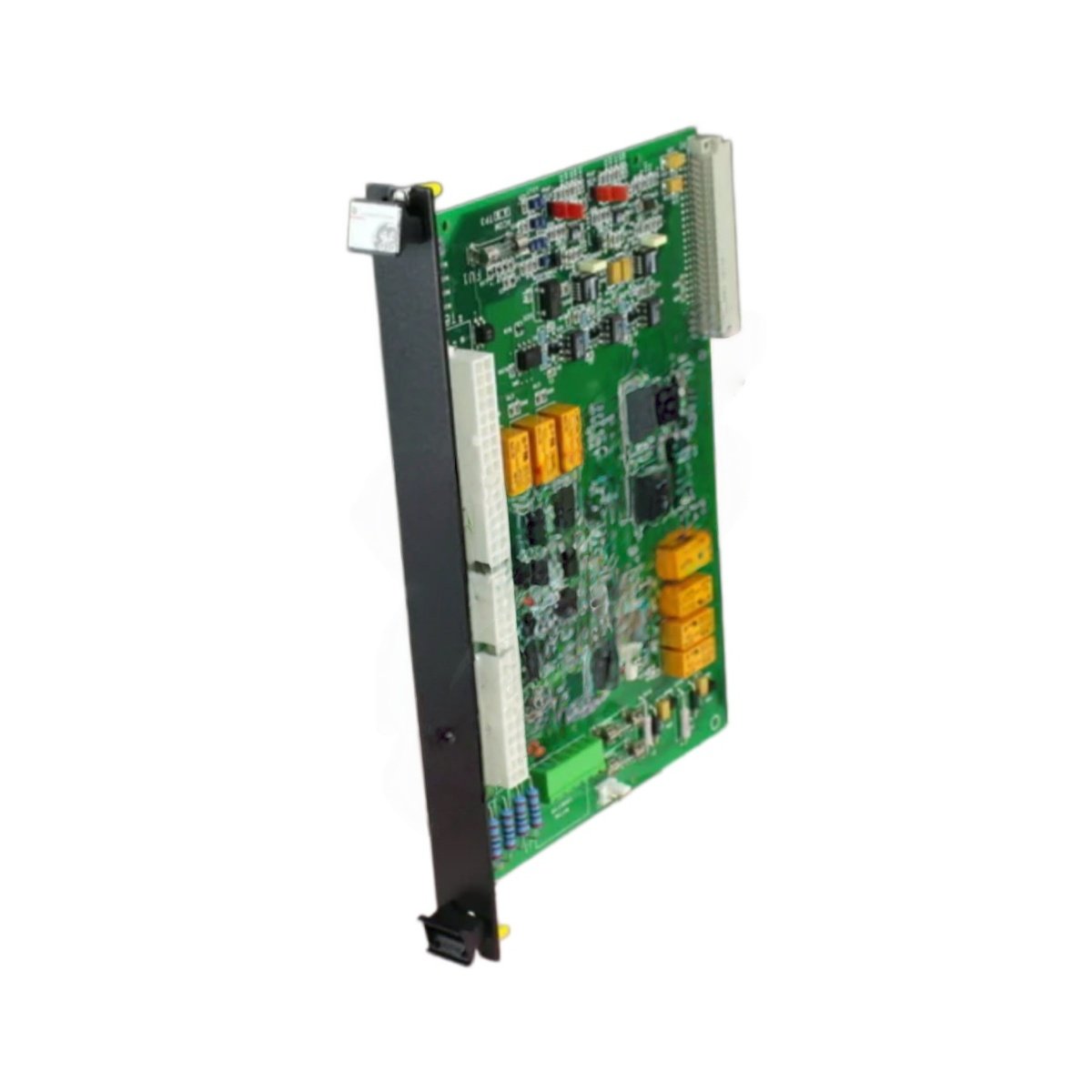

The GE IS200ICIAH1A IS200ICIAH1ABB Printed Circuit Board conditions analog signals for turbine and generator control. This module accepts multiple sensor types including thermocouples and RTDs. Therefore, you can integrate various field devices into a single control rack.

Physical Dimensions and Weight Details

This printed circuit board measures 26.9 cm in length and 15.2 cm in width. Its total height reaches only 2.8 cm including the tallest components. The GE IS200ICIAH1A IS200ICIAH1ABB Printed Circuit Board weighs exactly 0.45 kilograms. This weight allows stable mounting in high-vibration environments.

Connector Interfaces and Component Count

You will find one 48-pin VME connector on the rear edge. The GE IS200ICIAH1A IS200ICIAH1ABB Printed Circuit Board also features three 20-pin terminal blocks for field wiring. These terminal blocks accept 14 to 22 AWG copper wires easily. Inside the board, a single 12-layer PCB holds two hundred eighteen discrete components. These components include precision amplifiers, filtering capacitors, and protection diodes.

Energy Storage and Power Characteristics

This analog board stores minimal energy using only ceramic filter capacitors. It draws operational power from both 5V and 24V VME backplane rails. The GE IS200ICIAH1A IS200ICIAH1ABB Printed Circuit Board consumes approximately 6.8 watts during normal operation. Consequently, you will never need to replace any internal batteries.

Signal Input Specifications

Six analog input channels support 0 to 10V or 4-20mA signals. Each channel also handles Type J, K, or T thermocouple inputs. The GE IS200ICIAH1A IS200ICIAH1ABB Printed Circuit Board includes built-in cold junction compensation for thermocouples. This compensation ensures accurate temperature readings without external reference devices.

Output and Isolation Features

Four analog output channels provide 0 to 10V or 4-20mA for actuator positioning. The GE IS200ICIAH1A IS200ICIAH1ABB Printed Circuit Board uses optical isolation between field circuits and logic. This isolation prevents electrical noise from corrupting your critical measurement data. For protection, each input channel includes overvoltage clamping up to 36V DC.

Environmental Tolerance and Reliability Data

You can operate this board reliably from -20°C to +60°C ambient temperature. The module also withstands 5% to 95% humidity without any condensation. For long-term use, the terminal blocks support 150 insertion and removal cycles.

Key Technical Data (List Format)

• Full Product Name: GE IS200ICIAH1A IS200ICIAH1ABB Printed Circuit Board

• Product Weight: 0.45 kg (0.99 lbs)

• Physical Dimensions: 26.9 cm (L) x 15.2 cm (W) x 2.8 cm (H)

• Interface Type: One 48-pin VME connector + three 20-pin terminal blocks

• Internal Components: One 12-layer PCB + 218 discrete components

• Energy Storage: Ceramic filter capacitors only (no batteries)

• Power Consumption: 6.8 watts (from 5V and 24V rails)

• Analog Inputs: 6 channels (0-10V / 4-20mA / thermocouple)

• Analog Outputs: 4 channels (0-10V / 4-20mA)

• Input Protection: Overvoltage clamping to 36V DC

• Wire Gauge Support: 14 to 22 AWG

• Isolation: Optical barrier (1500V RMS rating)

• Operating Temperature: -20°C to +60°C
