Core Communication Interface for Speedtronic Systems

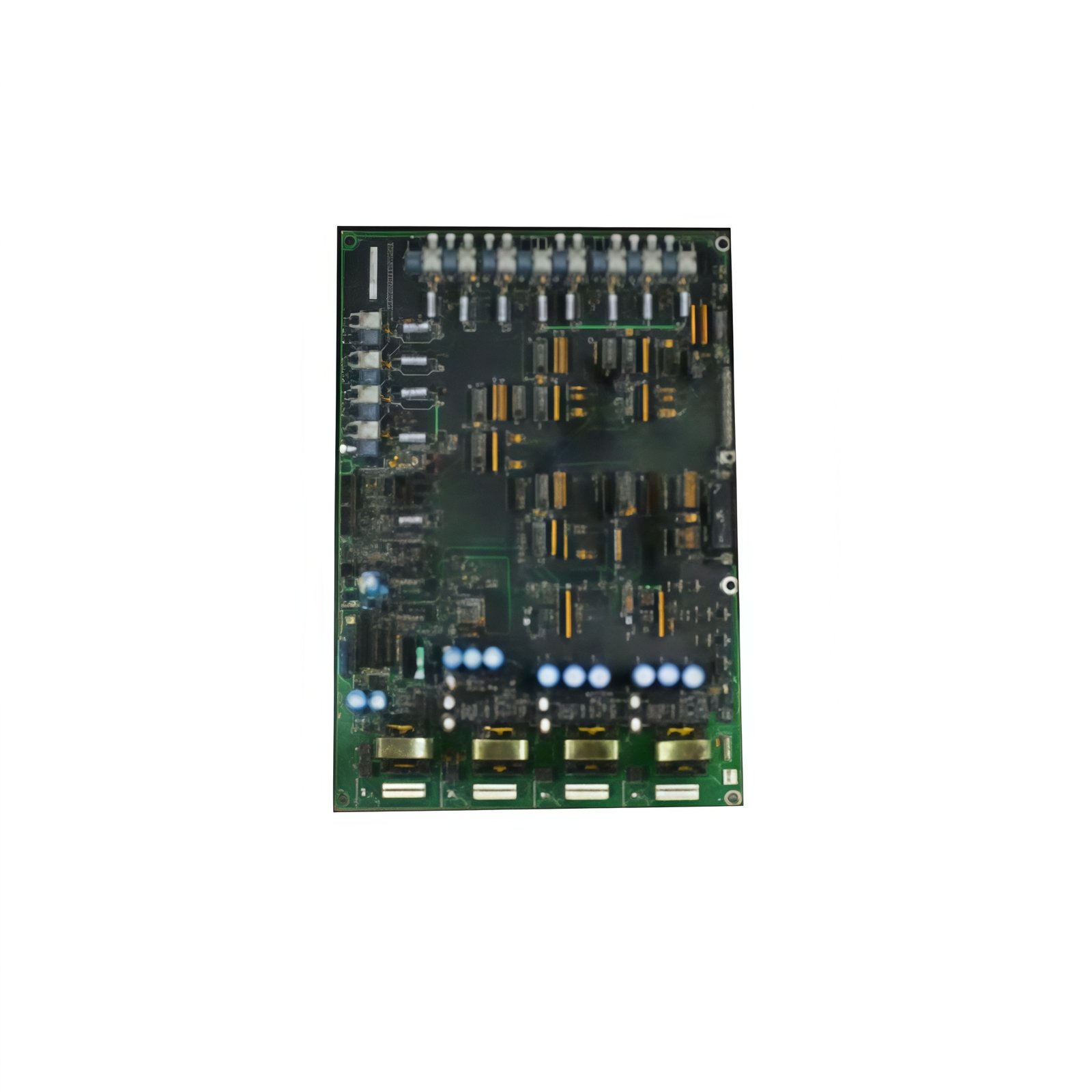

The GE IS200GGXIG1A IS200GGXIG1AED Speedtronic Turbine Control PCB Board manages data exchange between control modules. This board handles both serial and discrete I/O signals efficiently. Therefore, you can integrate turbine sensors and actuators into a unified network.

Physical Dimensions and Weight Details

This turbine control board measures 26.9 cm in length and 15.2 cm in width. Its total height reaches only 2.8 cm including all component tops. The GE IS200GGXIG1A IS200GGXIG1AED Speedtronic Turbine Control PCB Board weighs exactly 0.44 kilograms. This lightweight design simplifies installation in crowded turbine cabinets.

Connector Interfaces and Component Count

You will find one 48-pin VME connector on the rear edge. The GE IS200GGXIG1A IS200GGXIG1AED Speedtronic Turbine Control PCB Board also features two 20-pin terminal blocks for field wiring. These terminal blocks accept 14 to 22 AWG copper wires easily. Inside the board, a single 10-layer PCB holds two hundred seven discrete components. These components include optocouplers, line drivers, and protection diodes.

Energy Storage and Power Characteristics

This control board stores minimal energy using only ceramic filter capacitors. It draws operational power from the 5V and 15V VME backplane rails. The GE IS200GGXIG1A IS200GGXIG1AED Speedtronic Turbine Control PCB Board consumes approximately 6.5 watts during normal operation. Consequently, you will never need to replace any internal batteries.

Signal Input and Output Specifications

Eight discrete input channels accept 24V DC signals from field devices. Four discrete output channels provide 24V DC at 0.25 amps each. The GE IS200GGXIG1A IS200GGXIG1AED Speedtronic Turbine Control PCB Board includes two serial communication ports. These ports support RS-232 and RS-485 protocols for flexible connectivity.

Protection and Diagnostic Features

Each input channel includes optical isolation for noise immunity. The GE IS200GGXIG1A IS200GGXIG1AED Speedtronic Turbine Control PCB Board features LED indicators for power and communication status. A green LED illuminates when the board receives proper backplane power. A yellow LED blinks during active serial data transfer.

Environmental Tolerance and Reliability Data

You can operate this board reliably from -20°C to +60°C ambient temperature. The module also withstands 5% to 95% humidity without any condensation. For long-term use, the terminal blocks support 150 insertion and removal cycles.

Key Technical Data (List Format)

• Full Product Name: GE IS200GGXIG1A IS200GGXIG1AED Speedtronic Turbine Control PCB Board

• Product Weight: 0.44 kg (0.97 lbs)

• Physical Dimensions: 26.9 cm (L) x 15.2 cm (W) x 2.8 cm (H)

• Interface Type: One 48-pin VME connector + two 20-pin terminal blocks

• Internal Components: One 10-layer PCB + 207 discrete components

• Energy Storage: Ceramic filter capacitors only (no batteries)

• Power Consumption: 6.5 watts (from 5V and 15V rails)

• Discrete Inputs: 8 channels (24V DC, optically isolated)

• Discrete Outputs: 4 channels (24V DC at 0.25A each)

• Serial Ports: 2 ports (RS-232 and RS-485)

• Wire Gauge Support: 14 to 22 AWG

• Status Indicators: Green LED (power) + Yellow LED (communication)

• Operating Temperature: -20°C to +60°C
