High-Performance Gate Driver for Mark VIe Systems

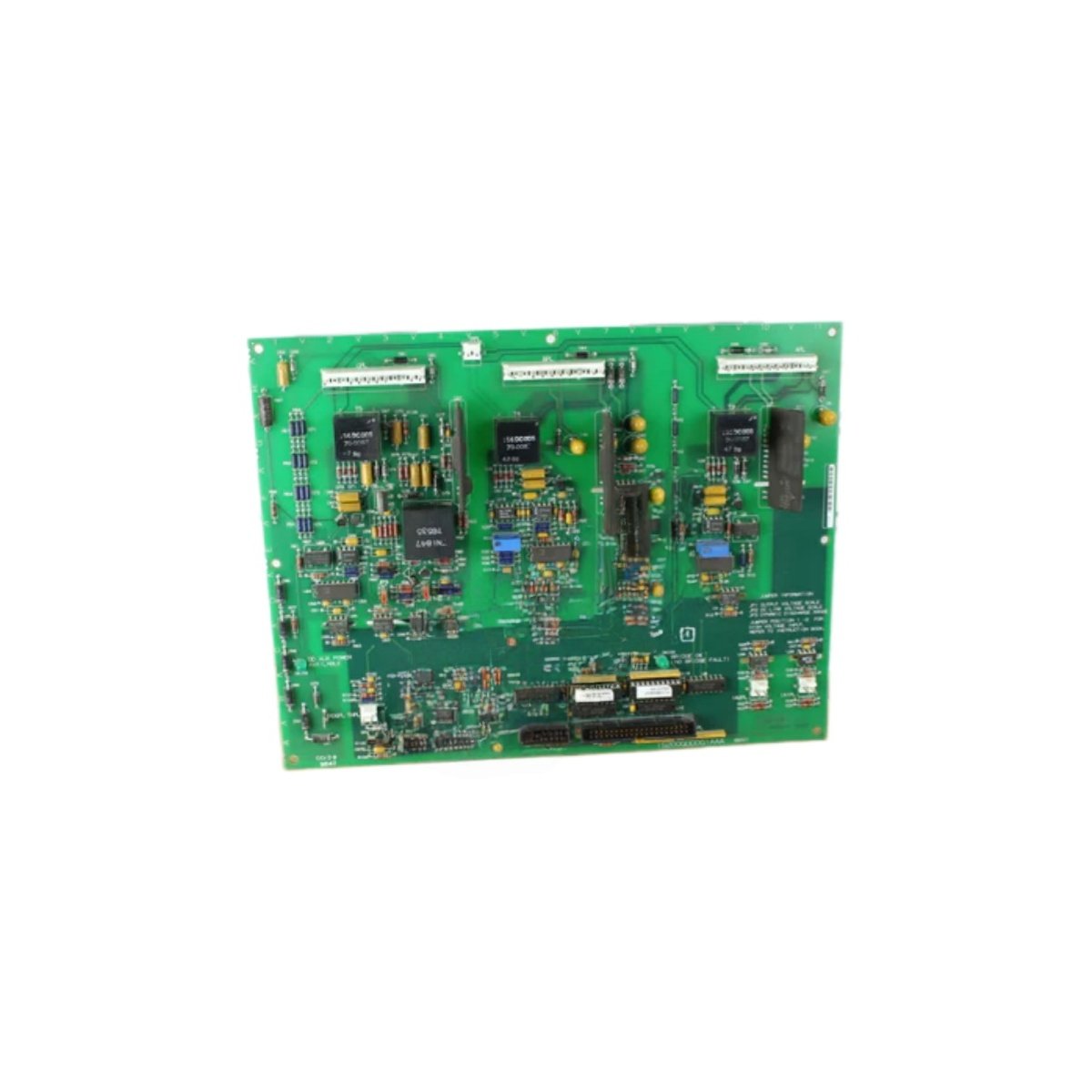

The GE IS200GDDDG1A IS200GDDDG1AAA PCB Circuit Board controls IGBT switching in power conversion stages. This board translates low-voltage logic signals into high-current gate pulses. Therefore, you can achieve efficient power regulation in turbine drive applications.

Physical Dimensions and Weight Details

This PCB circuit board measures 26.9 cm in length and 15.2 cm in width. Its total height reaches only 2.8 cm including all component tops. The GE IS200GDDDG1A IS200GDDDG1AAA PCB Circuit Board weighs exactly 0.46 kilograms. This weight provides reliable mechanical stability during operation.

Connector Interfaces and Component Count

You will find one 48-pin VME connector on the rear edge. The GE IS200GDDDG1A IS200GDDDG1AAA PCB Circuit Board also features two 20-pin ribbon connectors for gate outputs. These ribbon connectors use keyed housings to ensure correct orientation. Inside the board, a single 12-layer PCB holds two hundred twenty-eight discrete components. These components include gate driver ICs, pulse transformers, and transient suppression diodes.

Energy Storage and Power Characteristics

This gate driver board stores minimal energy using ceramic filter capacitors only. It draws operational power from the 5V and 24V VME backplane rails. The GE IS200GDDDG1A IS200GDDDG1AAA PCB Circuit Board consumes approximately 7.8 watts during normal switching operation. Consequently, you will never need to replace any internal batteries.

Gate Drive Channel Specifications

Twelve independent gate drive channels support both high-side and low-side switching. Each channel delivers 2.5 amps of peak gate current for rapid transitions. The GE IS200GDDDG1A IS200GDDDG1AAA PCB Circuit Board provides +15V for device turn-on and -9V for turn-off.

Protection and Diagnostic Features

Each channel includes desaturation detection for short circuit protection. The GE IS200GDDDG1A IS200GDDDG1AAA PCB Circuit Board features under-voltage lockout on every channel. This lockout prevents IGBT operation with insufficient gate voltage. A single red LED illuminates when any channel detects a fault condition.

Environmental Tolerance and Reliability Data

You can operate this board reliably from -20°C to +60°C ambient temperature. The module also withstands 5% to 95% humidity without any condensation. For long-term use, the ribbon connectors support 200 insertion and removal cycles.

Key Technical Data (List Format)

• Full Product Name: GE IS200GDDDG1A IS200GDDDG1AAA PCB Circuit Board

• Product Weight: 0.46 kg (1.01 lbs)

• Physical Dimensions: 26.9 cm (L) x 15.2 cm (W) x 2.8 cm (H)

• Interface Type: One 48-pin VME connector + two 20-pin ribbon connectors

• Internal Components: One 12-layer PCB + 228 discrete components

• Energy Storage: Ceramic filter capacitors only (no batteries)

• Power Consumption: 7.8 watts (from 5V and 24V rails)

• Gate Drive Channels: 12 independent channels

• Peak Output Current: 2.5 amps per channel

• Output Voltages: +15V (turn-on) and -9V (turn-off)

• Protection Features: Desaturation detection + under-voltage lockout

• Fault Indicator: One red LED for any channel fault

• Connector Durability: 200 cycles (ribbon connectors)

• Operating Temperature: -20°C to +60°C
