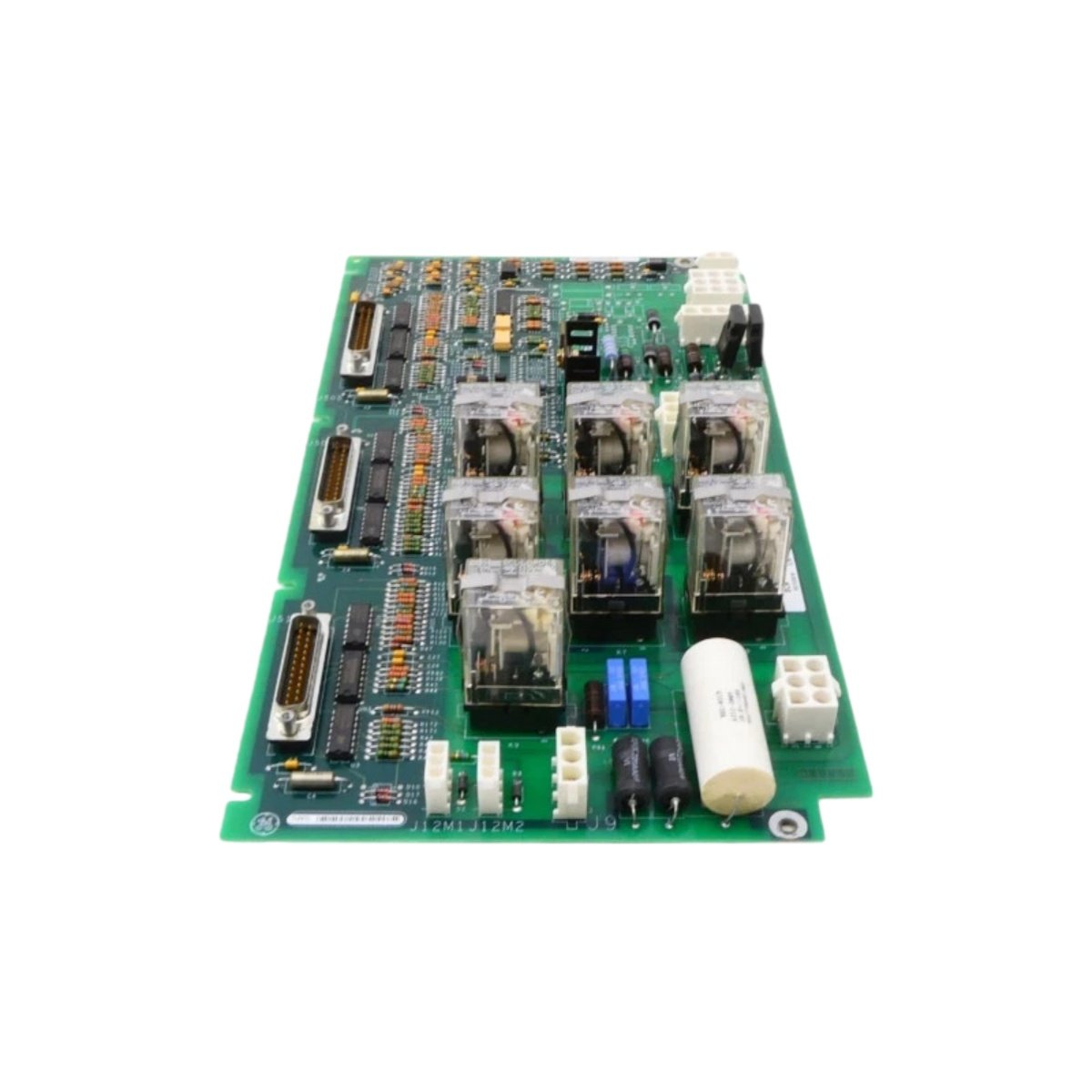

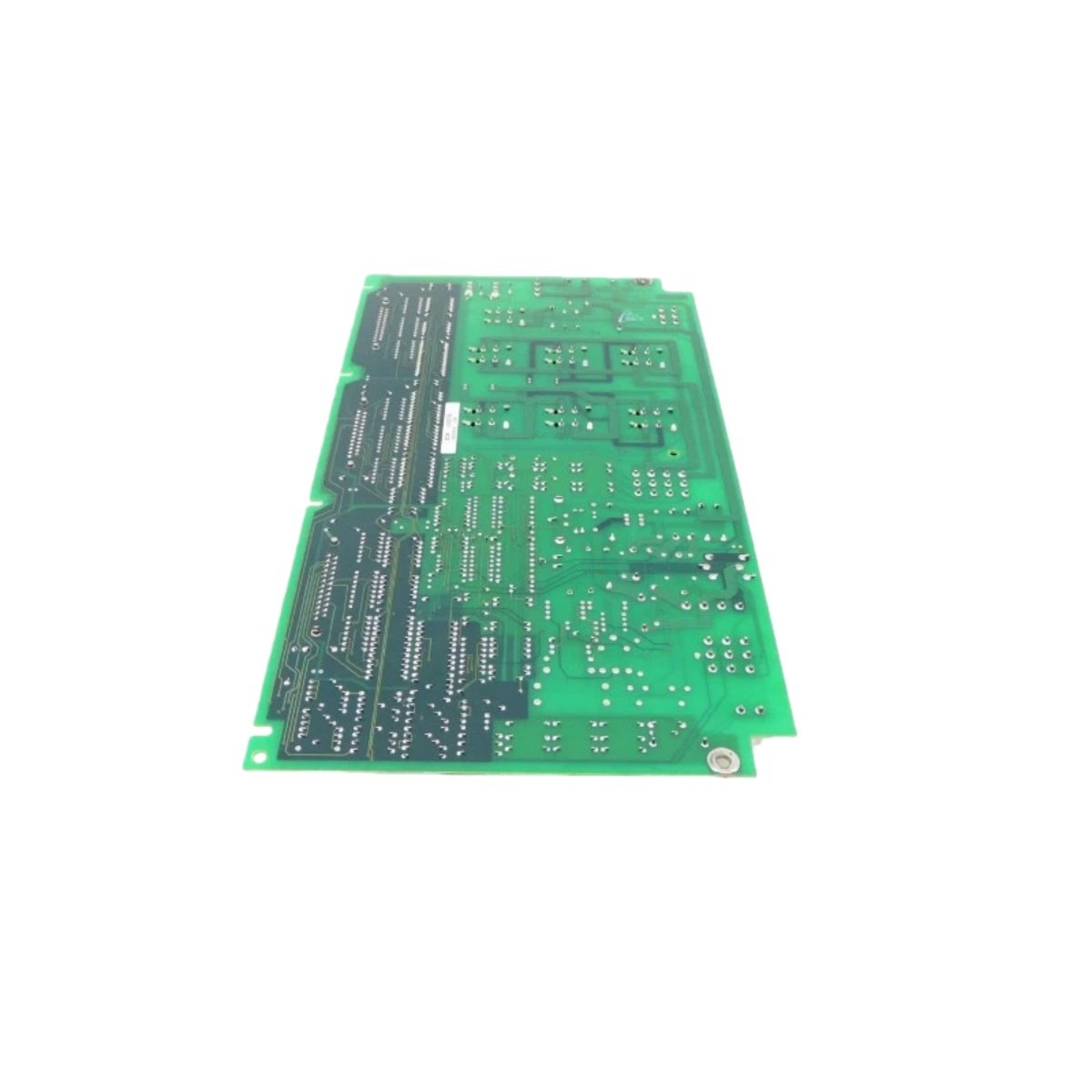

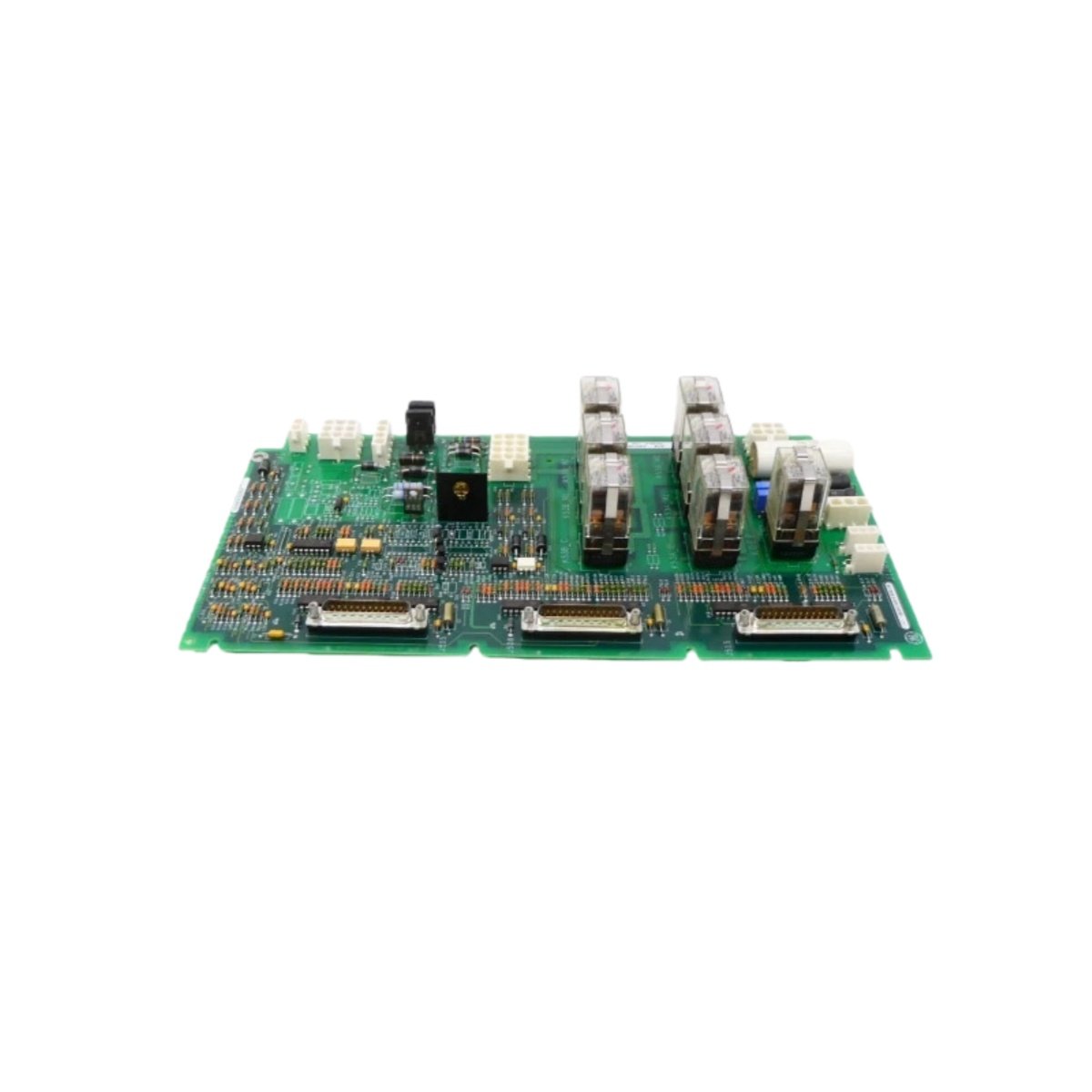

This relay driver board controls external relays from GE Mark VI turbine control systems. It translates low-voltage logic signals into high-current coil-driving outputs. Therefore, this component suits excitation, protection, and auxiliary control circuits.

Physical Dimensions and Weight Specifications

The GE IS200EXHSG3AEB features a standard PCB form factor for rack mounting. Its board dimensions measure 267 mm in height for vertical insertion. The total depth reaches 305 mm for backplane connectivity. Consequently, technicians can install this board in Mark VI drive cabinets.

Interface Types and Connection Layout

The GE IS200EXHSG3AEB provides screw terminals for relay coil wiring. A 50-pin backplane connector receives logic commands from the main controller. The front panel carries LED indicators for each driver channel status. Hence, operators can verify relay activation at a quick glance.

Component Count and Channel Configuration

This relay driver board contains one main PCB with 12 independent driver channels. Each channel uses a Darlington transistor array for high current gain. You will also find flyback diodes for inductive load protection. An onboard optocoupler provides isolation between logic and field circuits.

Energy Storage and Power Consumption

The GE IS200EXHSG3AEB draws 250 mA from the 5V logic supply. It also requires 50 mA per active channel from the external relay supply. A small capacitor bank absorbs back-EMF from relay coils. This storage protects the driver transistors during de-energization events.

Switching Performance and Diagnostic Features

The board energizes each channel within 1 ms of receiving a command. It includes open-circuit detection for broken coil wiring. Users can read diagnostic status via the backplane bus. This feature reduces troubleshooting time during field maintenance.
