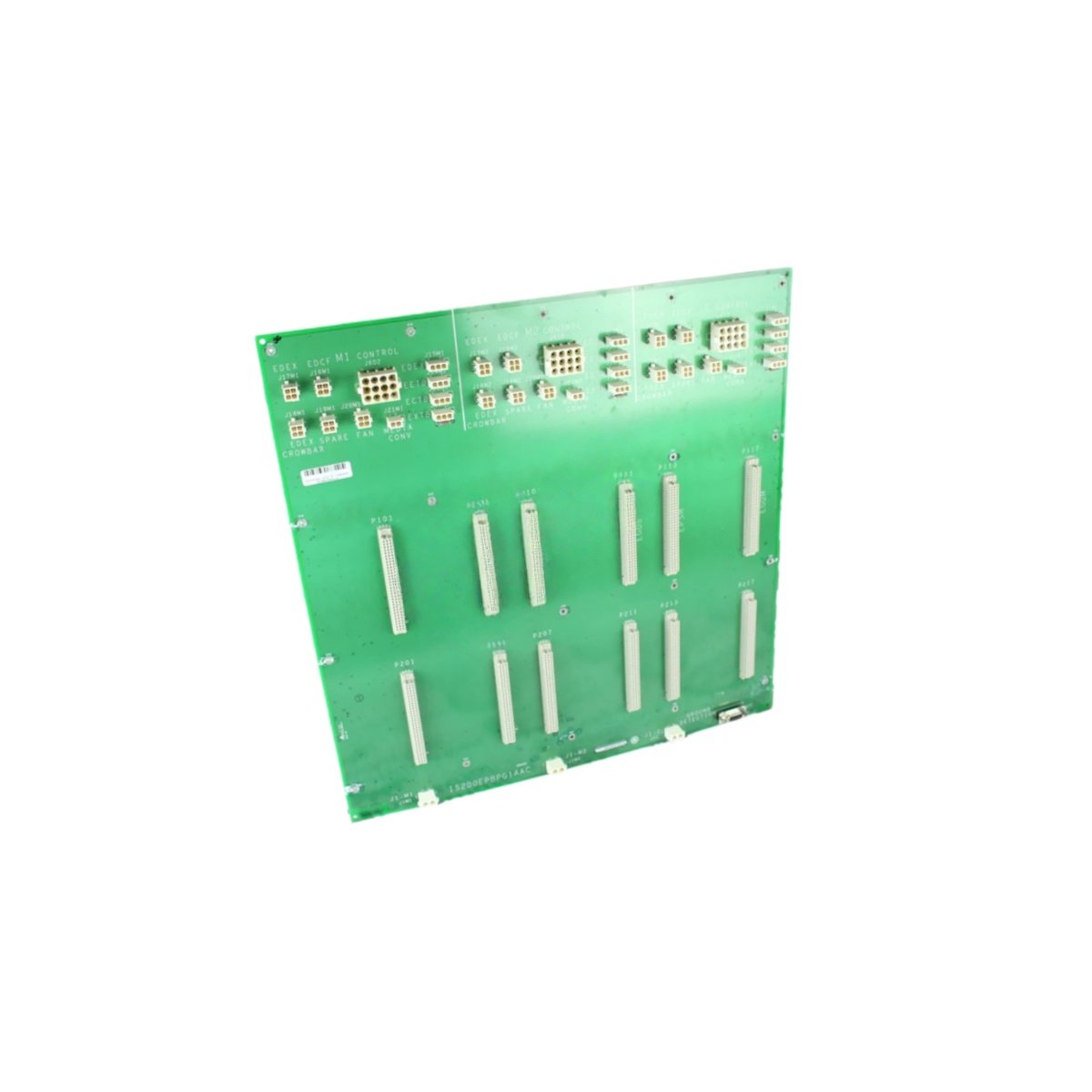

The GE IS200EPBPG1A IS200EPBPG1AAC provides reliable power distribution for Mark VI turbine systems. This board manages voltage routing across multiple control modules. It operates continuously in harsh industrial environments without performance loss. GE IS200EPBPG1A IS200EPBPG1AAC board for Mark VI turbines. 265x182mm, 0.47kg, 6 connectors, 4 capacitors. Reliable power distribution.

Core Technical Specifications

This GE board uses a four-layer PCB construction. Its physical dimensions measure 265 mm in length and 182 mm in width. The board’s total height reaches 35 mm including all components. This unit weighs exactly 0.47 kilograms for easy handling. GE IS200EPBPG1A IS200EPBPG1AAC board for Mark VI turbines. 265x182mm, 0.47kg, 6 connectors, 4 capacitors. Reliable power distribution.

Key hardware parameters include:

• Complete Model: GE IS200EPBPG1A IS200EPBPG1AAC

• Component Count: 78 individual electronic parts

• Connector Interfaces: Six discrete female header ports

• Energy Storage: Four aluminum electrolytic capacitors (470 µF each)

• Mounting Points: Four reinforced screw holes at corners

The GE stores minimal residual charge after power-off. Consequently, technicians can perform replacements safely within five minutes. Each connector supports up to 2.5 amperes of continuous current. Therefore, this board handles multiple low-power I/O devices efficiently.

Application and Installation

This board interfaces directly with the main turbine processor rack. It uses a standard backplane connection for all signal transfers. The GE IS200EPBPG1A IS200EPBPG1AAC requires no firmware updates for basic operation. Consequently, you can install it as a drop-in replacement for failed units. Always verify power isolation before handling this circuit board. GE board for Mark VI turbines. 265x182mm, 0.47kg, 6 connectors, 4 capacitors. Reliable power distribution.
