Functional Overview

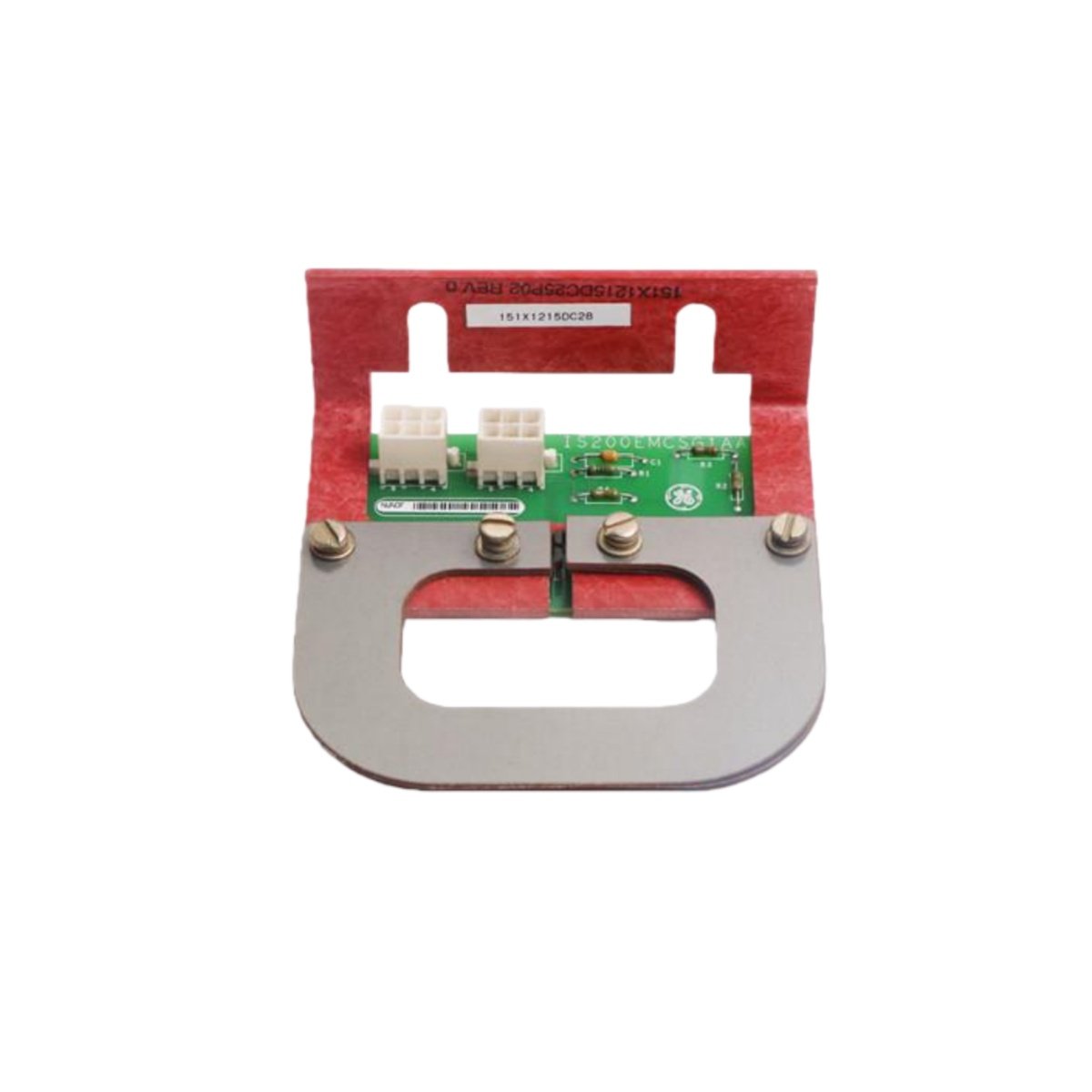

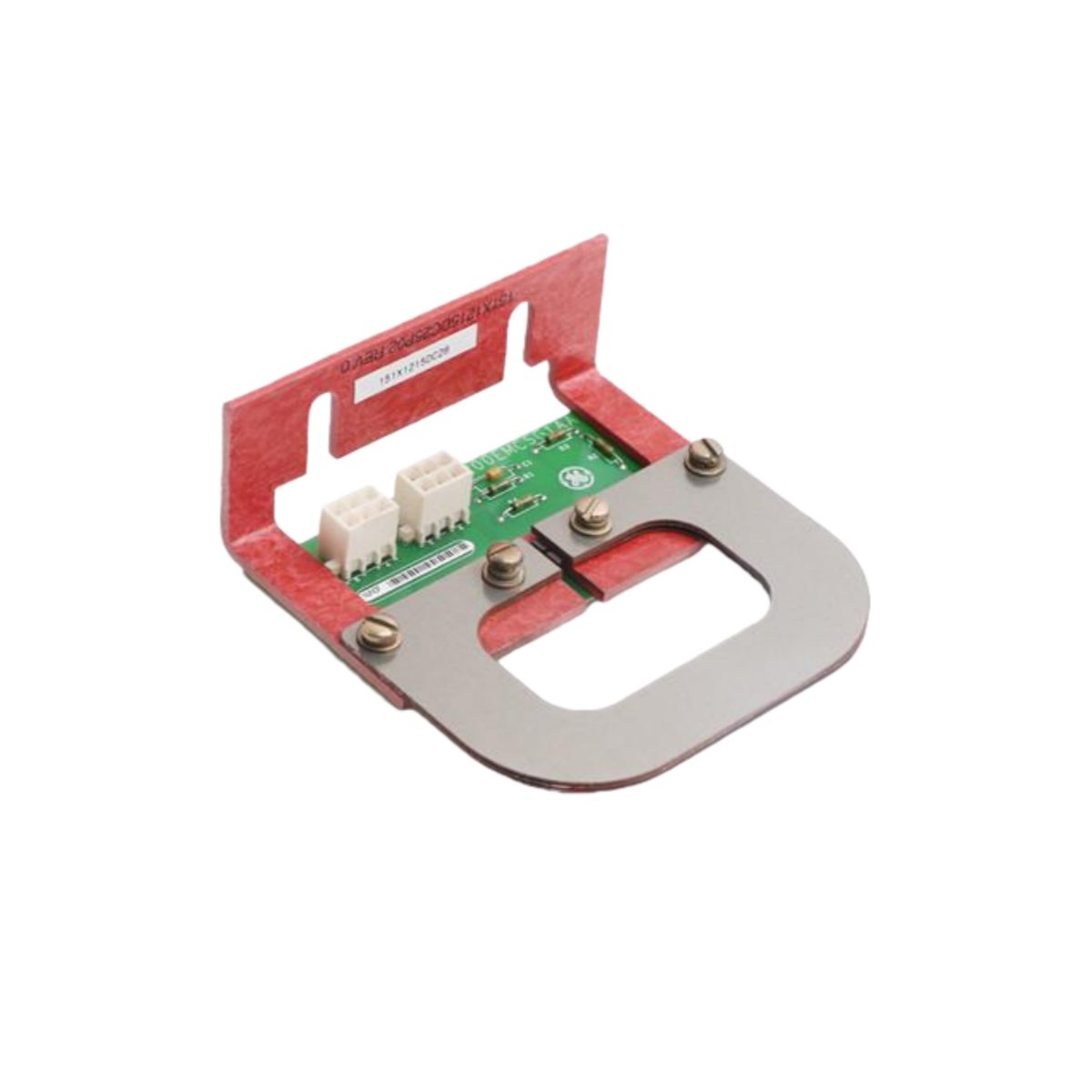

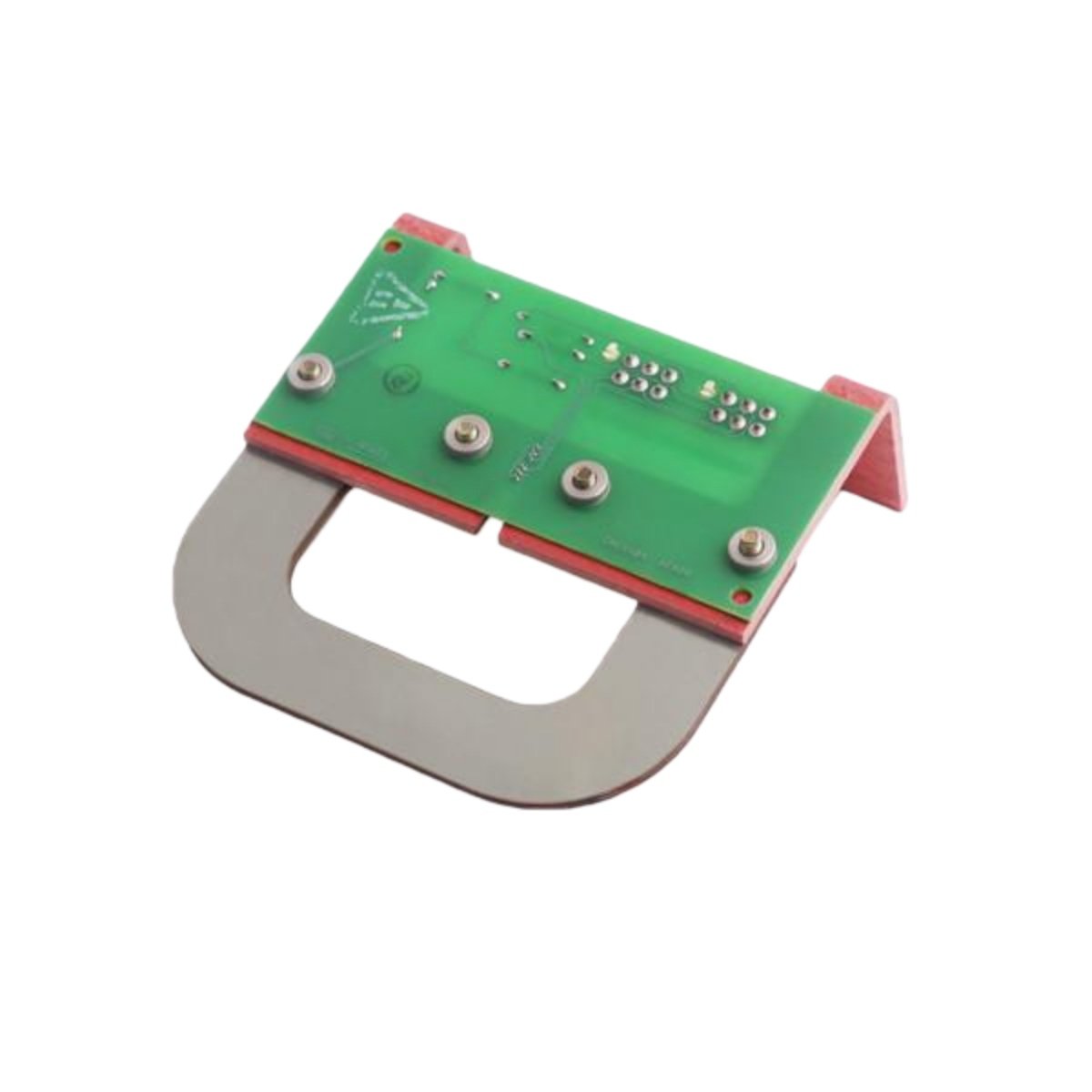

The IS200EMCSG1AA operates as a specialized Multibridge Connector Sensor Card within the GE Mark VIe control platform. This board primarily interfaces with the VME backplane through a Multibridge connector assembly. It monitors critical temperature and voltage parameters across multiple system points simultaneously. The card also manages low-level signal conditioning for external sensor inputs. Therefore, it ensures reliable data acquisition for turbine and generator protection schemes.

Key Technical Specifications

Interface Architecture

Three separate Multibridge connectors populate the front edge of the IS200EMCSG1AA. These connectors aggregate analog and digital signal paths from diverse field devices. Additionally, a 96-pin DIN connector provides auxiliary I/O expansion capabilities. The card supports up to 16 differential analog inputs with 16-bit resolution. Four isolated digital output channels complement these analog inputs for basic control actions. Furthermore, onboard diagnostics continuously monitor signal integrity and communication health.

Application Context

Systems integrators commonly deploy the IS200EMCSG1AA in heavy-duty gas and steam turbine control cabinets. The card excels in environments requiring precise sensor data acquisition with minimal latency. Its robust component selection supports sustained operation in high-vibration industrial settings. Moreover, the energy storage subsystem prevents data loss during momentary power fluctuations. This design makes the module exceptionally suitable for critical power generation applications.
