The GE IS200EISBH1A IS200EISBH1AAC handles critical signal interfacing for Mark VI turbine systems. This board manages both analog and digital I/O transfers reliably. It connects directly to the main processor through a backplane interface. You can use either model number as a direct replacement.
Detailed Technical Specifications

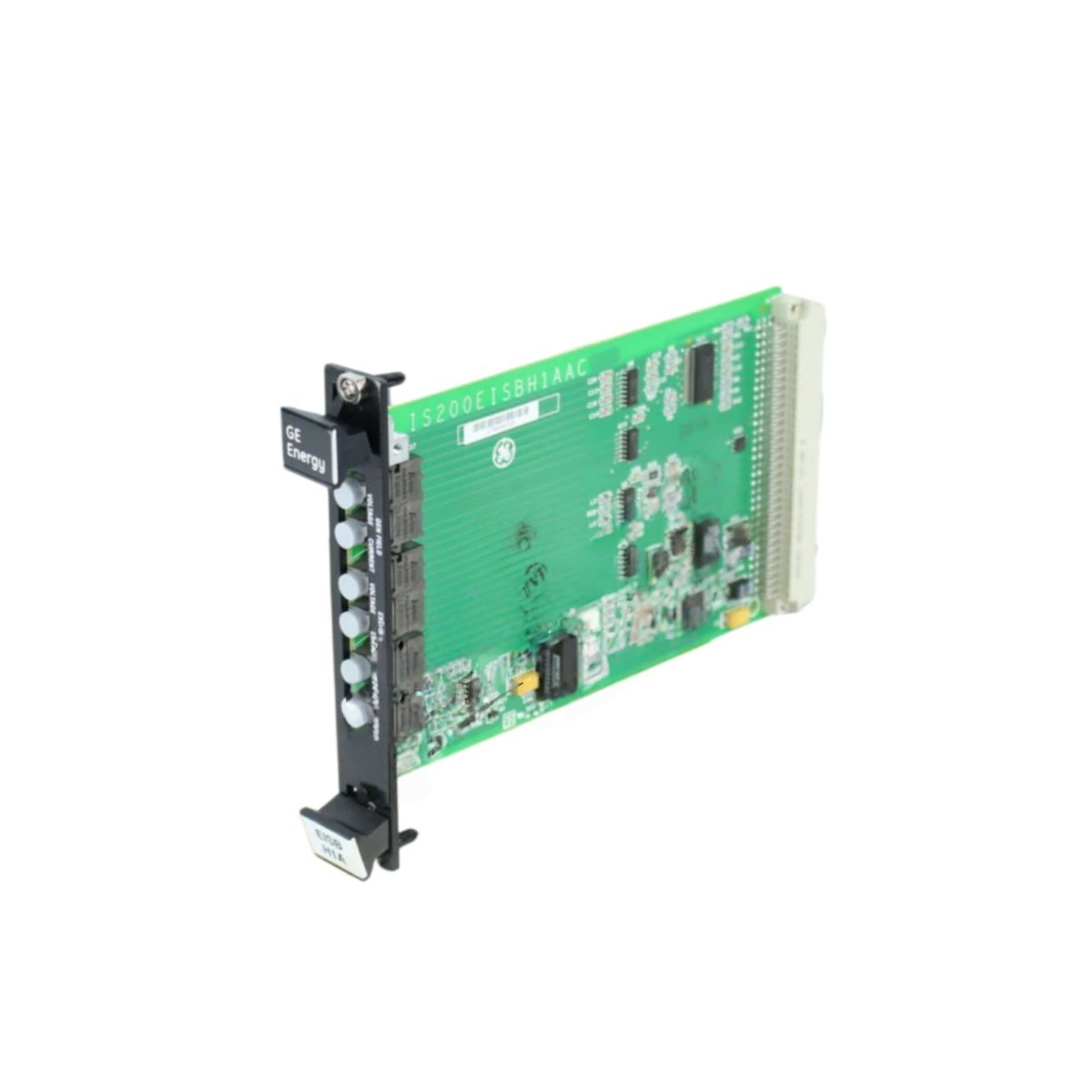

This GE IS200EISBH1A IS200EISBH1AAC circuit board measures 265 mm in length. Its width reaches 184 mm across the widest point. The total height goes up to 32 mm with all components installed. This unit weighs approximately 0.52 kilograms for easy handling.
Key hardware parameters include:
Complete Model: GE IS200EISBH1A IS200EISBH1AAC
Component count: 112 individual electronic parts
Connector ports: Seven shielded interface connectors
Energy storage: Six tantalum capacitors (100 µF each)
Mounting system: Four screw-type fixing points
PCB layers: Six-layer flame-retardant construction
The GE IS200EISBH1A IS200EISBH1AAC dissipates residual energy within two seconds after power-off. Therefore, technicians face minimal electrical hazard during replacement. Each connector supports up to 1.8 amperes of continuous current. Moreover, this board operates reliably in temperatures from -30°C to +65°C.
| Technical Parameter | Specification |
|---|---|
| Full Model Number | GE IS200EISBH1A IS200EISBH1AAC |
| Board Dimensions | 265 mm x 184 mm x 32 mm |
| Weight | 0.52 kg |
| Total Components | 112 units |
| Connector Ports | 7 shielded ports |
| Energy Storage Caps | 6 x 100 µF (tantalum) |
| Operating Temperature | -30°C to +65°C |
| Humidity Tolerance | 5% to 95% non-condensing |
Application and Installation
This GE board mounts directly into a Mark VI rack slot. It requires no firmware updates before first-time use. The board transmits signals without significant processing latency. Always disconnect system power before removing this unit.
