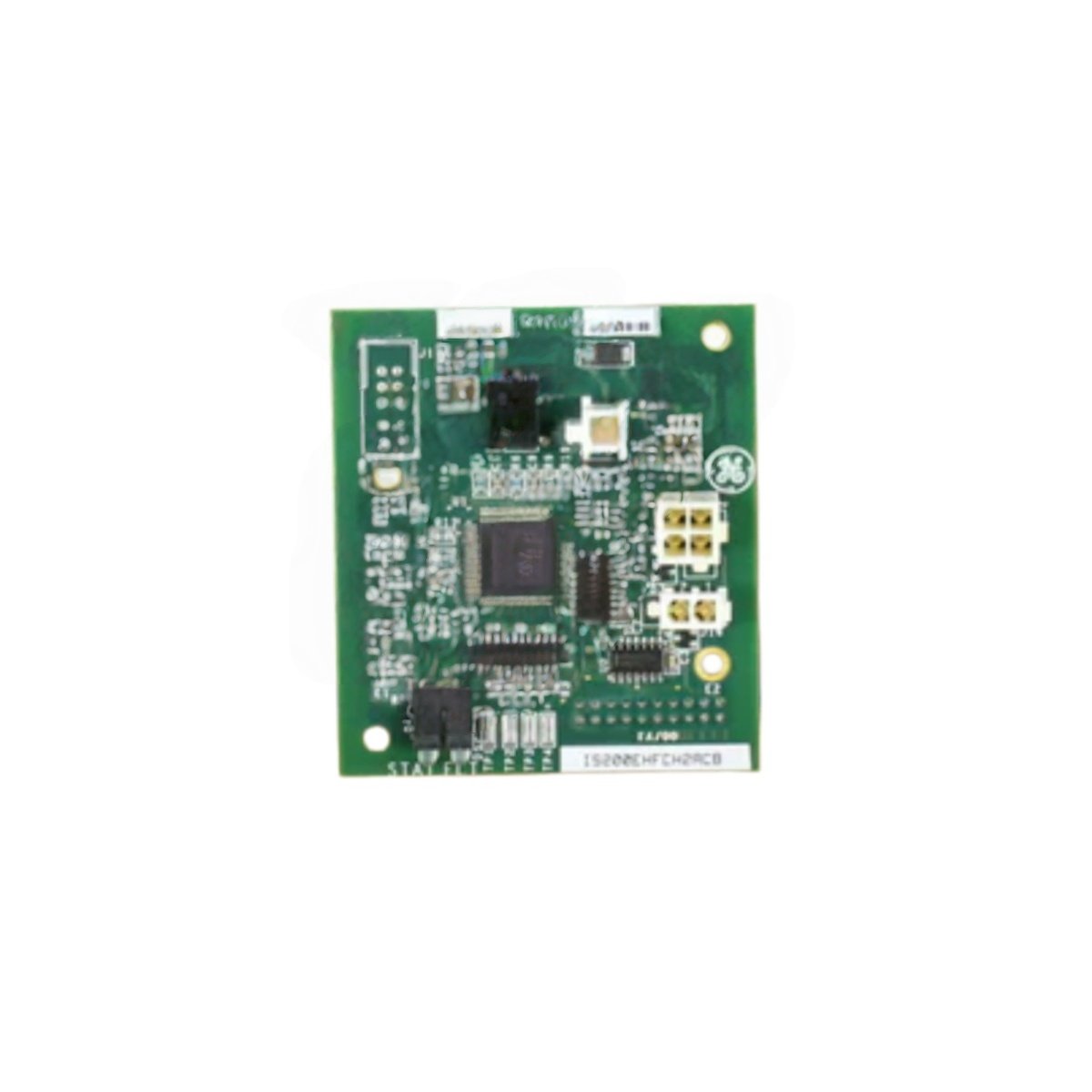

The GE IS200EHFCH2A IS200EHFCH2ACB manages excitation control functions for Mark VI turbine systems. This board regulates field current to the main generator rotor. It connects directly to the exciter firing circuits. You can use either model number as a direct replacement. Consequently, this PCB serves as a critical component for synchronous generator operation.

Detailed Technical Specifications

This GE IS200EHFCH2A IS200EHFCH2ACB printed circuit board measures 305 mm in length. Its width reaches 210 mm across the main body. The total height goes up to 40 mm with all heat sink components. This unit weighs approximately 0.85 kilograms for secure mounting. Therefore, the board fits into standard exciter rack slots without modification.

Key hardware parameters include:

• Complete Model: GE IS200EHFCH2A IS200EHFCH2ACB

• Component count: 156 individual electronic parts

• Connector ports: Eight discrete high-current terminals

• Energy storage: Ten electrolytic capacitors (2200 µF each)

• Heat dissipation: Integrated aluminum heat sink

• Mounting system: Six reinforced screw points

• PCB layers: Eight-layer high-thermal construction

• Firing output: Six isolated SCR gate drives

The GE IS200EHFCH2A IS200EHFCH2ACB stores significant energy for firing pulse generation. Consequently, technicians must wait sixty seconds after power removal before handling. Each terminal supports up to 12 amperes of continuous excitation current. Moreover, this board operates reliably from -20°C to +70°C. The board also includes overcurrent protection on each output channel. Therefore, it prevents damage to downstream exciter components.

Application and Installation

This GE IS200EHFCH2A IS200EHFCH2ACB board mounts vertically in a dedicated exciter rack slot. It requires proper heat sink contact for reliable operation. The board generates firing pulses for SCR-based excitation systems. Always discharge the capacitors fully before touching any circuitry. Furthermore, you should verify DC bus voltage has dropped below 5 volts. This precaution ensures complete safety during maintenance procedures.

Reliability and Maintenance

The GE IS200EHFCH2A IS200EHFCH2ACB uses surface-mount components for better vibration resistance. Its conformal coating protects against humidity and dust ingress. You can expect a mean time between failures exceeding 50,000 hours. Consequently, this board reduces unplanned downtime in power generation applications.
