Product Overview

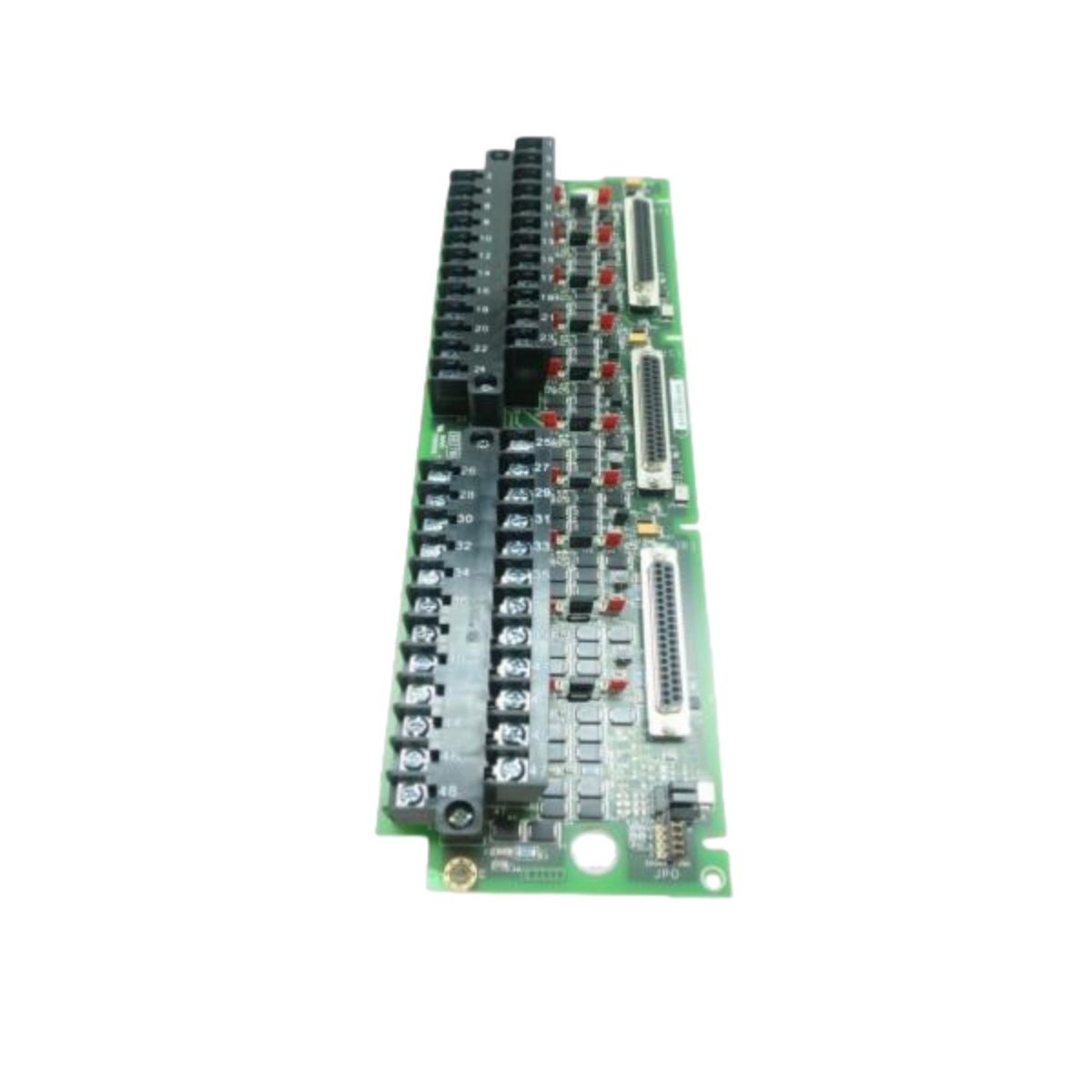

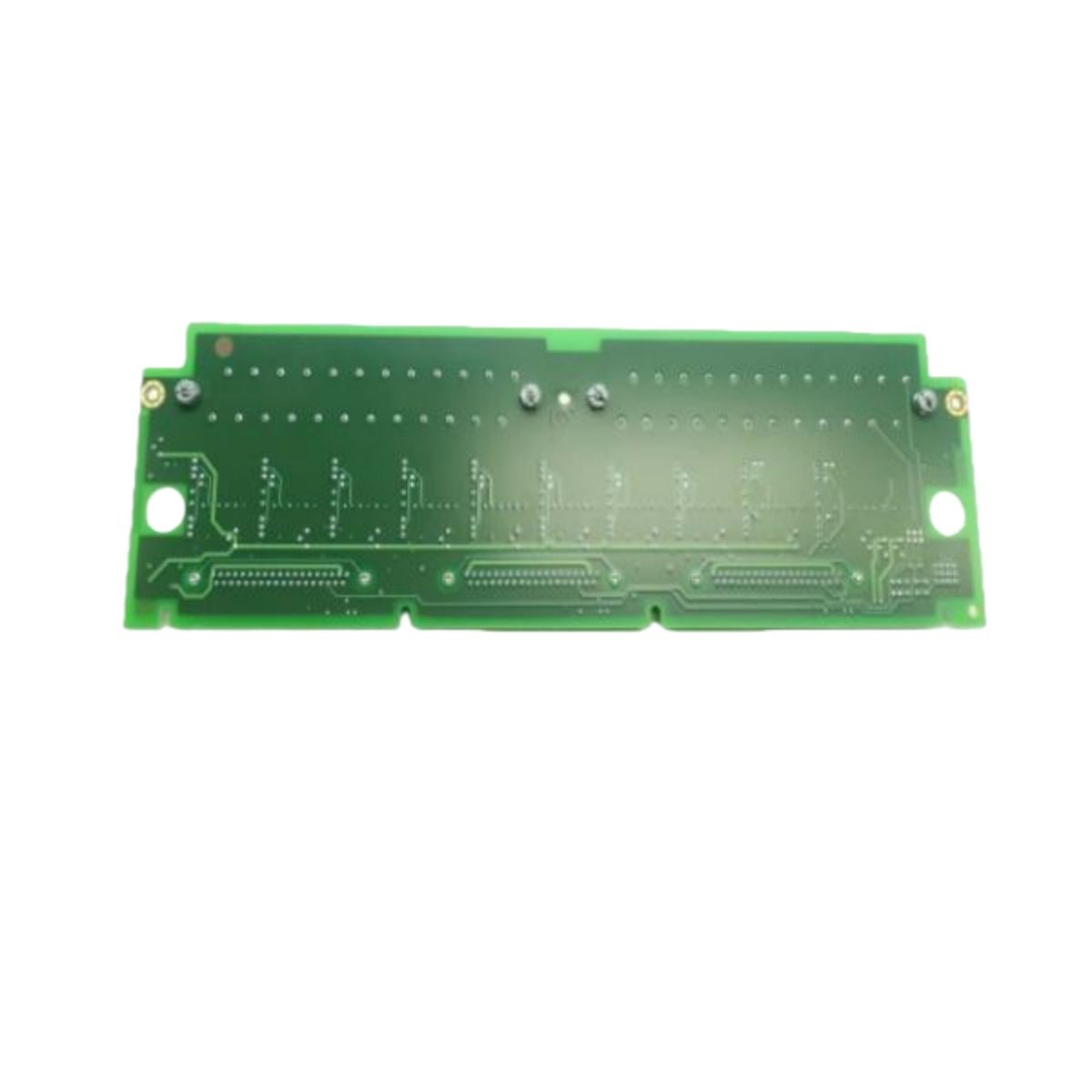

The GE IS200EGPAG1B gate pulse amplifier board generates and amplifies firing pulses for thyristor control in GE Mark VI turbine systems. This board drives power semiconductors with precise timing signals. It connects directly to the Mark VI backplane. The unit ensures reliable switching for turbine excitation and speed control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IS200EGPAG1B |
| Product Type | Gate Pulse Amplifier Board |
| Brand | GE (General Electric) |
| Category | Mark VI Turbine Control Boards |
| Output Type | Gate drive pulses |
| Signal Amplification | High-current pulse output |
| Number of Channels | Multiple (phase control) |
| Connection | Backplane interface |
| Input Voltage | 24V DC |
| Weight | Approximately 0.40 kg |
| Dimensions | Standard Mark VI board size |
| Operating Temperature | 0°C to 60°C |
| Protection Class | IP20 |
Key Features and Benefits
Precise Gate Control
The IS200EGPAG1B generates accurate firing pulses for thyristor commutation. This precision ensures smooth turbine operation. The board maintains timing integrity under all load conditions.
High-Power Output
This amplifier board delivers sufficient current to drive multiple power semiconductors. Its robust output stage handles demanding switching requirements. Users benefit from reliable thyristor triggering.
Robust Turbine Integration
The board integrates seamlessly into GE Mark VI control systems. It supports both excitation and speed control functions. This compatibility simplifies turbine control system maintenance.
Application and Use Cases
The GE IS200EGPAG1B serves in steam and gas turbine excitation systems using Mark VI technology. It also supports variable-speed drive applications. Maintenance engineers will find this board critical for turbine control system integrity.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
