The GE IS200EDEXG1A IS200EDEXG1ABA printed circuit board manages exciter control signals for Mark VI systems. This board regulates DC field current to the main generator rotor. It interfaces directly with SCR firing circuits for precise power control. You can use either model number as a direct replacement.

Detailed Technical Specifications

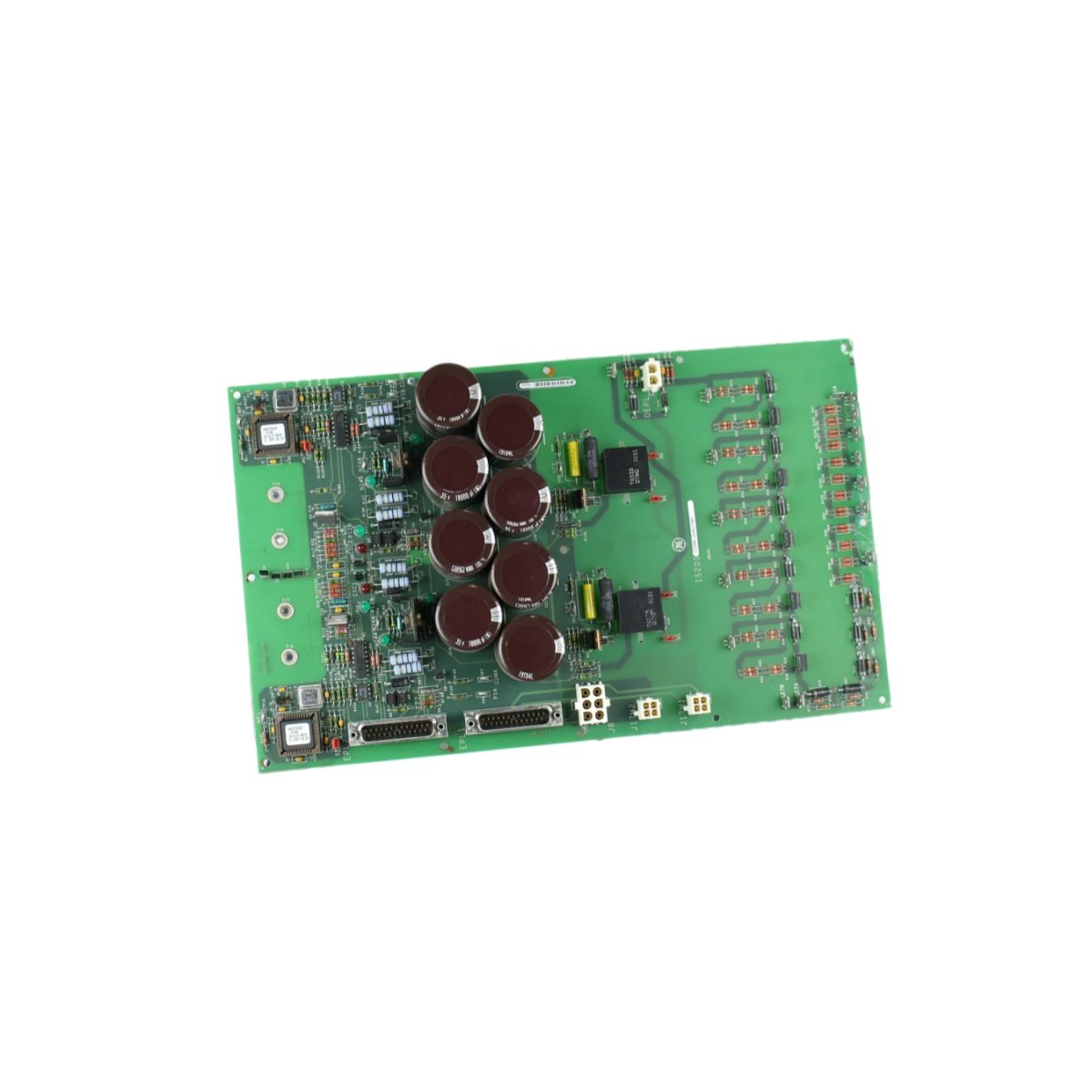

This GE IS200EDEXG1A IS200EDEXG1ABA printed circuit board measures 310 mm in length. Its width reaches 195 mm across the main surface. The total height goes up to 38 mm with all heat sink components. This unit weighs approximately 0.72 kilograms for secure mounting.

Key hardware parameters include:

• Complete Model: GE IS200EDEXG1A IS200EDEXG1ABA

• Component count: 142 individual electronic parts

• Connector ports: Six high-current terminal blocks

• Energy storage: Twelve electrolytic capacitors (1000 µF each)

• Mounting system: Six reinforced screw points

• Heat dissipation: Extended aluminum heat sink

• PCB layers: Eight-layer high-thermal construction

• Firing outputs: Six isolated SCR gate drive channels

• Feedback inputs: Four Hall effect sensor interfaces

The GE IS200EDEXG1A IS200EDEXG1ABA printed circuit board stores significant energy for pulse generation. Consequently, technicians must wait ninety seconds after power removal before handling. Each terminal supports up to 15 amperes of continuous excitation current. Moreover, this board operates reliably from -20°C to +70°C.

Application and Installation

The GE IS200EDEXG1A IS200EDEXG1ABA printed circuit board mounts vertically in an exciter rack slot. It requires proper heat sink contact for reliable operation. This board generates firing pulses for SCR-based excitation systems. Always discharge the capacitors fully before touching any circuitry.

Protection and Reliability

This board includes overcurrent protection on each output channel. Therefore, it prevents damage to downstream exciter components. The GE IS200EDEXG1A IS200EDEXG1ABA uses conformal coating for humidity and dust resistance. You can expect a mean time between failures exceeding 60,000 hours. Furthermore, the board features LED indicators for each firing channel.

Verify that DC bus voltage drops below 5 volts before servicing this board. Match all field wiring to the terminal block labels carefully. The board accepts feedback from Hall effect current sensors directly. Consequently, you can close the control loop without external signal conditioners.
