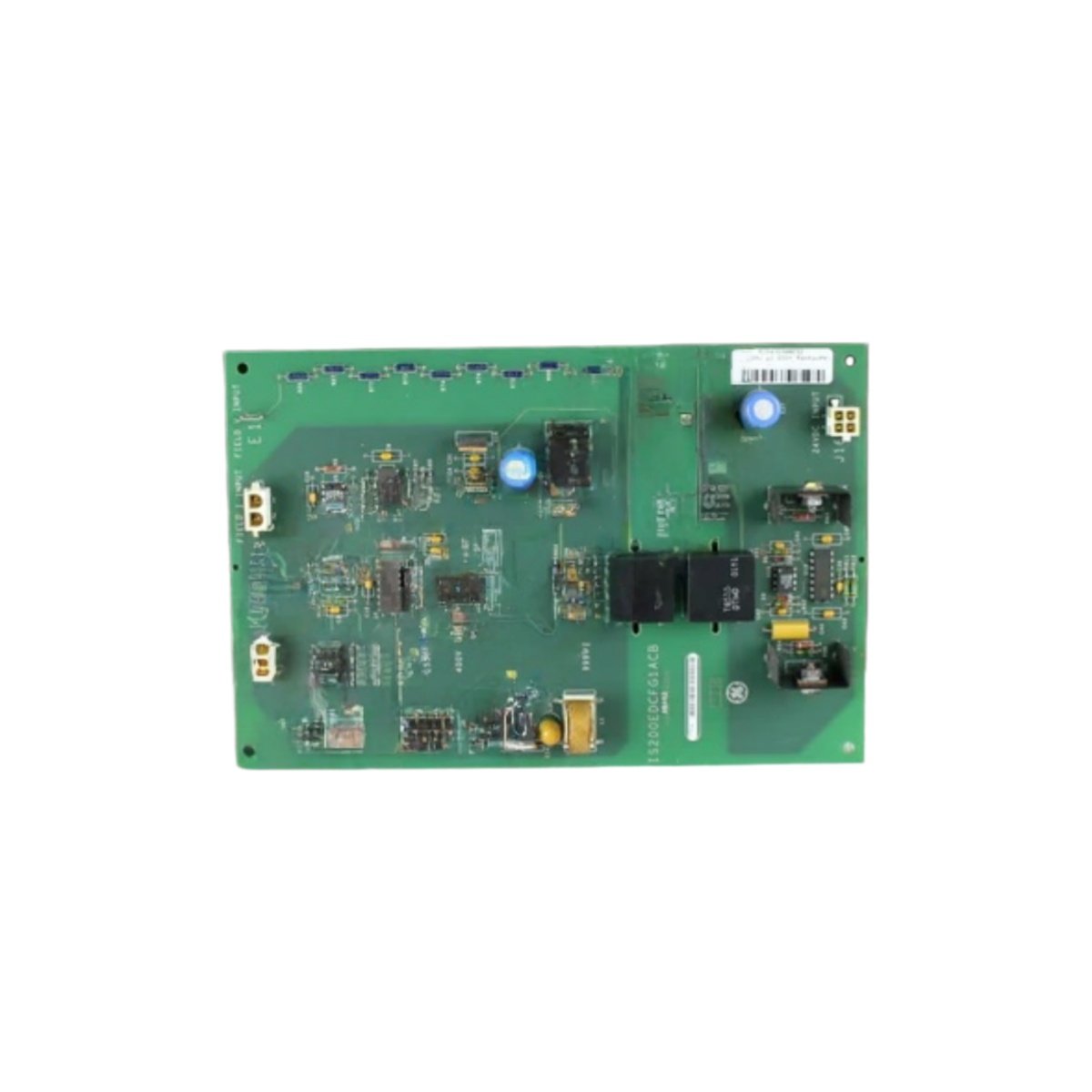

The GE IS200EDCFG1A IS200EDCFG1ACB printed circuit board provides DC field control for Mark VI excitation systems. This board regulates generator field current with high precision. It interfaces directly with the main exciter controller through a backplane connection. You can use either model number as a direct replacement.

Detailed Technical Specifications

This GE IS200EDCFG1A IS200EDCFG1ACB printed circuit board measures 295 mm in length. Its width reaches 185 mm across the main surface. The total height goes up to 32 mm with all components installed. This unit weighs approximately 0.58 kilograms for secure mounting.

Key hardware parameters include:

• Complete Model: GE IS200EDCFG1A IS200EDCFG1ACB

• Component count: 118 individual electronic parts

• Connector ports: Four high-density DIN connectors

• Energy storage: Six aluminum capacitors (680 µF each)

• Mounting system: Four reinforced corner brackets

• PCB layers: Six-layer industrial-grade construction

• Analog inputs: Eight differential 4-20 mA channels

• PWM outputs: Four isolated pulse-width modulation channels

• Status LEDs: Ten diagnostic indicator lights

The GE IS200EDCFG1A IS200EDCFG1ACB printed circuit board stores moderate residual charge after power-off. Therefore, technicians must wait forty-five seconds before handling the board. Each analog input provides 16-bit resolution for accurate field measurements. Moreover, each PWM output operates at frequencies up to 10 kHz.

Application and Installation

The GE IS200EDCFG1A IS200EDCFG1ACB printed circuit board mounts horizontally in a Mark VI exciter rack. It requires no external signal conditioning for most field devices. This board accepts direct wiring from current transformers and potential transformers. Consequently, you can reduce overall system complexity significantly.

Signal Processing and Reliability

This board filters out electrical noise from all analog input channels. Its six-layer PCB design minimizes signal interference between adjacent traces. The GE IS200EDCFG1A IS200EDCFG1ACB includes self-diagnostic circuitry for each PWM output. Therefore, you can detect output faults before they affect generator operation.

Always power down the entire rack before inserting or removing this board. Verify that all field wiring matches the terminal assignment labels carefully. The board features LED indicators for power, communication, and fault status. Furthermore, its conformal coating protects against dust, humidity, and mild chemical exposure.
