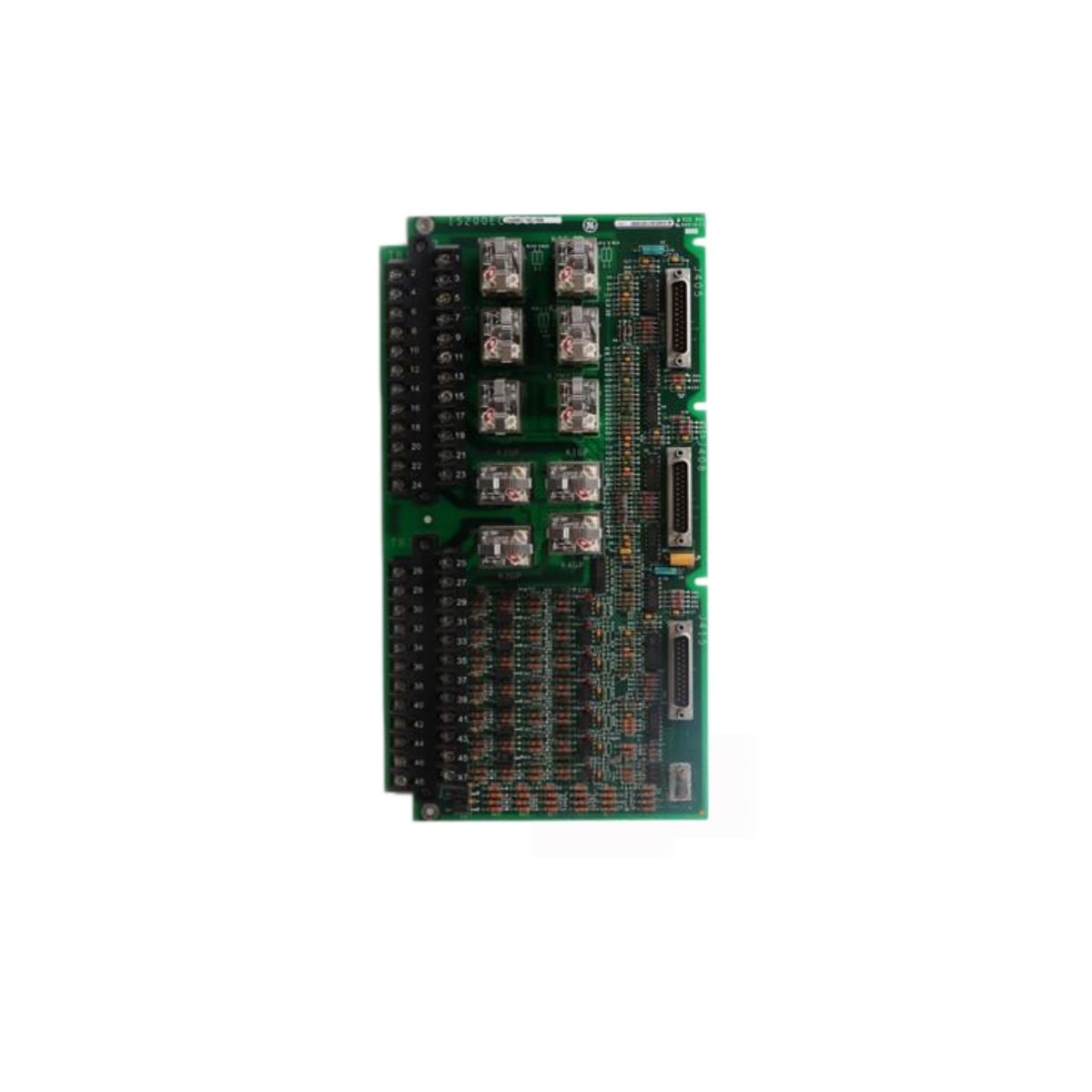

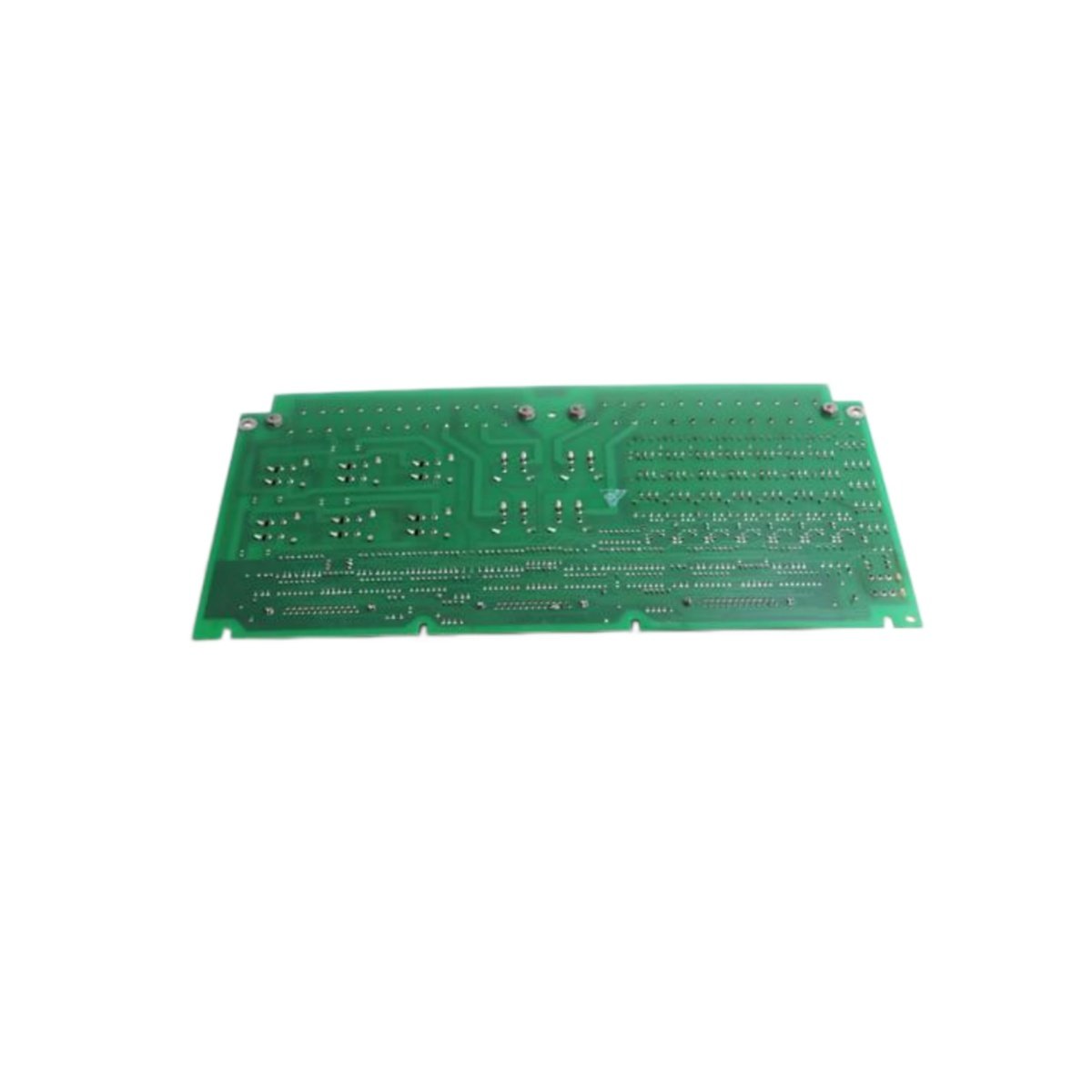

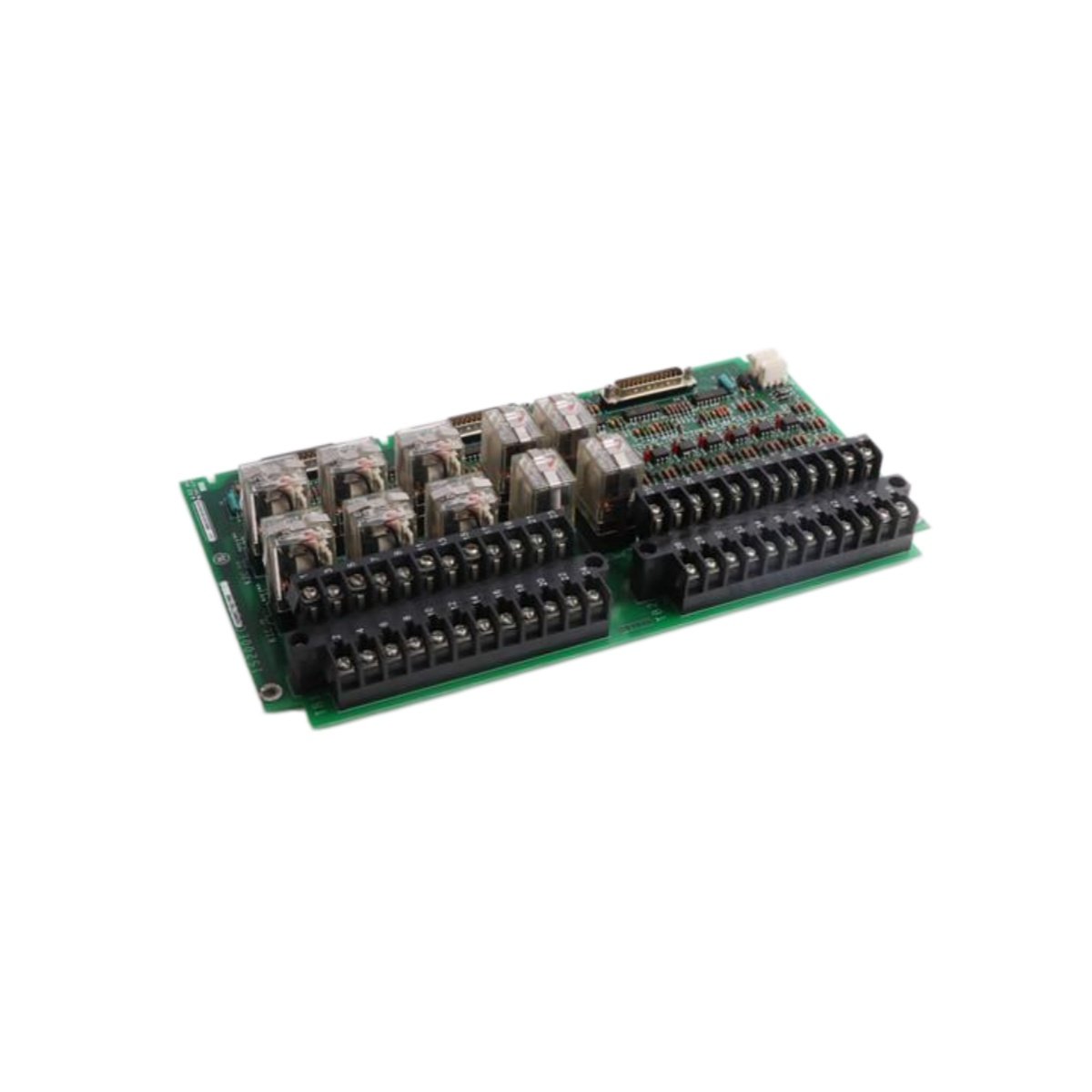

Mark VI Series I/O Termination Board
The IS200ECTBG1ABB functions as an I/O terminal circuit board within the GE Mark VI control system. This board provides termination points for field wiring and signal distribution. It interfaces directly with the main control processor for data exchange. The unit also incorporates filtering circuits for signal integrity.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE |
| Model | IS200ECTBG1ABB |
| Category | I/O Terminal Circuit Board |
| System Compatibility | Mark VI Series |
| Terminal Points | Offers 64 screw-type terminals |
| Signal Types | Supports both analog and digital signals |
| Power Supply | Draws +5 Vdc from the backplane |
| Voltage Rating | Handles up to 250 Vdc per terminal |
| Current Rating | Supports up to 2 A per terminal |
| Isolation | Provides 1500 Vac optical isolation |
| Filtering | Includes RC low-pass filters |
| Operating Temperature | Functions from -20°C to +65°C |
| Storage Temperature | Withstands -40°C to +85°C |
| Dimensions | Measures 180.0 mm x 120.0 mm x 20.0 mm |
| Weight | Weighs approximately 0.7 kg |
| Mounting | Plugs into Mark VI rack slots |
| Material | Constructed from FR-4 flame-retardant laminate |
| Connector Type | Features edge connector interface |
| Compliance | Meets CE and UL standards |
Signal Termination and Interface
This board terminates all field wiring for the Mark VI control system. It routes signals to and from the main processor through the backplane. The unit also provides filtering to reduce electrical noise. Furthermore, it includes optical isolation for improved signal quality. The board’s compact design conserves valuable rack space.
Installation and Configuration
First, insert the IS200ECTBG1ABB carefully into the designated rack slot. Ensure the edge connector seats fully into the backplane socket. Next, connect the field wires to the appropriate terminal points. After that, verify all connections are secure before applying power. You can then test the signal continuity using a multimeter.
Maintenance and Operational Integrity
This board requires minimal maintenance due to its solid-state construction. However, you should periodically inspect the terminal connections for tightness. We recommend you test the isolation integrity during routine maintenance. You should also clean the edge connector contacts if corrosion appears.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 180 × 120 × 20 mm |
