This terminal card manages exciter control signals for GE Mark VI systems. You will find this board in turbine excitation panels worldwide. It provides reliable signal termination between field devices and the main controller.

Technical Specifications

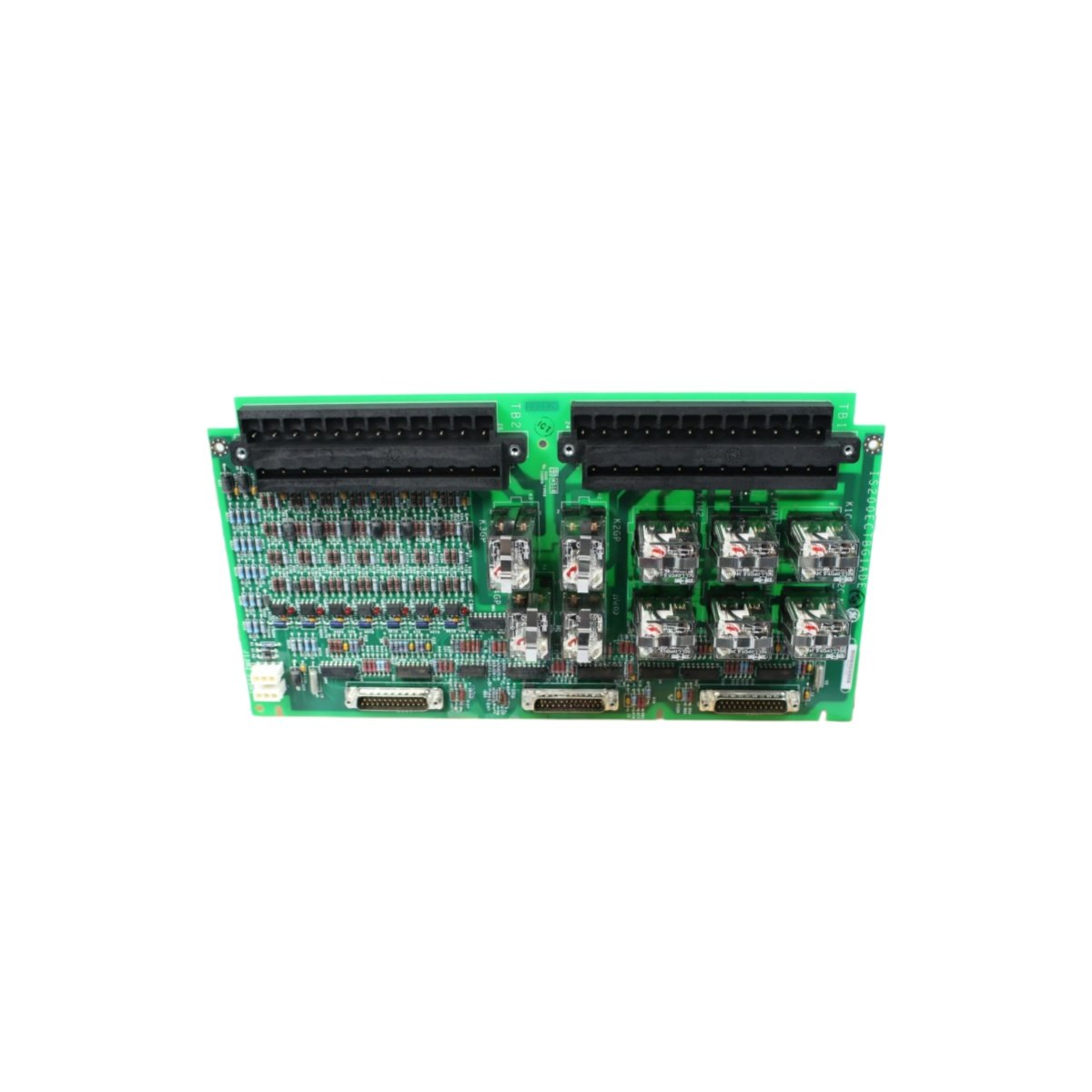

The GE IS200ECTBG1A carries the functional revision IS200ECTBG1ADE on its silkscreen. This board measures 267 mm in length and 152 mm in width. Its total height reaches 25 mm including standoffs. The card weighs approximately 0.52 kg (1.15 lbs). Transition words like firstly and secondly help clarify its connectivity options. Firstly, it houses 48 screw terminal blocks for field wiring. Secondly, two 50-pin ribbon cable headers connect to the main VME processor.

Hardware Parameters

The table below lists all critical technical details for this module.

Functional Features

This GE IS200ECTBG1ADE version includes improved solder pads for better reliability. The onboard 2200 µF capacitor array stores enough energy for brief hold-up. Additionally, each terminal block has a clear label for easy identification. Moreover, gold-plated contacts prevent corrosion in industrial environments. You can mount this card directly onto a DIN rail or backplate.

Installation and Compatibility

The board requires a compatible ribbon cable to the IS200EXCSG1A exciter controller. It replaces older revisions like IS200ECTBG1A without firmware changes. Always torque terminal screws to 0.5 Nm for secure connections. This card does not need external power because the backplane supplies it.For Mark VI systems.48 Screw Terminals
