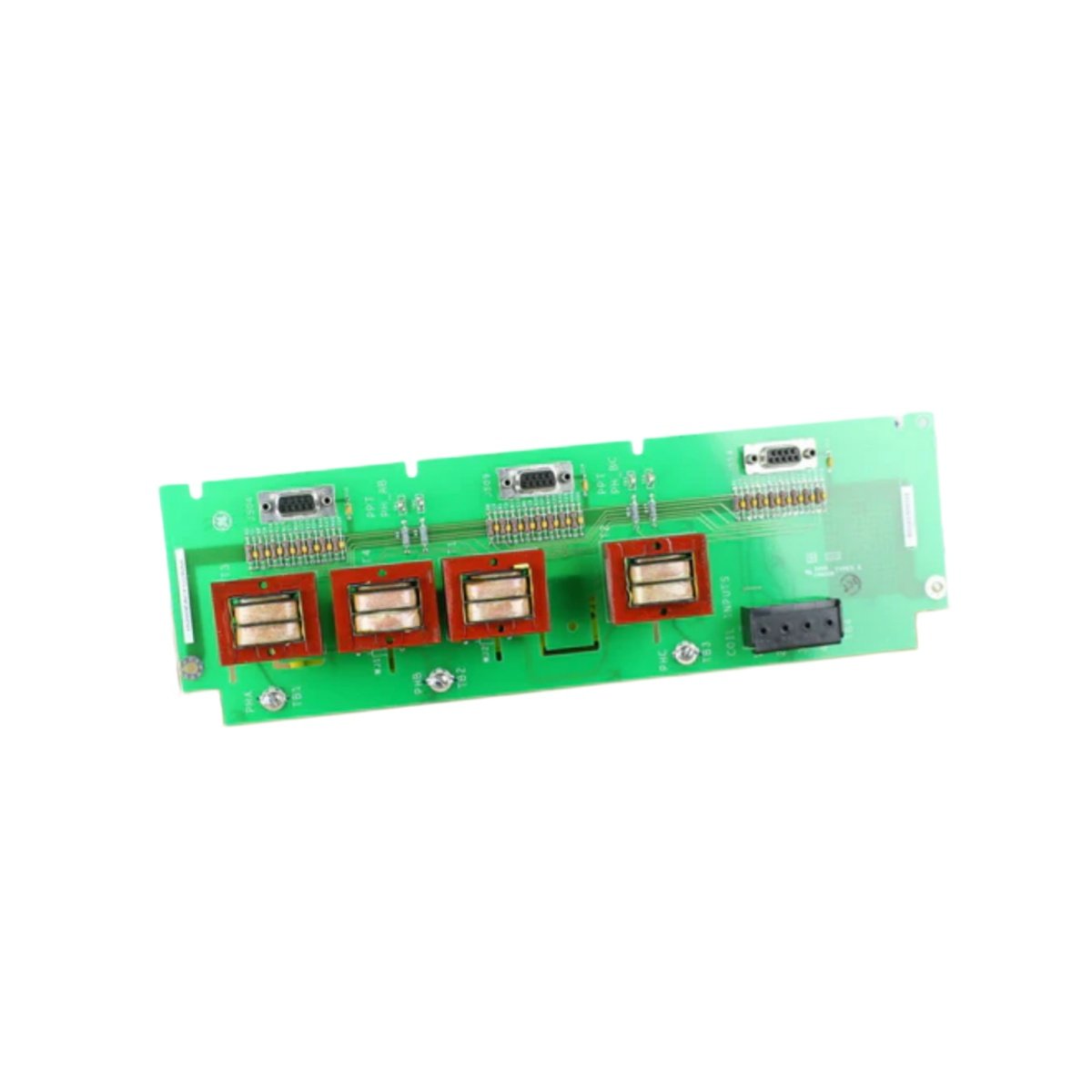

The GE IS200EACFG2B IS200EACFG2BAA Circuit Board manages analog signal conditioning for Mark VI turbine systems. You will find this board in industrial generator control panels and power plants. It provides accurate signal conversion for critical process monitoring applications.
Technical Specifications
The GE IS200EACFG2B IS200EACFG2BAA Circuit Board carries its revision code on the bottom-right silkscreen. This board measures 267 mm in length and 152 mm in width. Its total thickness reaches 22 mm including component height. The card weighs approximately 0.59 kg (1.30 lbs). Transition words like initially and subsequently help explain its conditioning process. Initially, the board receives raw analog signals through ribbon cable headers. Subsequently, its onboard amplifiers scale these signals to proper voltage ranges. Finally, the board filters out high-frequency noise before transmitting data.
Hardware Parameters
The table below lists all critical technical details for this module.
| Parameter | Value |
|---|---|
| Full Model | GE IS200EACFG2B IS200EACFG2BAA |
| Category | Analog Conditioning Circuit Board |
| Dimensions | 267 mm x 152 mm x 22 mm |
| Weight | 0.59 kg (1.30 lbs) |
| Analog Channels | 16 single-ended or 8 differential |
| Input Impedance | 1 MΩ typical per channel |
| Interface Connectors | Two 50-pin ribbon headers, P1 backplane |
| Component Count | 134 discrete components |
| Energy Storage | 820 µF capacitor array |
| Gain Settings | 1, 2, 5, 10 (jumper-selectable) |
| Filter Cutoff | 100 Hz low-pass (software configurable) |
| Operating Voltage | +5V DC and ±15V DC from backplane |
| Power Consumption | 4.5W typical |
| Operating Temp | -30°C to +65°C |
| LED Indicators | Power (green) and channel activity (yellow) |
Functional Features
The GE IS200EACFG2B IS200EACFG2BAA Circuit Board includes an 820 µF capacitor array for signal smoothing. This storage also provides 30 ms of brownout protection for analog circuits. Additionally, each channel has programmable gain for flexible input ranges. Moreover, gold-plated edge fingers resist corrosion in humid environments. You can configure filter settings through software without opening the cabinet.
Installation and Compatibility
This board replaces older revisions like IS200EACFG2A without firmware changes. Always align the card carefully with the VME card guides. The GE IS200EACFG2B IS200EACFG2BAA Circuit Board requires a compatible ribbon cable to the terminal board. Verify jumper settings match your input signal type before powering on.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
