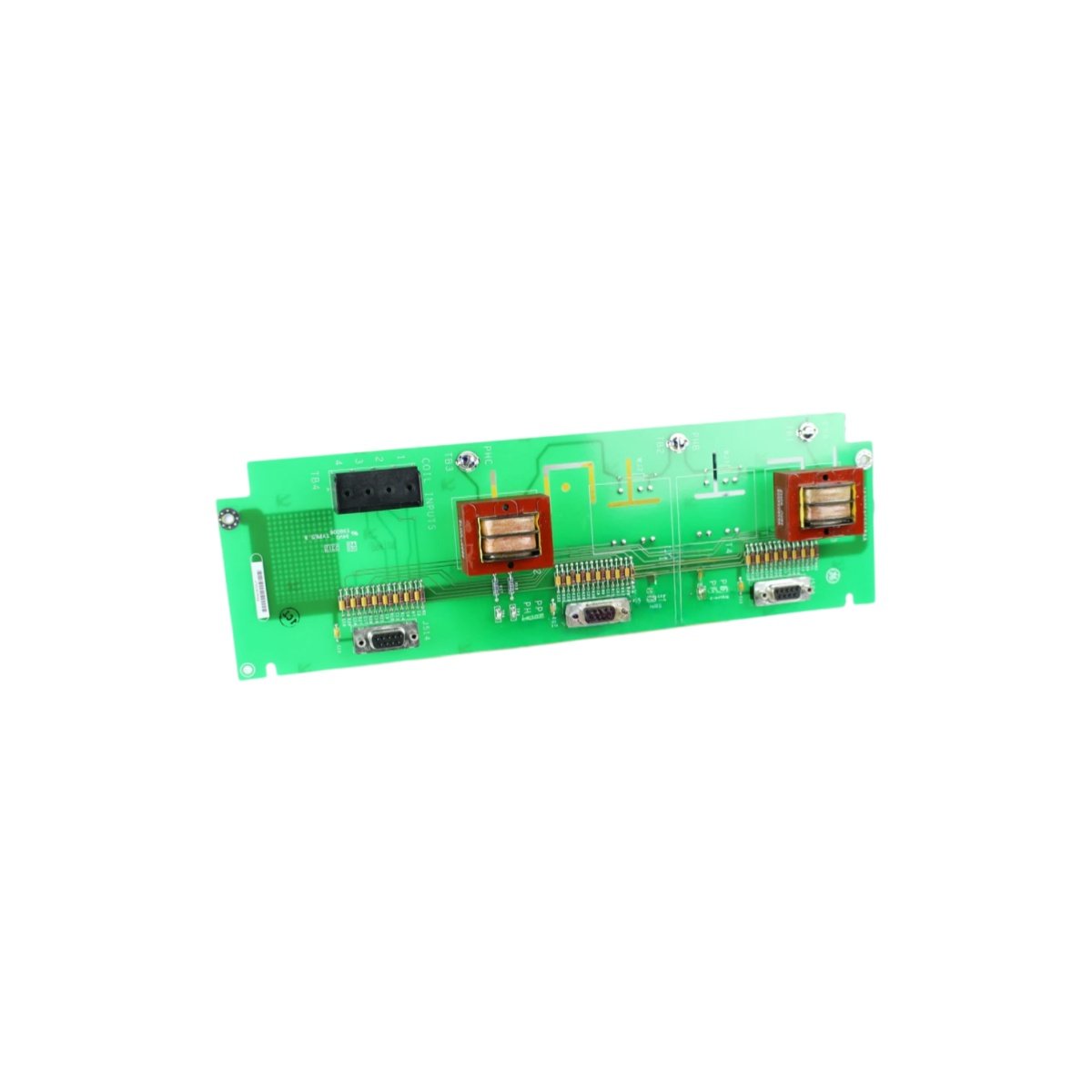

The GE IS200EACFG1B IS200EACFG1BAA circuit board handles analog input conditioning for Mark VI turbine control systems. This board converts field transducer signals into accurate digital data. It connects directly to the VME backplane for high-speed communication. You can use either model number as a direct replacement.

Detailed Technical Specifications

This GE IS200EACFG1B IS200EACFG1BAA circuit board measures 300 mm in length. Its width reaches 205 mm across the main surface. The total height goes up to 34 mm with all components installed. This unit weighs approximately 0.65 kilograms for secure mounting.

Key hardware parameters include:

• Complete Model: GE IS200EACFG1B IS200EACFG1BAA

• Component count: 142 individual electronic parts

• Connector ports: Two 50-pin ribbon cable headers

• Energy storage: Six aluminum capacitors (330 µF each)

• Mounting system: Four reinforced corner brackets

• PCB layers: Six-layer low-noise construction

• Analog inputs: 16 single-ended high-level channels

• Analog inputs: 4 differential low-level channels

• Sampling rate: 60 Hz per channel simultaneously

• Resolution: 14 bits for all input types

The GE IS200EACFG1B IS200EACFG1BAA circuit board stores moderate residual charge after power-off. Therefore, technicians must wait thirty seconds before handling the board. Each high-level input accepts 0-10 V or 4-20 mA signals. Moreover, each low-level input handles ±100 mV from thermocouple sensors.

Application and Installation

The GE IS200EACFG1B IS200EACFG1BAA circuit board mounts horizontally in a Mark VI analog I/O rack. It requires compatible termination boards for field wiring connections. This board accepts signals from pressure, temperature, flow, and vibration sensors. Consequently, you can monitor multiple turbine parameters with one card.

Signal Processing and Reliability

This board filters electrical noise from every analog input channel. Its six-layer PCB design minimizes crosstalk between adjacent signal paths. The GE IS200EACFG1B IS200EACFG1BAA includes a reliable ADC for accurate data conversion. Therefore, you maintain measurement consistency without frequent recalibration.

Always power down the entire rack before inserting or removing this board. Match the ribbon cable orientation carefully to avoid pin damage. The board features diagnostic LEDs for power and communication status. Furthermore, its conformal coating protects against dust and moisture ingress.
