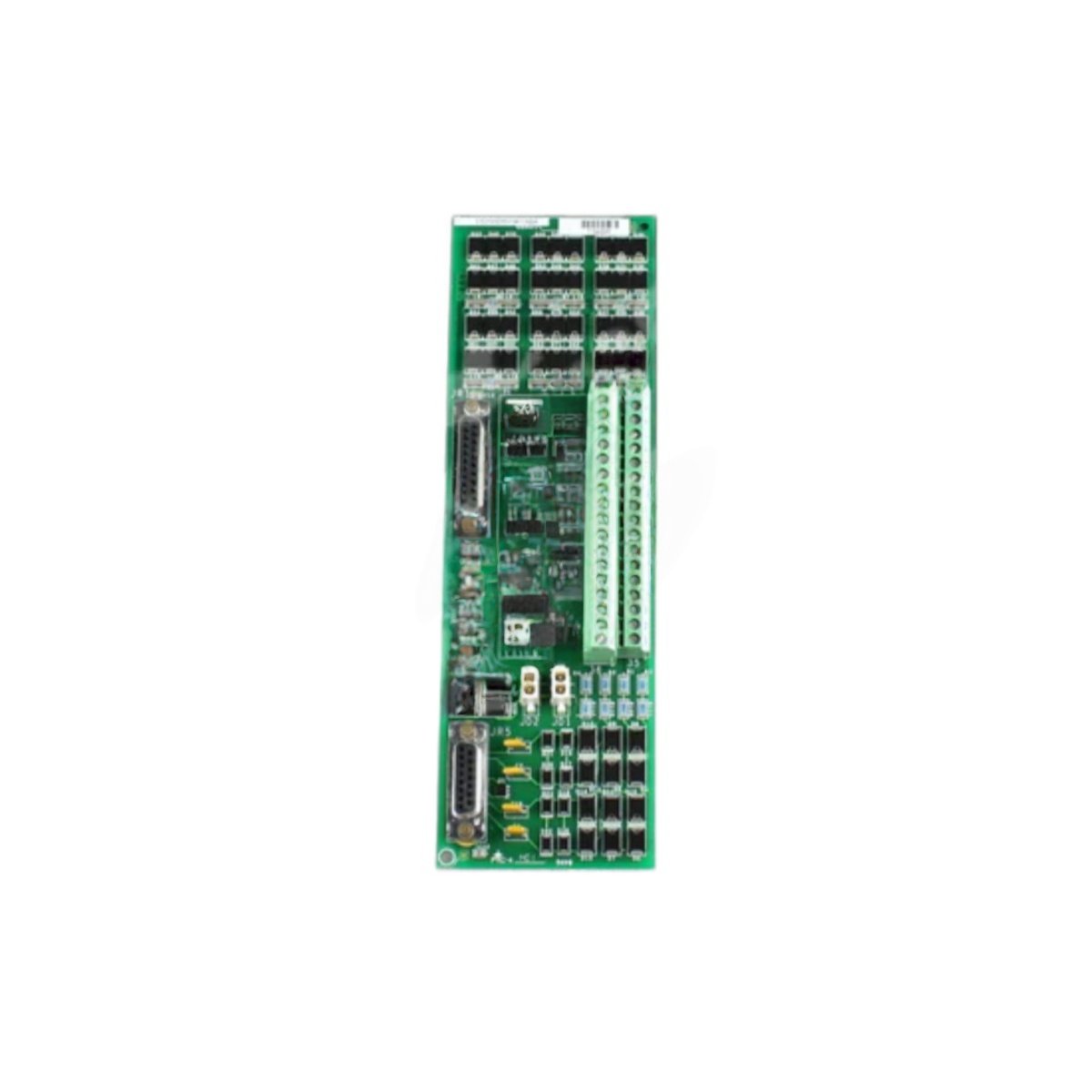

This PCB functions as a dedicated I/O termination board within GE Mark VI systems. You will find the GE IS200DSVOH1A IS200DSVOH1ABA Printed Circuit Board managing signal flow between field devices and the turbine controller. Its passive component layout ensures reliable operation without active cooling.

Technical Specifications Overview

This board includes two terminal blocks for external wiring connections. You can also locate two jumper switches for flexible signal configuration. The GE IS200DSVOH1A IS200DSVOH1ABA Printed Circuit Board stores no battery energy whatsoever. Instead, it uses small multilayer ceramic capacitors for brief signal buffering. Consequently, this board never requires routine battery replacement or disposal.

Electrical Interface Details

The GE IS200DSVOH1A IS200DSVOH1ABA Printed Circuit Board draws its power directly from the backplane connection. Therefore, you do not need any separate external power supply module. Each terminal block accepts standard 12-22 AWG field wiring. Moreover, the board isolates input signals before forwarding them to the main processor. This design reduces electrical noise interference effectively.

Installation Procedure

You must align the GE IS200DSVOH1A IS200DSVOH1ABA Printed Circuit Board carefully with the two plastic guide slots. After full insertion, secure the board using the two metal retaining clips. The board measures exactly 28 centimeters in length and 18 centimeters in width. Its total weight reaches approximately 0.9 kilograms for easy handling. Furthermore, the passive component layout generates very little operational heat.

Storage and Environmental Limits

You should store this GE IS200DSVOH1A IS200DSVOH1ABA Printed Circuit Board in a dry and static-safe bag. The board tolerates ambient temperatures from -30°C to +65°C during storage. Likewise, keep the unit away from conductive dust or high humidity environments. Because the board lacks sensitive optical components, it withstands typical industrial vibration levels.
