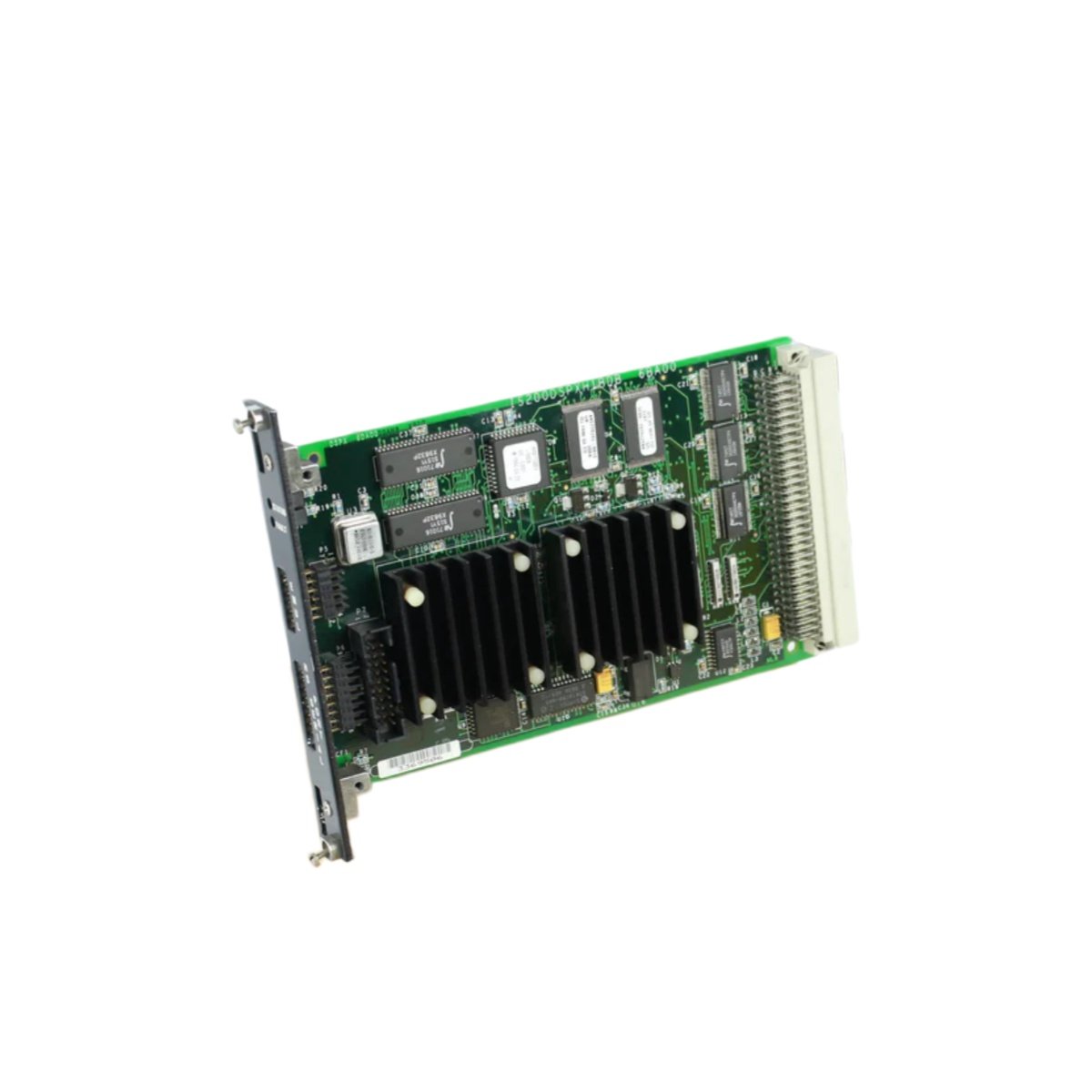

The GE IS200DSPXH1B IS200DSPXH1BDB printed circuit board serves as a digital signal processor for Mark VI systems. This board performs high-speed control calculations for turbine regulation. It interfaces directly with the VME backplane for real-time data exchange. You can use either model number as a direct replacement.
Detailed Technical Specifications
This GE IS200DSPXH1B IS200DSPXH1BDB printed circuit board measures 310 mm in length. Its width reaches 210 mm across the main surface. The total height goes up to 35 mm with all components installed. This unit weighs approximately 0.71 kilograms for secure mounting.
Key hardware parameters include:
Complete Model: GE IS200DSPXH1B IS200DSPXH1BDB
Component count: 168 individual electronic parts
Connector ports: Three high-density DIN connectors
Energy storage: Nine aluminum capacitors (1000 µF each)
Mounting system: Six reinforced screw points
PCB layers: Eight-layer high-speed construction
Processor: 32-bit floating-point DSP core
RAM memory: 4 MB of onboard SRAM
Flash storage: 2 MB for firmware retention
Communication ports: Two serial and one Ethernet interface
The GE IS200DSPXH1B IS200DSPXH1BDB printed circuit board stores significant residual charge after power-off. Therefore, technicians must wait sixty seconds before handling the board. The DSP core operates at 150 MHz for fast control loops. Moreover, the board executes PID calculations every 2 milliseconds.
| Technical Parameter | Specification |
|---|---|
| Full Model Number | GE IS200DSPXH1B IS200DSPXH1BDB |
| Board Dimensions | 310 mm x 210 mm x 35 mm |
| Weight | 0.71 kg |
| Total Components | 168 units |
| Connector Ports | 3 high-density DIN ports |
| Energy Storage Caps | 9 x 1000 µF (aluminum) |
| Processor Type | 32-bit floating-point DSP |
| SRAM Memory | 4 MB |
| Flash Storage | 2 MB |
| Core Frequency | 150 MHz |
| Operating Temperature | -20°C to +65°C |
| Humidity Tolerance | 5% to 95% non-condensing |
Application and Installation
The GE IS200DSPXH1B IS200DSPXH1BDB printed circuit board mounts vertically in a Mark VI processor rack. It requires proper cooling airflow for reliable operation. This board executes speed, load, and temperature control algorithms. Consequently, it maintains stable turbine operation under varying conditions.
Processing Power and Reliability
This board uses error-correcting code memory for data integrity. Its eight-layer PCB design minimizes signal reflections at high frequencies. The GE IS200DSPXH1B IS200DSPXH1BDB includes a watchdog timer for automatic reset on fault. Therefore, the system recovers from software glitches without human intervention.
Always power down the entire rack before inserting or removing this board. Verify that all firmware matches your system revision level. The board features diagnostic LEDs for power, run, and fault status. Furthermore, its conformal coating protects against dust and moisture ingress.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
