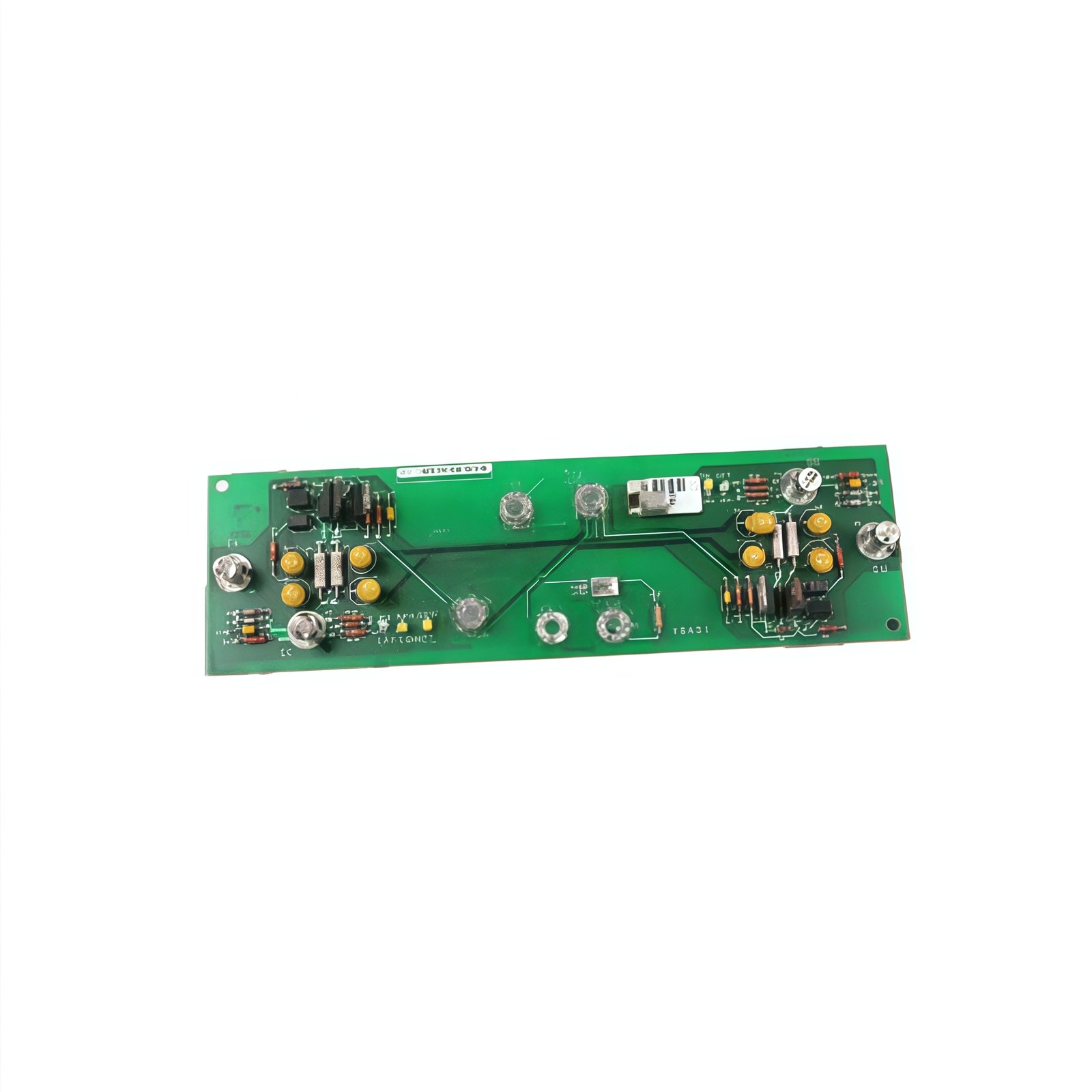

The GE IS200DAMCG1A IS200DAMCG1ACB PCB Circuit Board manages data acquisition for Mark VI turbine systems. You will find this board in industrial generator control panels and power plants. It provides accurate analog-to-digital conversion for critical process signals.
Technical Specifications
The GE IS200DAMCG1A IS200DAMCG1ACB PCB Circuit Board carries its revision clearly on the upper edge. This board measures 267 mm in length and 152 mm in width. Its total thickness reaches 23 mm including component height. The card weighs approximately 0.62 kg (1.37 lbs). Transition words like initially and subsequently help explain its conversion process. Initially, the board receives analog signals from field sensors. Subsequently, its onboard ADC converts these signals into digital data. Finally, the processor reads this data through the VME backplane.
Hardware Parameters
The table below lists all critical technical details for this module.
| Parameter | Value |
|---|---|
| Full Model | GE IS200DAMCG1A IS200DAMCG1ACB |
| Category | Data Acquisition PCB |
| Dimensions | 267 mm x 152 mm x 23 mm |
| Weight | 0.62 kg (1.37 lbs) |
| Analog Inputs | 16 differential channels |
| ADC Resolution | 16-bit sigma-delta converter |
| Sampling Rate | 100 samples per second per channel |
| Interface Connectors | One 50-pin ribbon header, P1 backplane |
| Component Count | 178 discrete components |
| Energy Storage | 1200 µF capacitor array |
| Input Range | 0-10V, ±10V, 4-20 mA |
| Accuracy | ±0.05% of full scale |
| Operating Temp | -30°C to +65°C |
| LED Indicators | Power (green) and data activity (yellow) |
Functional Features
The GE IS200DAMCG1A IS200DAMCG1ACB PCB Circuit Board includes a 1200 µF capacitor array for noise filtering. This storage also provides 25 ms of brownout protection for the ADC. Additionally, each input channel has programmable gain amplifiers. Moreover, gold-plated edge fingers resist oxidation in humid environments. You can configure input ranges through software without jumpers.
Installation and Compatibility
This board replaces older revisions like IS200DAMCG1A without firmware updates. Always align the card carefully with the VME card guides. The GE IS200DAMCG1A IS200DAMCG1ACB PCB Circuit Board requires a compatible ribbon cable to the terminal board. Verify proper grounding before you power up the system.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
