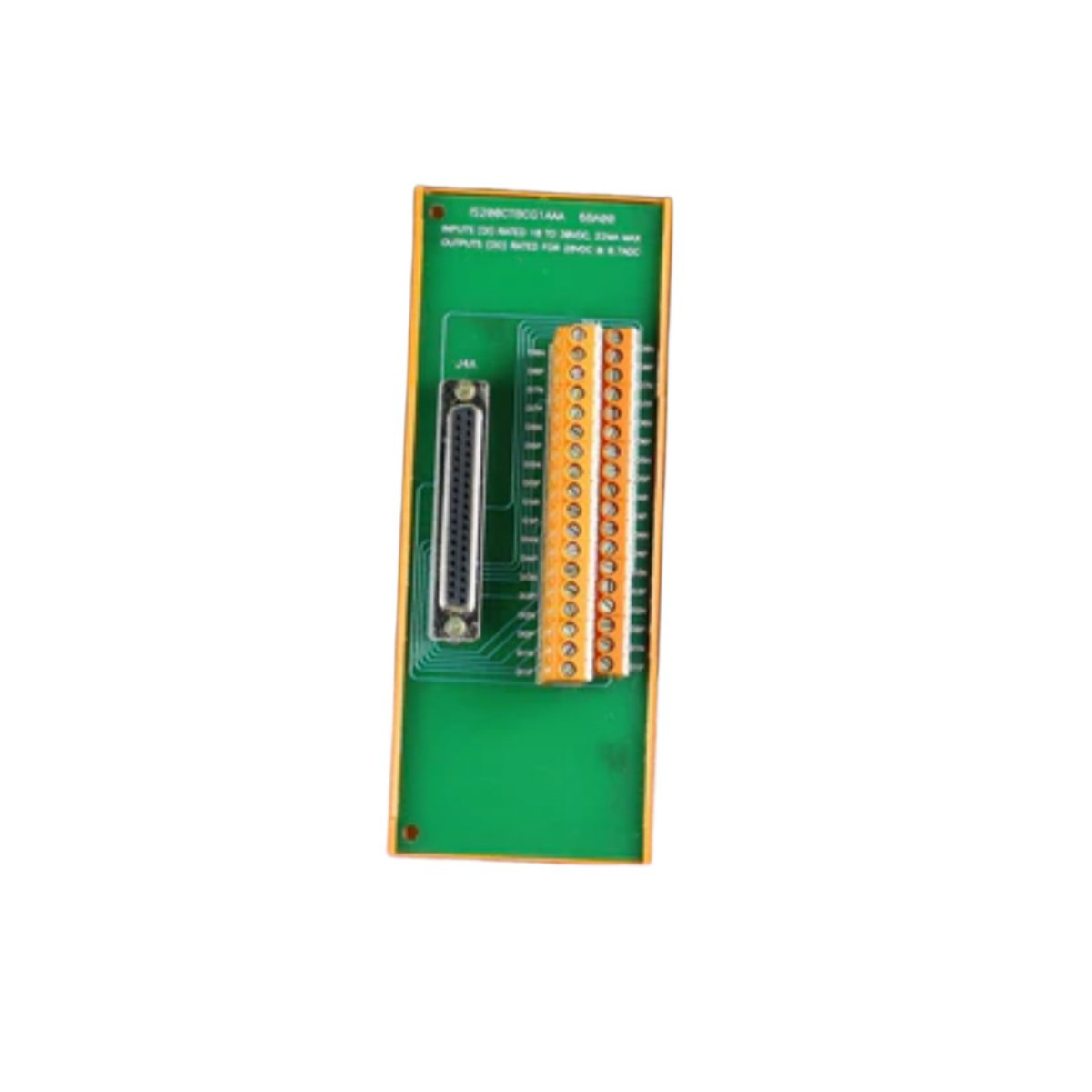

This terminal board manages field device connections for GE Mark VI control systems. You will find the GE IS200CTBCG1A IS200CTBCG1AAA I/O Terminal Board routing critical signals between turbines and the main controller. Its compact layout saves valuable cabinet space during installation.

Technical Specifications

This board includes three terminal blocks for external wiring terminations. You can also locate two jumper switches for flexible signal configuration. The GE IS200CTBCG1A IS200CTBCG1AAA I/O Terminal Board stores no battery energy for data retention. Instead, it uses small ceramic capacitors for minimal transient buffering. Therefore, this board never requires any routine battery replacement.

Electrical Interface Details

The GE IS200CTBCG1A IS200CTBCG1AAA I/O Terminal Board draws no power independently from the system. Instead, passive components condition signals passing through the board. Each terminal block accepts standard 14-22 AWG field wiring for easy connections. Moreover, the board provides surge suppression for each input channel. This design protects downstream electronics from voltage spikes effectively.

Mechanical Integration and Mounting

You must align the GE IS200CTBCG1A IS200CTBCG1AAA I/O Terminal Board carefully with the mounting holes. After positioning, secure the board using four standard M3 screws. The board measures exactly 25.4 centimeters in length and 15.2 centimeters in width. Its total weight reaches approximately 0.8 kilograms for straightforward handling. Furthermore, the board’s passive design generates absolutely no operational heat.

Environmental and Storage Guidelines

You should store this GE IS200CTBCG1A IS200CTBCG1AAA I/O Terminal Board in a dry and static-free bag. The board tolerates ambient temperatures from -30°C to +65°C during storage. Likewise, keep the unit away from conductive dust or condensing humidity. Because the board contains no sensitive processors, it withstands typical industrial vibration levels.
