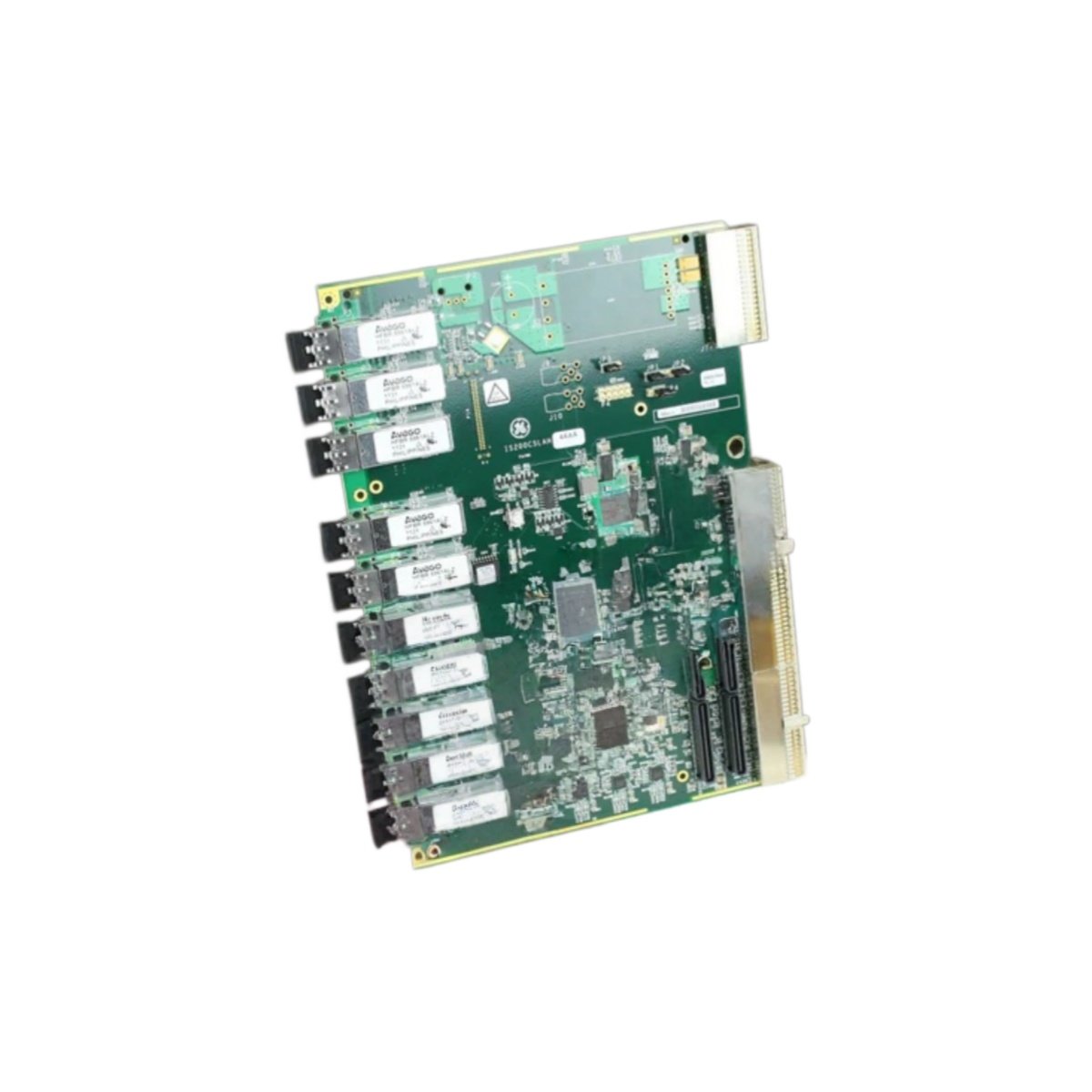

This expander card increases communication port capacity for GE Mark VI systems. You will find the GE IS200CSLAH4A IS200CSLAH4AAA HSSL Expander Card managing high-speed serial link connections between multiple control modules. Its compact design fits efficiently into crowded VME backplane configurations.

Technical Specifications

This card provides four additional HSSL ports for peripheral device connections. You can also locate two configuration switches for network addressing adjustments. The GE IS200CSLAH4A IS200CSLAH4AAA HSSL Expander Card stores no battery energy for data retention purposes. Instead, it uses small buffer capacitors for brief signal stabilization. Therefore, this card never needs any routine battery replacement throughout its service life.

Communication Interface Details

The GE IS200CSLAH4A IS200CSLAH4AAA HSSL Expander Card draws its operating power directly from the VME backplane. Therefore, you do not need any separate external power source for this card. Each HSSL port supports data rates up to 100 Mbps for fast communication. Moreover, the card includes built-in termination resistors for each serial link. This design eliminates external termination components and saves installation time.

Mechanical Integration and Mounting

You must align the GE IS200CSLAH4A IS200CSLAH4AAA HSSL Expander Card carefully with the two plastic card guides. After full insertion, secure the card using the metal ejector tabs at the front edge. The card measures exactly 22.0 centimeters in length and 17.5 centimeters in width. Its total weight reaches approximately 0.6 kilograms for easy handling during replacement. Furthermore, the card’s low-profile design leaves adjacent slots unobstructed.

Environmental and Storage Guidelines

You should store this GE IS200CSLAH4A IS200CSLAH4AAA HSSL Expander Card in an anti-static bag away from dust. The card operates reliably between -30°C and +65°C ambient temperature. Likewise, keep the unit away from condensing humidity or conductive contaminants. Because the card uses no fans or moving parts, it requires zero regular maintenance.
