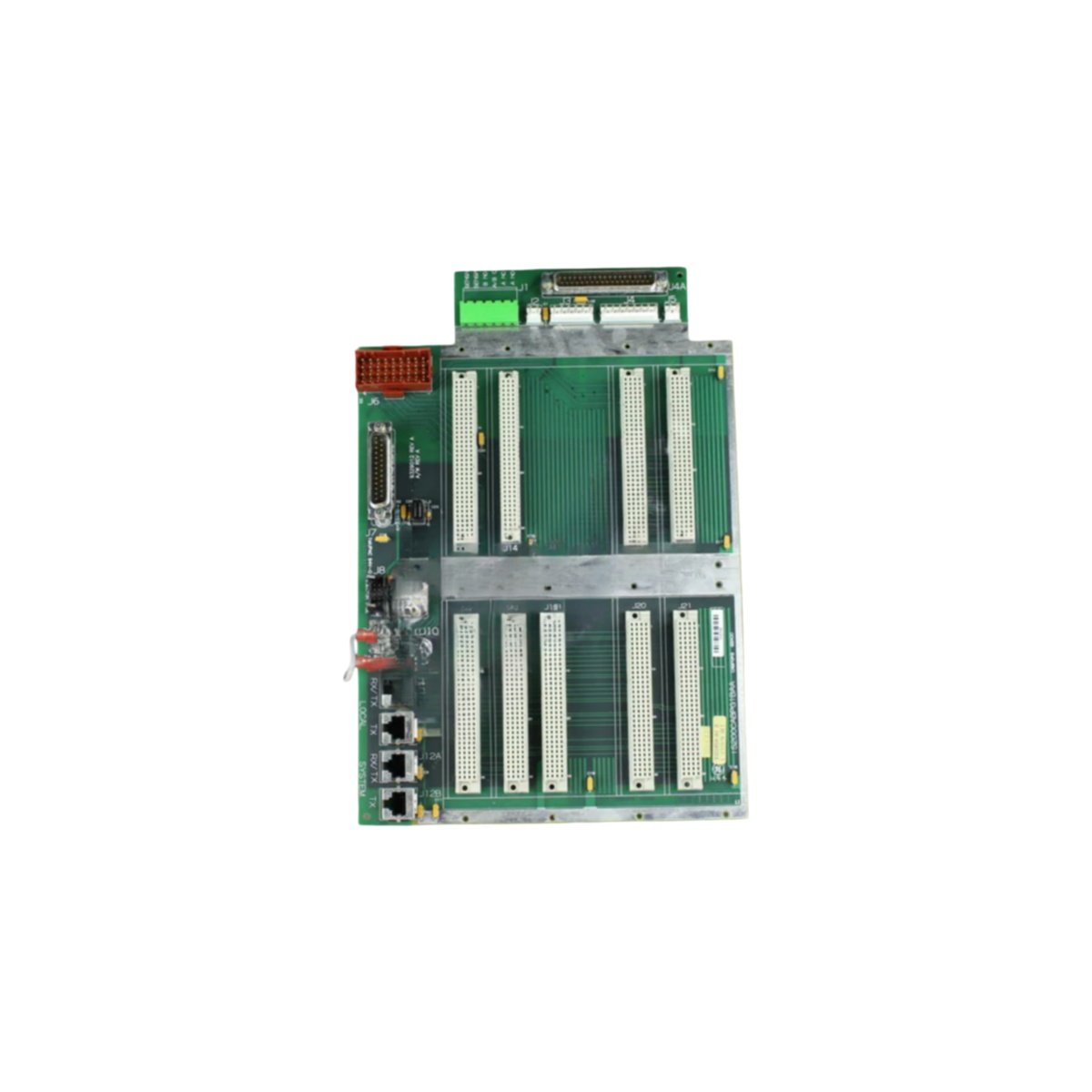

This backplane provides mechanical support and signal routing for Mark VI control cards. You will find the GE IS200CABPG1B IS200CABPG1BAA Control Assembly Backplane connecting multiple I/O modules within a single rack. Its multilayer design ensures clean signal distribution across all slots.

Technical Specifications

This backplane contains ten card edge connectors for module insertion. You can also locate four mounting holes for secure rack attachment. The GE IS200CABPG1B IS200CABPG1BAA Control Assembly Backplane stores no battery energy whatsoever. Instead, it relies entirely on passive copper traces for signal transmission. Consequently, this backplane requires no power supply of its own.

Signal Routing and Electrical Interface

The GE IS200CABPG1B IS200CABPG1BAA Control Assembly Backplane distributes both power and data across all ten slots. Each connector provides 96 pins for complete signal transfer between cards. You can install up to five dual-slot modules simultaneously on this backplane. Moreover, the board includes dedicated voltage planes for 5V, 12V, and 24V distribution. This arrangement reduces external wiring requirements significantly.

Mechanical Integration and Mounting

You must mount the GE IS200CABPG1B IS200CABPG1BAA Control Assembly Backplane inside a standard 19-inch rack. After positioning, secure the board using four M4 screws through the mounting holes. The backplane measures exactly 35.0 centimeters in length and 25.0 centimeters in width. Its total weight reaches approximately 1.8 kilograms for stable mechanical support. Furthermore, the board includes reinforced card guides at each connector position.

Environmental and Storage Guidelines

You should store this GE IS200CABPG1B IS200CABPG1BAA Control Assembly Backplane on a flat anti-static surface away from moisture. The backplane operates reliably between -30°C and +65°C ambient temperature. Likewise, keep the unit away from conductive dust or metal shavings. Because the backplane contains no active components, it offers exceptional long-term reliability with zero maintenance.
