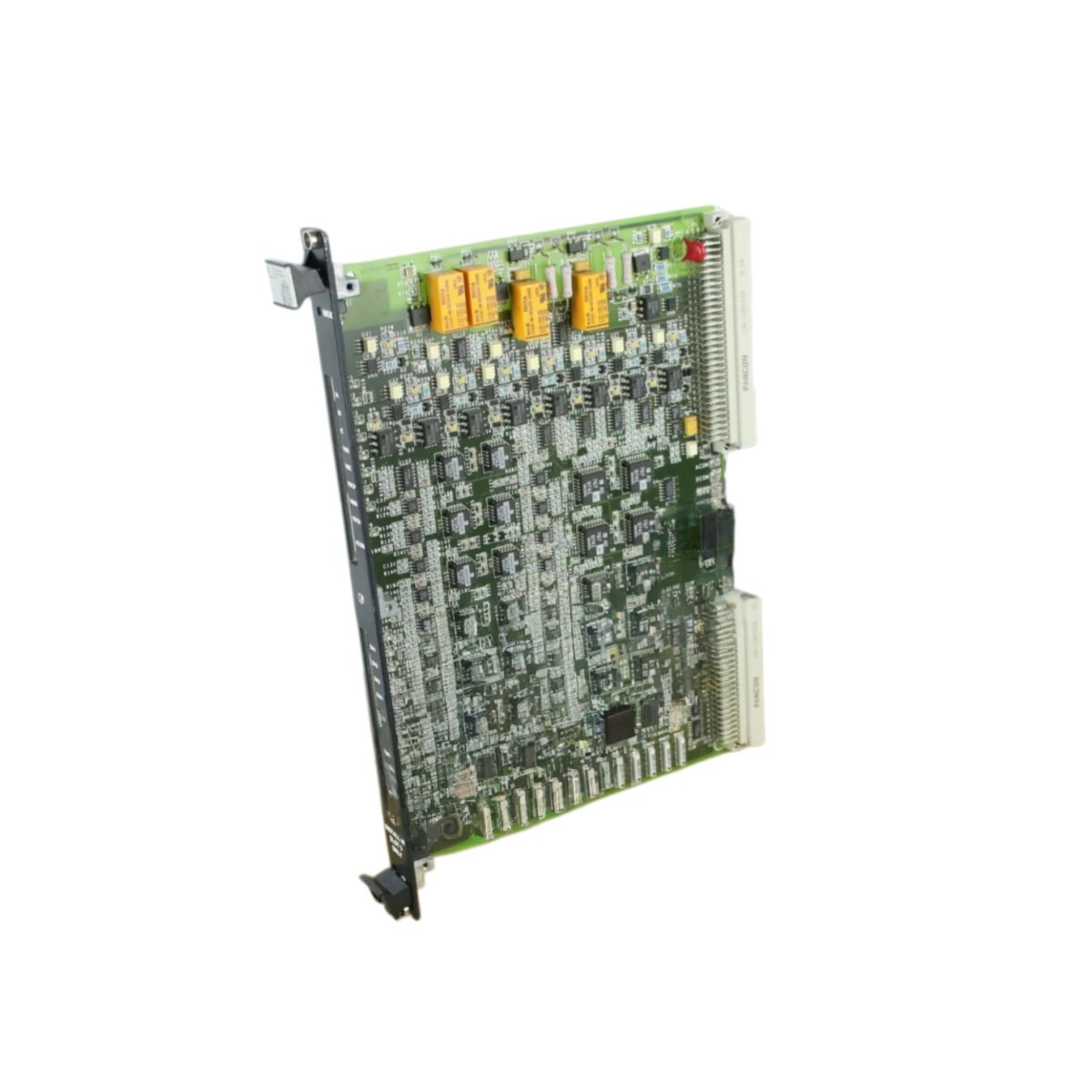

This PCB functions as a bridge interface card for GE Mark VI turbine systems. You will find the GE IS200BICMH1A IS200BICMH1AAA Printed Circuit Board managing communication between main processors and I/O subsystems. Its compact single-wide design saves valuable rack space for other modules.
Technical Specifications
This board contains one high-speed bridge controller chip for data routing. You can also locate three ribbon cable headers for external device connections. The GE IS200BICMH1A IS200BICMH1AAA Printed Circuit Board stores no battery energy for configuration retention whatsoever. Instead, it uses small decoupling capacitors for power supply noise filtering only. Therefore, this board never needs any routine battery replacement.
| Parameter | Specification |
|---|---|
| Full Product Name | GE IS200BICMH1A IS200BICMH1AAA Printed Circuit Board |
| Series | Mark VI |
| Board Type | Bridge Interface Card |
| Weight | 0.58 kg |
| Length | 22.0 cm |
| Width | 16.5 cm |
| Bridge Controller | 1 |
| Ribbon Cable Headers | 3 (50-pin each) |
| Status LEDs | 2 (green/amber) |
| Test Points | 6 |
| Energy Storage | Decoupling capacitors only |
Signal Interface Details
The GE IS200BICMH1A IS200BICMH1AAA Printed Circuit Board draws its operating power directly from the VME backplane. Therefore, you do not need any separate external power source for this card. Each ribbon header connects to different I/O termination panels using standard flat cables. Moreover, the bridge controller supports bidirectional data flow at high speeds. This design minimizes communication delays between processor and field devices.
Mechanical Integration and Mounting
You must align the GE IS200BICMH1A IS200BICMH1AAA Printed Circuit Board carefully with the two plastic card guides. After full insertion, secure the board using the metal ejector lever at the front panel. The board measures exactly 22.0 centimeters in length and 16.5 centimeters in width. Its total weight reaches approximately 0.58 kilograms for easy handling during replacement. Furthermore, the board includes two status LEDs for quick diagnostic checks.
Environmental and Storage Guidelines
You should store this GE IS200BICMH1A IS200BICMH1AAA Printed Circuit Board in an anti-static bag away from moisture. The board operates reliably between -30°C and +65°C ambient temperature. Likewise, keep the unit away from conductive dust or condensing humidity. Because the board uses no moving parts or batteries, it requires zero regular maintenance.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
