The GE IS200BAIAH1B IS200BAIAH1BEE assembly module integrates multiple I/O functions into one compact unit. This module handles analog inputs, discrete signals, and communication tasks simultaneously. You will find this unit inside a standard Mark VI Speedtronic rack. It simplifies system design by reducing the number of required boards.

Technical Specifications

The table below lists accurate parameters for this assembly module.

Physical Layout and Component Arrangement

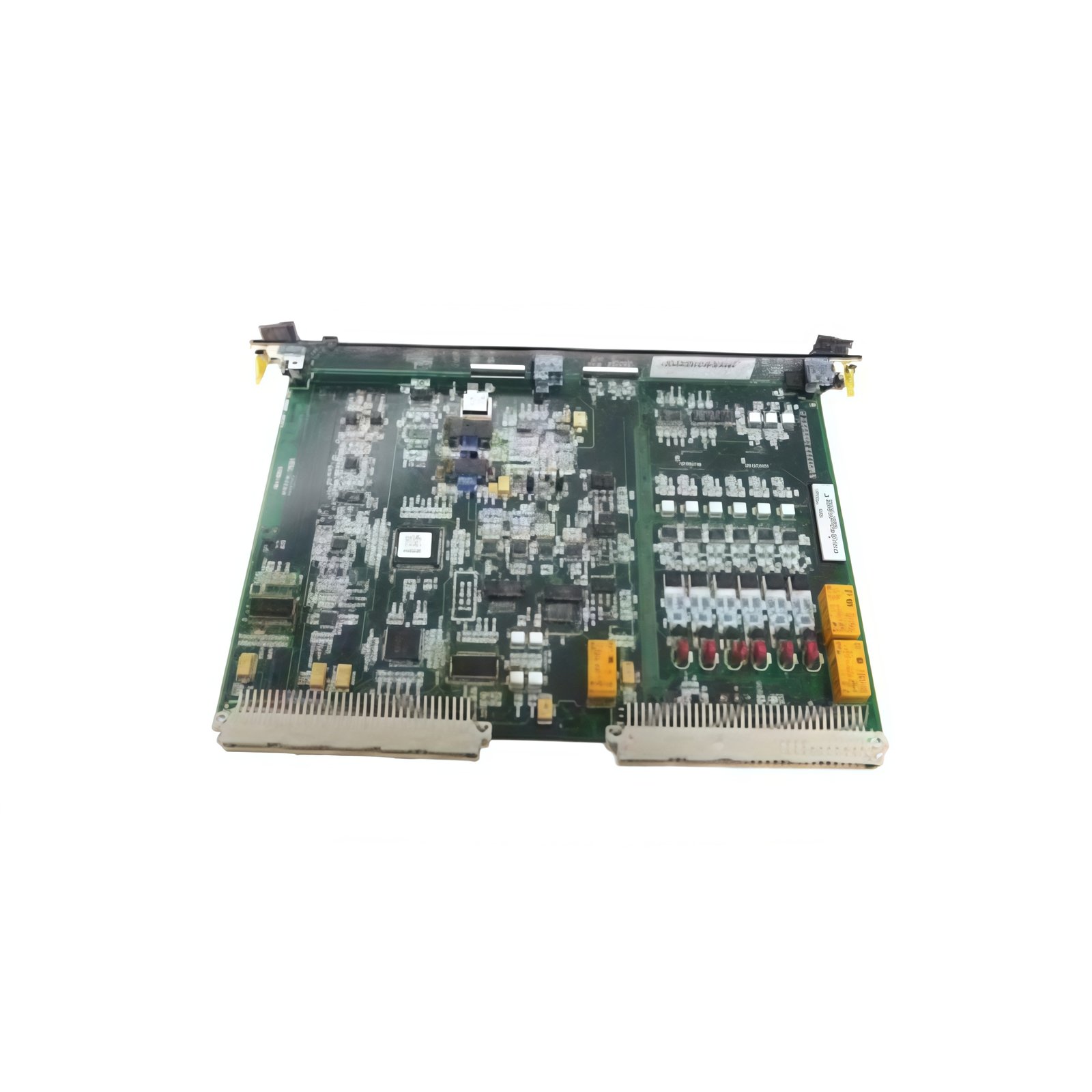

The GE IS200BAIAH1B IS200BAIAH1BEE assembly module uses a rigid epoxy substrate. One main microcontroller occupies the upper center position. Seven capacitors provide power decoupling across all functional sections. Fourteen resistors manage signal levels for various input channels. Two backplane connectors anchor this module securely into the Mark VI rack. Two separate terminal blocks handle field wiring for sensors and actuators.

Functional Features and Integration

This assembly module scans all input channels every 10 milliseconds. It packs the collected data into a single backplane message. The GE IS200BAIAH1B IS200BAIAH1BEE also executes simple logic before sending outputs to field devices. Consequently, it reduces processing load on the main turbine controller.

Installation and Safe Handling

Always power down the rack before installing this assembly module. Hold the GE IS200BAIAH1B IS200BAIAH1BEE firmly by its non-conductive edges. Push the module straight down until both backplane connectors lock into place. Then connect all field wires to the appropriate terminal blocks. After installation, verify module identification through the Mark VI software interface.
