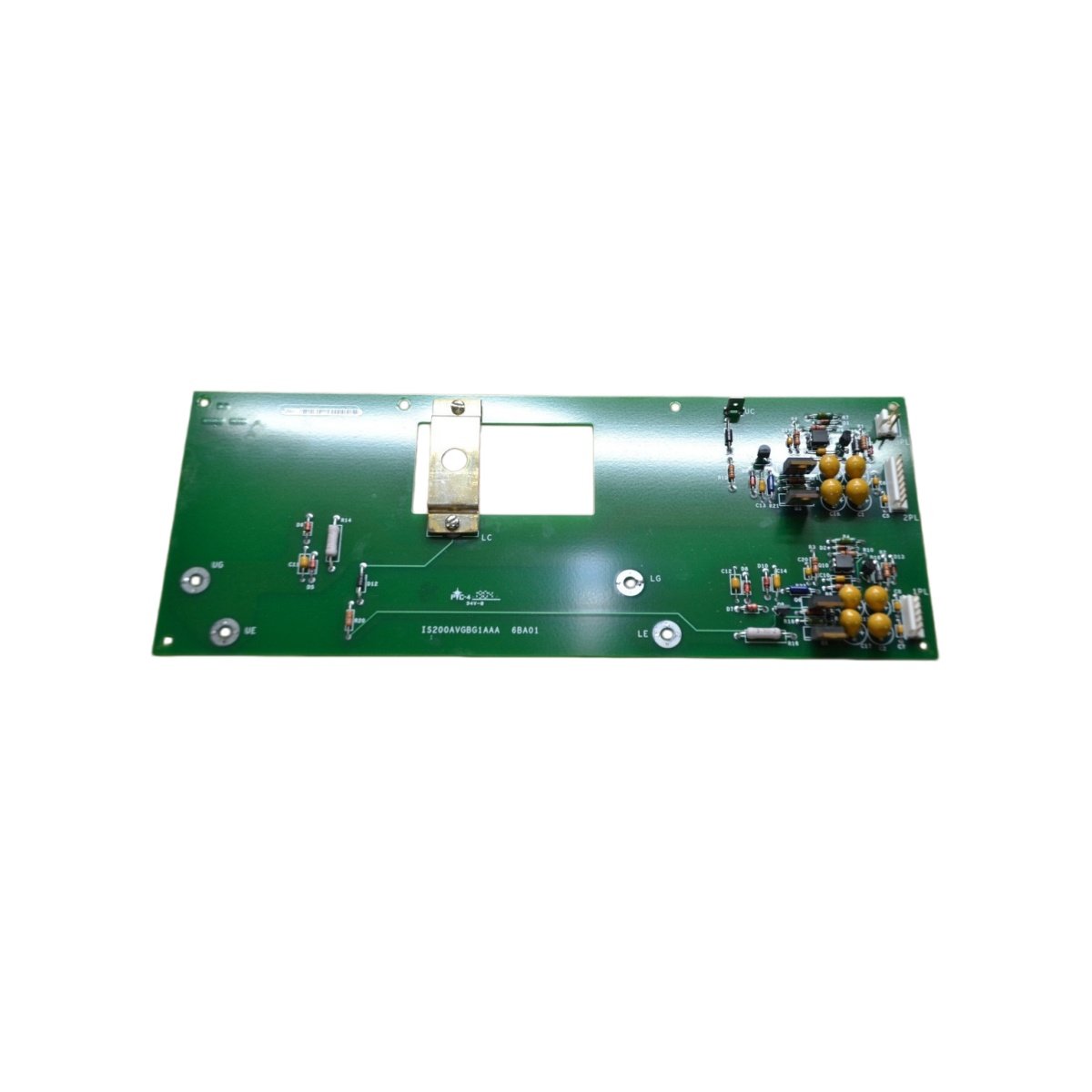

This vibration monitor board safeguards rotating machinery within GE Speedtronic systems. You will find the GE IS200AVGBG1A IS200AVGBG1AAA Speedtronic board analyzing signals from proximity probes and accelerometers. Its dedicated processing engine detects subtle shaft movements before they cause damage.

Technical Specifications

This board contains four independent vibration input channels for sensor connectivity. You can also locate two relay outputs for alarm or trip activation. The GE IS200AVGBG1A IS200AVGBG1AAA Speedtronic board stores minimal energy within its input coupling capacitors. These capacitors discharge automatically within thirty seconds after power removal. Consequently, the board poses no extended electrical hazard during maintenance.

Signal Processing Details

The GE IS200AVGBG1A IS200AVGBG1AAA Speedtronic board draws its operating power from the VME backplane. Each channel accepts signals from eddy current probes or seismic accelerometers. You can configure alarm thresholds individually through onboard potentiometers. Moreover, the board performs real-time peak detection for each vibration input. This design triggers relay outputs within two milliseconds of exceeding setpoints.

Mechanical Integration and Mounting

You must align the GE IS200AVGBG1A IS200AVGBG1AAA Speedtronic board carefully with the two plastic card guides. After full insertion, secure the board using the metal ejector lever at the front panel. The board measures exactly 25.0 centimeters in length and 17.5 centimeters in width. Its total weight reaches approximately 0.68 kilograms for easy handling during replacement. Furthermore, the board includes four status LEDs for individual channel monitoring.

Environmental and Storage Guidelines

You should store this GE IS200AVGBG1A IS200AVGBG1AAA Speedtronic board in an anti-static bag away from vibration. The board operates reliably between -30°C and +65°C ambient temperature. Likewise, keep the unit away from conductive dust or strong magnetic fields. Because the board uses solid-state components only, it requires zero regular maintenance over its service life.
