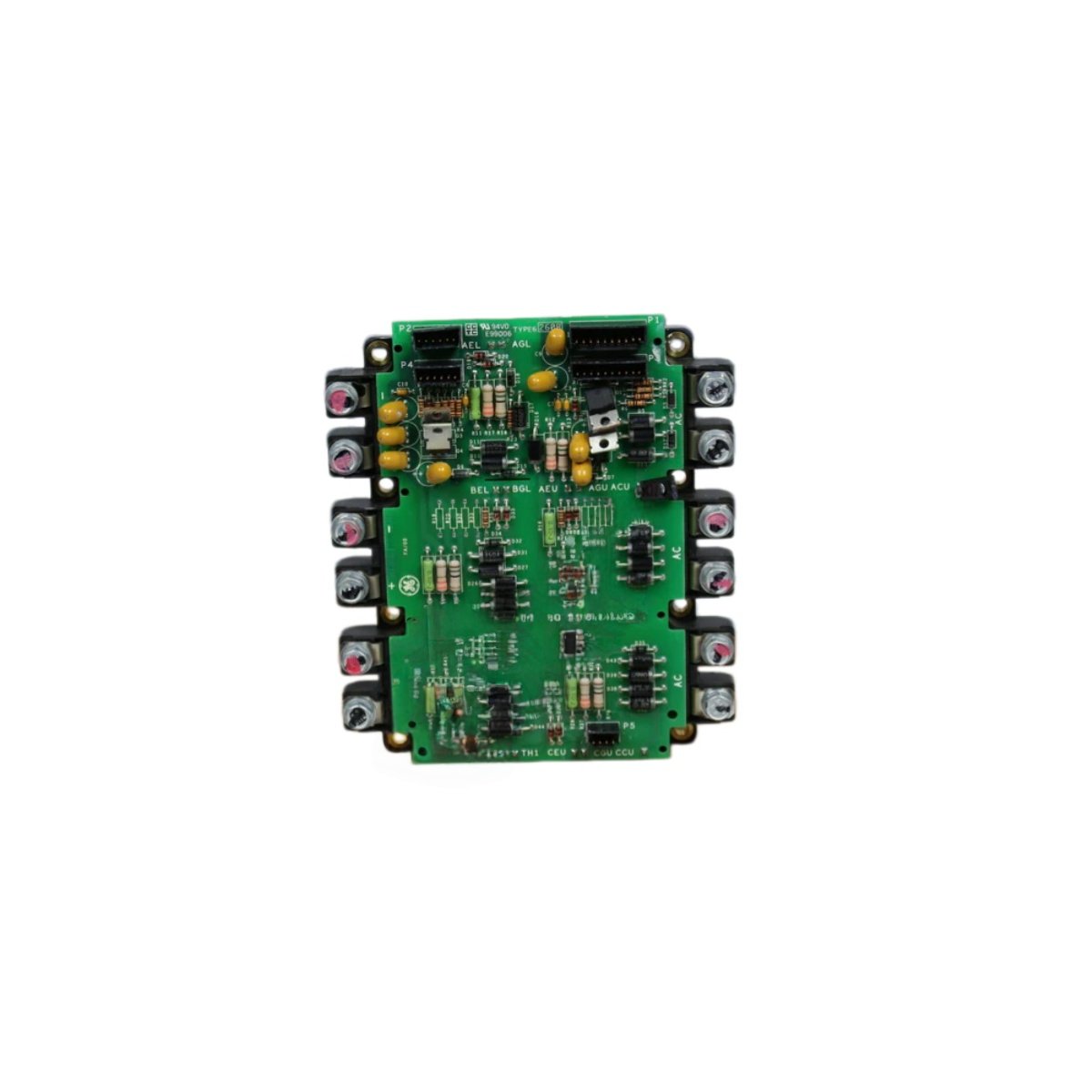

The GE IS200AEBMG1A IS200AEBMG1AFB Analog Output Module generates precise analog control signals for Mark VI systems. You will find this board in turbine control cabinets and generator excitation panels. It drives actuators, valves, and positioners with high-resolution current or voltage outputs.
Technical Specifications
The GE IS200AEBMG1A IS200AEBMG1AFB Analog Output Module carries its revision code clearly on the front edge. This board measures 267 mm in length and 152 mm in width. Its total thickness reaches 25 mm including component height. The card weighs approximately 0.63 kg (1.39 lbs). Transition words like first and then help explain its output generation. First, the module receives digital commands from the main processor. Then, its onboard DACs convert these commands to analog signals. Finally, the output drivers amplify signals to the required field levels.
Hardware Parameters
The table below lists all critical technical details for this module.
| Parameter | Value |
|---|---|
| Full Model | GE IS200AEBMG1A IS200AEBMG1AFB |
| Category | Analog Output Module |
| Dimensions | 267 mm x 152 mm x 25 mm |
| Weight | 0.63 kg (1.39 lbs) |
| Output Channels | 8 isolated analog outputs |
| Output Types | 4-20 mA current or 0-10V voltage |
| DAC Resolution | 16-bit per channel |
| Accuracy | ±0.1% of full scale at 25°C |
| Interface Connectors | One 50-pin ribbon header, P1 backplane |
| Component Count | 167 discrete components |
| Energy Storage | 680 µF capacitor bank |
| Current Drive | 750Ω maximum load (4-20 mA mode) |
| Settling Time | 5 ms to 0.1% accuracy |
| Operating Temp | -30°C to +65°C |
| LED Indicators | Power (green) and 8 channel status LEDs |
Functional Features
The GE IS200AEBMG1A IS200AEBMG1AFB Analog Output Module includes a 680 µF capacitor bank for output stability. This storage also provides 25 ms of brownout protection for active channels. Additionally, each output has short-circuit protection and diagnostic feedback. Moreover, gold-plated edge fingers ensure reliable backplane connections. You can configure output ranges individually through software without jumpers.
Installation and Compatibility
This module replaces older revisions like IS200AEBMG1A without firmware updates. Always verify output wiring matches the terminal board labeling. The GE IS200AEBMG1A IS200AEBMG1AFB Analog Output Module requires a compatible ribbon cable to the termination board. Do not connect external voltage sources to any output channel.
