Core Functionality and Application
The GE IC754VGI06STD operator interface terminal provides a compact and reliable HMI solution for industrial automation environments. This 6-inch panel enables real-time process visualization, operator data entry, and effective alarm management directly on the factory floor. It connects seamlessly to PLCs, drives, and other control devices through multiple communication options. The terminal comes factory-loaded with essential runtime software, which allows for immediate deployment after configuration.
Technical Specifications
The following table details the core technical parameters for the GE IC754VGI06STD:

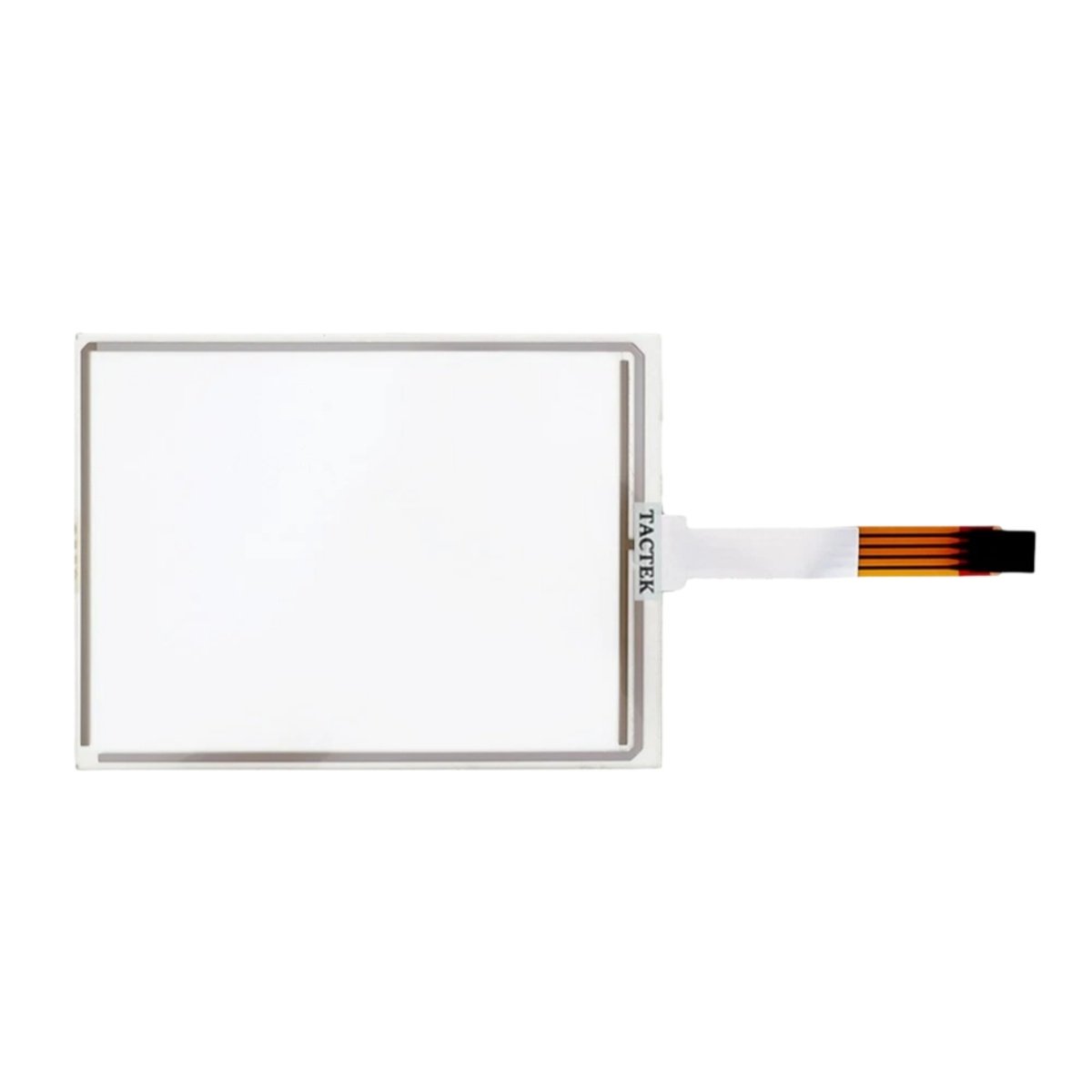

| Parameter | Specification |
|---|---|
| Model Number | IC754VGI06STD |
| Product Type | Operator Interface Terminal / HMI |
| Display Size | 6 inches |
| Display Type | STN Color LCD |
| Resolution | 320 x 240 pixels (QVGA) |
| Touch Technology | Analog Resistive |
| Processor | Intel XScale PXA255, 300 MHz |
| Memory | 32 MB Flash, 32 MB SDRAM (expandable via CF slot) |
| Communication Ports | RS-232, RS-485, 10/100 Ethernet |
| Input Power | 12 – 30 VDC (24V nominal), 12W |
| Dimensions (W × H × D) | 215.9 × 169.6 × 28.7 mm (8.50 × 6.68 × 1.13 in) |
| Weight | 1.16 kg (2.5 lbs) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Protection Rating | NEMA 4, 4X, 12 / IP65 (front panel) |
| Backlight Type | CCFL with 40,000-hour half-life |
| Battery | Lithium coin cell for SRAM retention |
| Certifications | CE, c-UL, ATEX |
Design and Integration Features
The GE IC754VGI06STD features a sturdy panel-mount design with a NEMA 4/4X/12-rated front bezel for harsh industrial conditions. An internal battery-backed SRAM retains critical data and application states during power interruptions. Moreover, the device includes a Type 2 CompactFlash slot for flexible memory expansion up to 64MB. The panel supports two different cutout sizes for versatile installation in new or existing enclosures. This HMI’s low 12W power draw, combined with its compact footprint, makes it ideal for space-constrained applications.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
