Product Overview

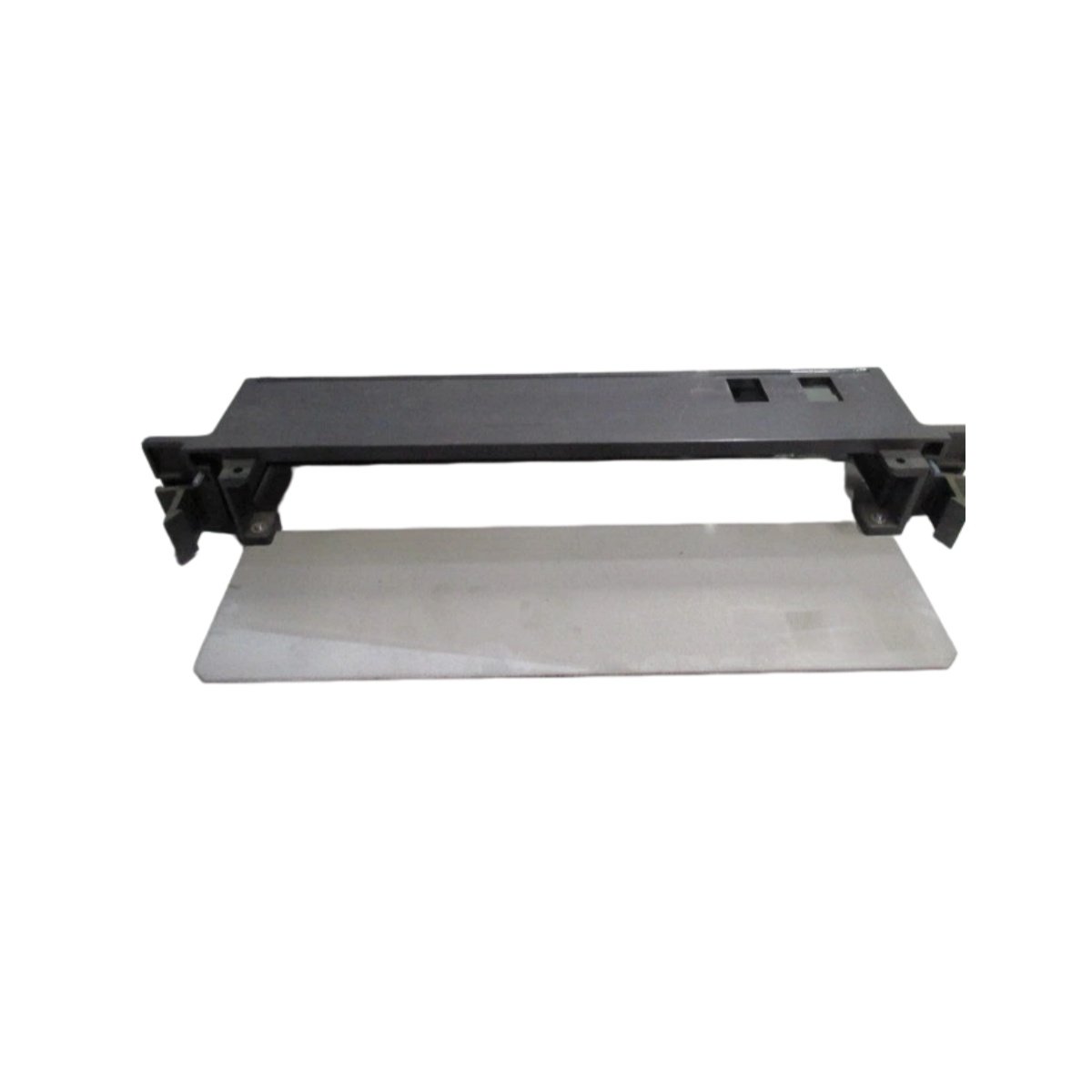

The GE IC698ACC720 provides a protective cover for unused slots in GE RX7i PLC chassis systems. This filler faceplate prevents dust and debris from entering empty module positions. Control cabinets with partially populated racks benefit from this simple protection solution. The faceplate’s gasketed design also maintains proper airflow within the enclosure.
Technical Specifications
This filler faceplate features a gasketed frame for enhanced environmental sealing. The GE IC698ACC720 matches the mechanical footprint of standard RX7i modules. Its lightweight construction installs quickly without special tooling requirements. The plate’s durable material resists warping and cracking in industrial environments.
| Parameter | Specification |
|---|---|
| Product Type | Gasketed Filler Faceplate / Slot Cover |
| Series Compatibility | GE RX7i PLC Chassis |
| Dimensions (W x H x D) | 25 mm x 130 mm x 110 mm |
| Weight | Approximately 0.08 kg |
| Material | Impact-resistant polycarbonate |
| Gasket Material | Silicone rubber |
| Gasket Seal Type | Compression seal |
| Mounting Method | Snap-in retention tabs (tool-less installation) |
| Color | Standard gray (matches RX7i modules) |
| Protection Rating | IP20 (when installed) |
| Energy Storage | None (passive mechanical assembly) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| RoHS Compliance | Compliant |
Protective Function
The GE IC698ACC720 seals empty slots to maintain chassis integrity and cleanliness. Its compression gasket creates a dust-resistant barrier around the slot perimeter. The faceplate also prevents accidental contact with exposed connectors inside the rack. This simple cover contributes to long-term reliability in dusty factory environments.
Airflow and Cooling Management
This filler faceplate plays a role in maintaining proper thermal management in the chassis. The GE IC698ACC720 channels airflow through populated modules rather than empty slots. This redirection prevents hot spots and ensures uniform cooling. Proper slot coverage prolongs the service life of adjacent modules.
Installation and Removal
Users install this faceplate by pressing it firmly into the empty slot. The GE IC698ACC720 features snap-in tabs that lock securely into place. Removal requires a simple push from the rear side of the chassis. The tool-less design facilitates quick installation during system commissioning.
Application Scenarios
System integrators use this faceplate for slot protection in partially populated racks. It also serves during module replacement intervals to maintain coverage. The GE IC698ACC720 provides cost-effective protection for unused RX7i chassis slots.
Details
| Weight | 0.25 kg |
|---|---|
| Dimensions | 110 × 70 × 30 mm |
