Reliable Power Delivery for Series 90-70 Systems

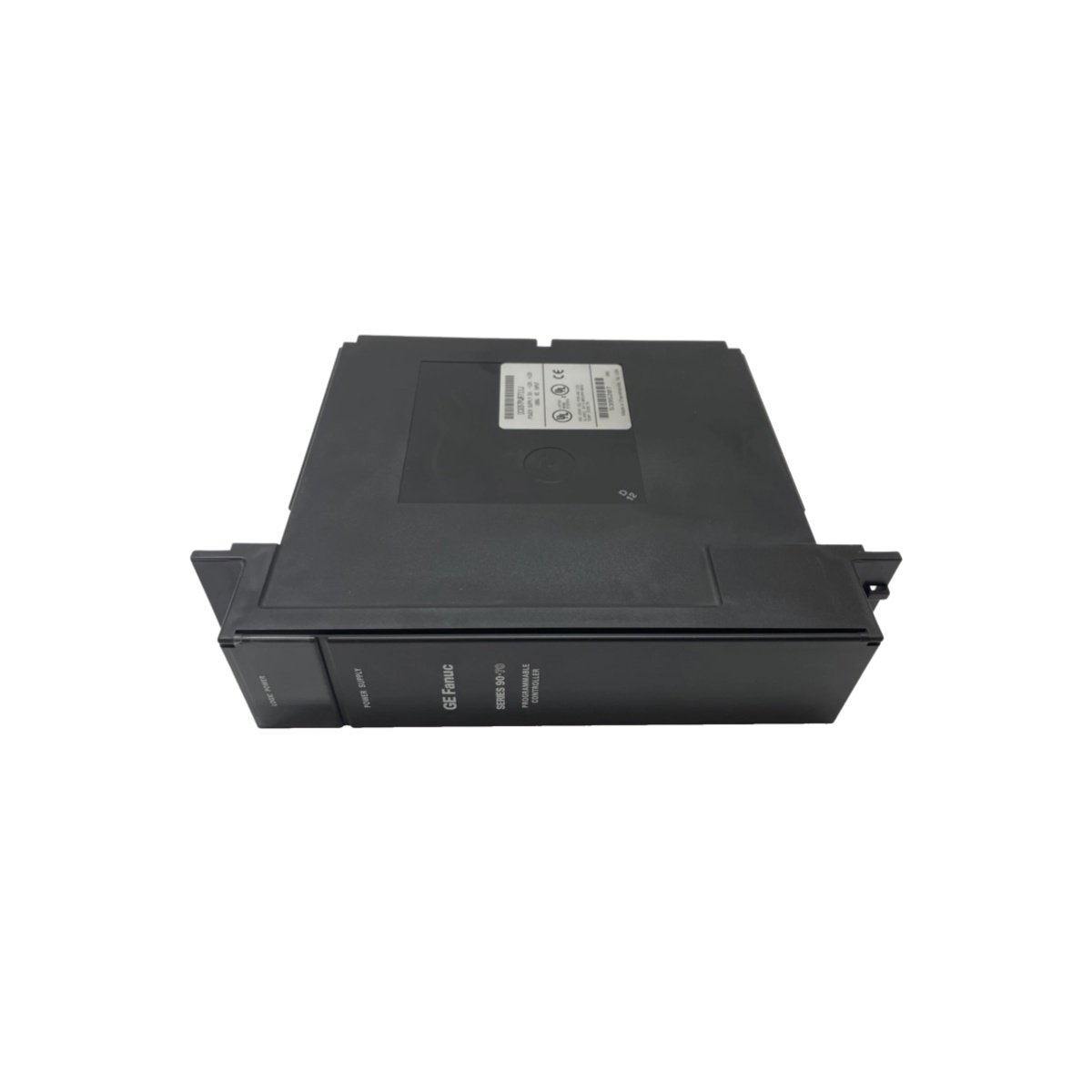

The GE IC697PWR711 provides robust power for the Series 90-70 PLC backplane and its installed modules. This high-capacity supply delivers 90 watts of total output power for demanding system configurations. It supplies 5 VDC at 30 A, 12 VDC at 2 A, and -12 VDC at 1 A . Furthermore, the IC697PWR711 accepts a wide AC input range from 85 to 264 VAC (47-63 Hz) or 100 to 150 VDC . Its universal input capability makes it suitable for global installations without configuration changes.
Protection and Monitoring Features
The power supply incorporates comprehensive protection including overvoltage, overcurrent, and overtemperature shutdown. An LED status indicator provides visual confirmation of normal operation and fault conditions . The IC697PWR711 also offers DC OK relay contacts for remote monitoring by supervisory systems . Its built-in holdup time of 20 ms ensures seamless operation during brief power interruptions . Moreover, the module’s forced-air cooling system maintains optimal operating temperature across all load conditions .
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC697PWR711 |
| Manufacturer | GE Fanuc / Emerson |
| Product Type | Power Supply Module |
| Total Output Power | 90 W |
| 5 VDC Output | 30 A |
| 12 VDC Output | 2 A |
| -12 VDC Output | 1 A |
| AC Input Range | 85-264 VAC (47-63 Hz) |
| DC Input Range | 100-150 VDC |
| Holdup Time | 20 ms typical |
| Protections | Overvoltage, overcurrent, overtemperature |
| Status Indicator | 1 LED |
| Monitoring | DC OK relay contacts |
| Cooling | Forced-air (internal fan) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95%, non-condensing |
| Certifications | UL, CSA, CE |
| Country of Origin | USA |
Installation and Application Use
You can install the IC697PWR711 in the leftmost slot of any Series 90-70 rack . Its universal power inputs eliminate the need for voltage selection jumpers, simplifying installation . The module’s generous 5 VDC output supports large systems with multiple I/O, communication, and CPU modules . Consequently, engineers choose this power supply for mission-critical automation in power generation, water treatment, manufacturing, and material handling systems .
Details
| Weight | 0.28 kg |
|---|---|
| Dimensions | 25 × 130 × 110 mm |
