This interrupt input module captures high-priority signals for immediate processor response. The GE IC697MDL671 provides eight discrete input channels with hardware interrupt capability. Each channel detects rising or falling edge transitions for event-triggered processing. The module latches input states and generates an interrupt request to the CPU. Its fast response time enables precise timestamping and rapid control actions.

Mechanical Dimensions and Construction Quality

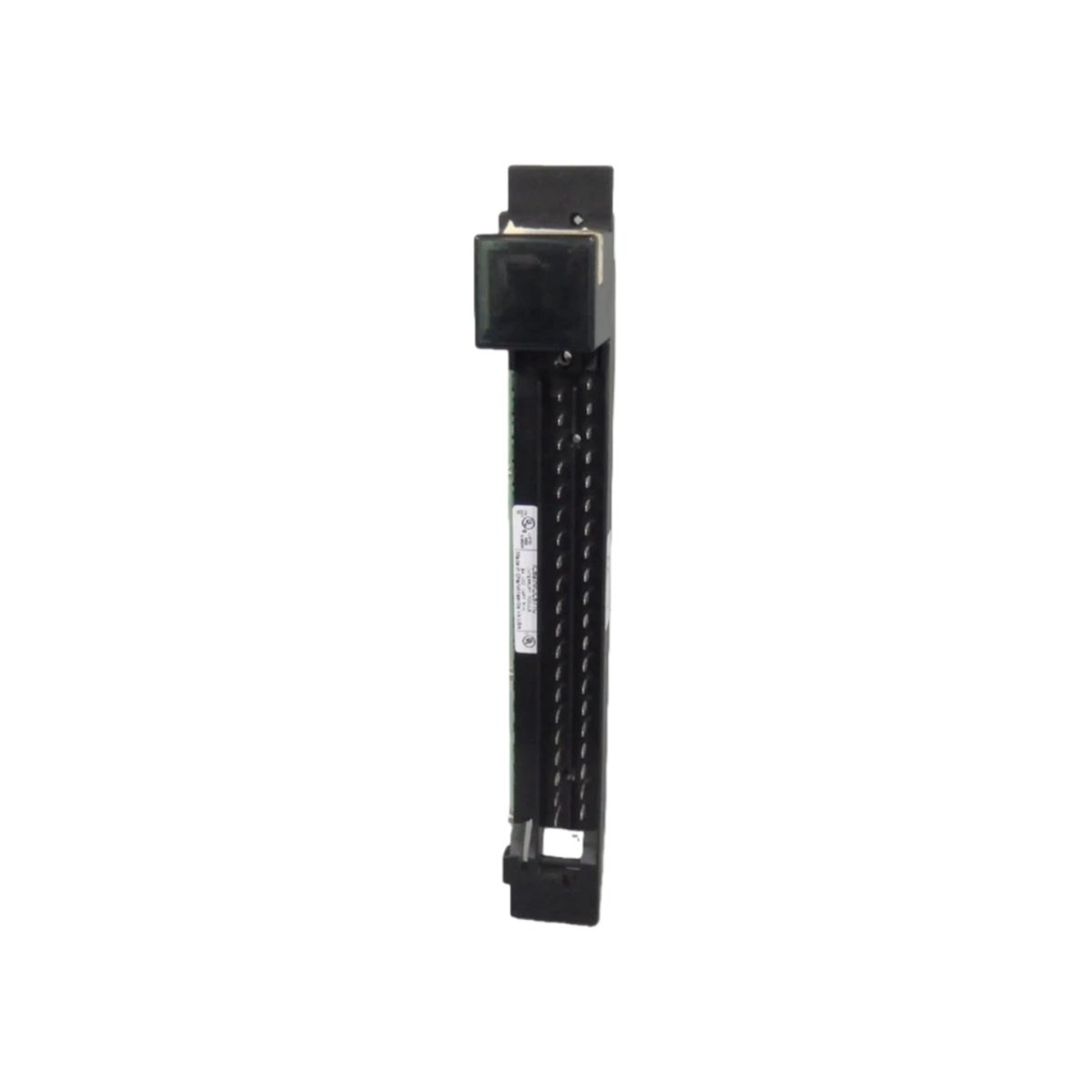

The module measures 130 mm in height, 85 mm in depth, and 45 mm in width. This compact form factor fits standard Series 90-70 rack systems efficiently. Weighing only 0.35 kg, the IC697MDL671 simplifies handling during installation and maintenance. A rugged thermoplastic housing protects internal circuits from dust and mechanical stress. This housing meets IP20 requirements for safe indoor panel mounting.

Technical Specifications at a Glance

Interface and Connectivity Features

An 18‑position screw clamp terminal block accepts wires from 0.2 to 2.5 mm² securely. Each input channel includes separate common returns for flexible wiring configurations. Front‑panel LEDs indicate individual channel status and latched interrupt conditions. These LEDs also display supply voltage presence and internal fault states. A dedicated hardware latch stores the input state until the CPU acknowledges the interrupt.

Interrupt Architecture and Configuration

The GE IC697MDL671 allows independent interrupt configuration for each of the eight channels. You can select rising edge, falling edge, or both edge triggers per channel. A programmable input filter eliminates false triggers from electrical noise and contact bounce. The module assigns interrupt priority levels to each channel for deterministic response. This priority scheme ensures that critical events receive immediate processor attention.

Power Architecture and Energy Storage

The module draws 150 mA from the 5 VDC backplane for internal logic operations. It also requires a 24 VDC ±10% external supply for the input circuits. An onboard 68 µF capacitor provides short‑term energy storage for signal stability. This capacitor maintains input states during power dips lasting up to 6 milliseconds. Total power dissipation measures 3.2 W under full channel load.

Internal Component Architecture

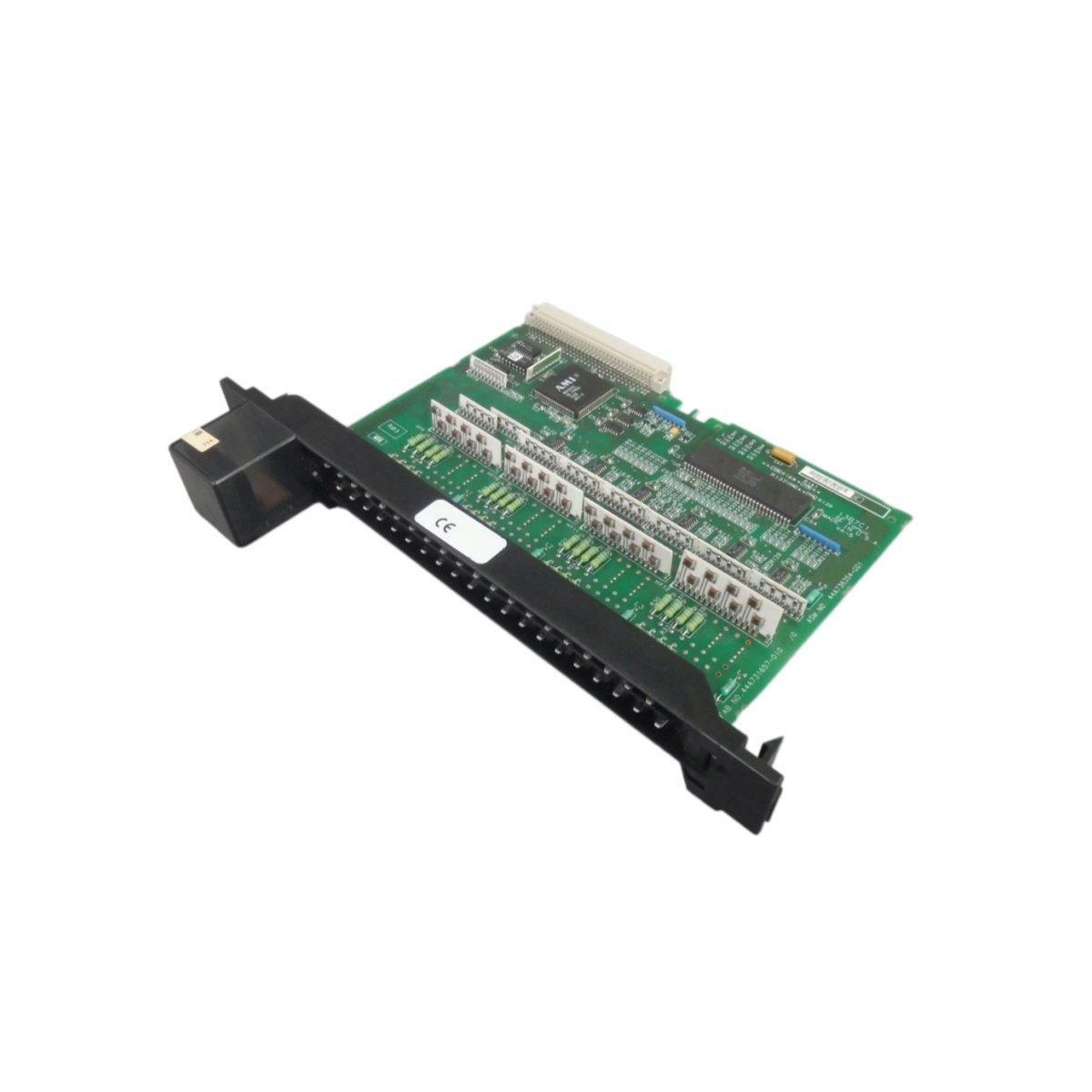

Eight optocouplers provide galvanic isolation between the field inputs and the backplane. Each channel includes an edge-detection circuit for interrupt generation. The module uses a dedicated latch register to store triggered events. The PCB contains 96 resistors, 64 capacitors, and 8 optocoupler ICs. A programmable logic device manages the interrupt prioritization and latching functions. The module also features surge suppression diodes on every input channel.

Environmental Performance and Certifications

This interrupt input module operates reliably from 0 °C to +60 °C in factory environments. It also performs consistently in humidity conditions from 5% to 95% without condensation. The IC697MDL671 complies with UL 508, CSA, and CE certification standards. These approvals guarantee safe integration into global industrial control systems.
