Product Overview

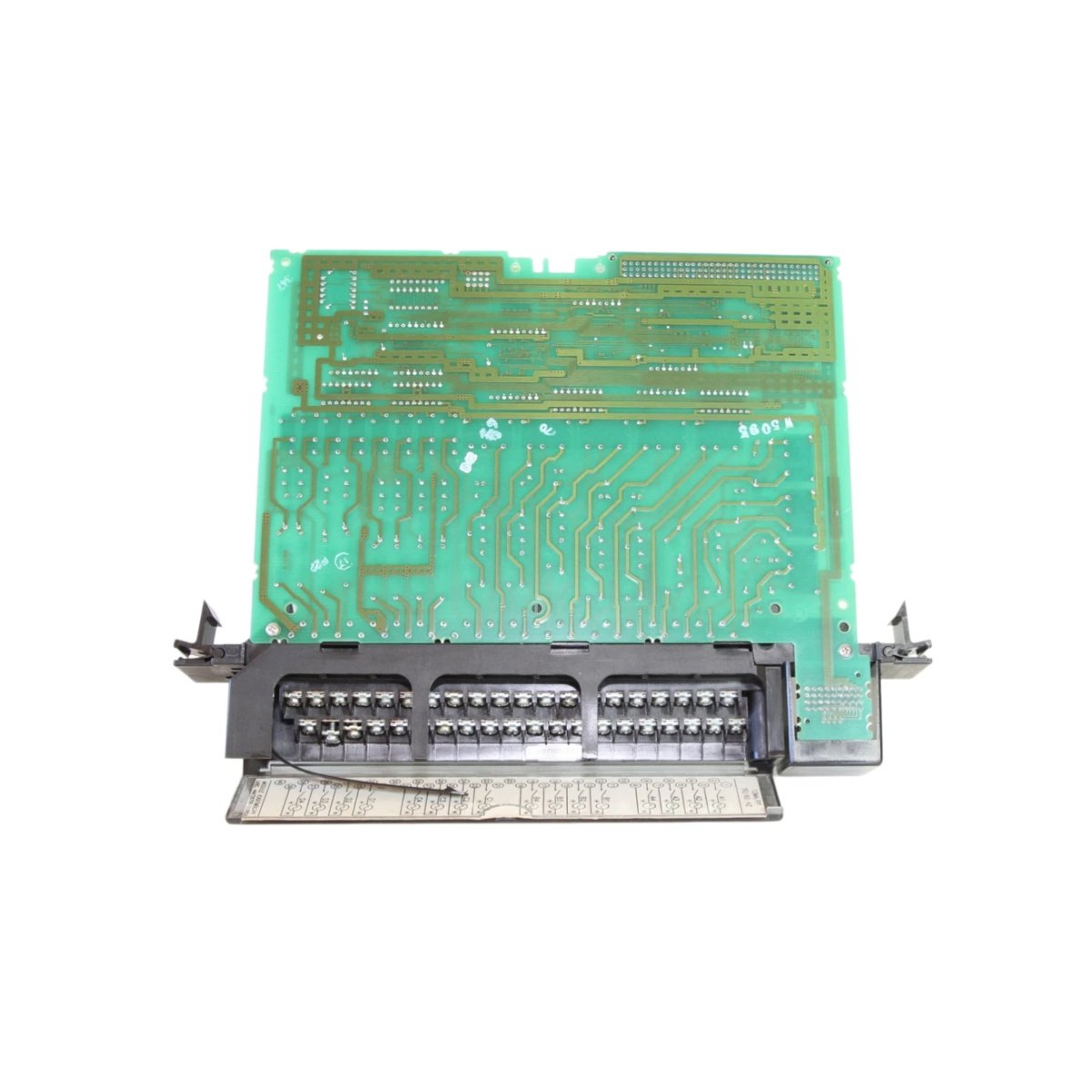

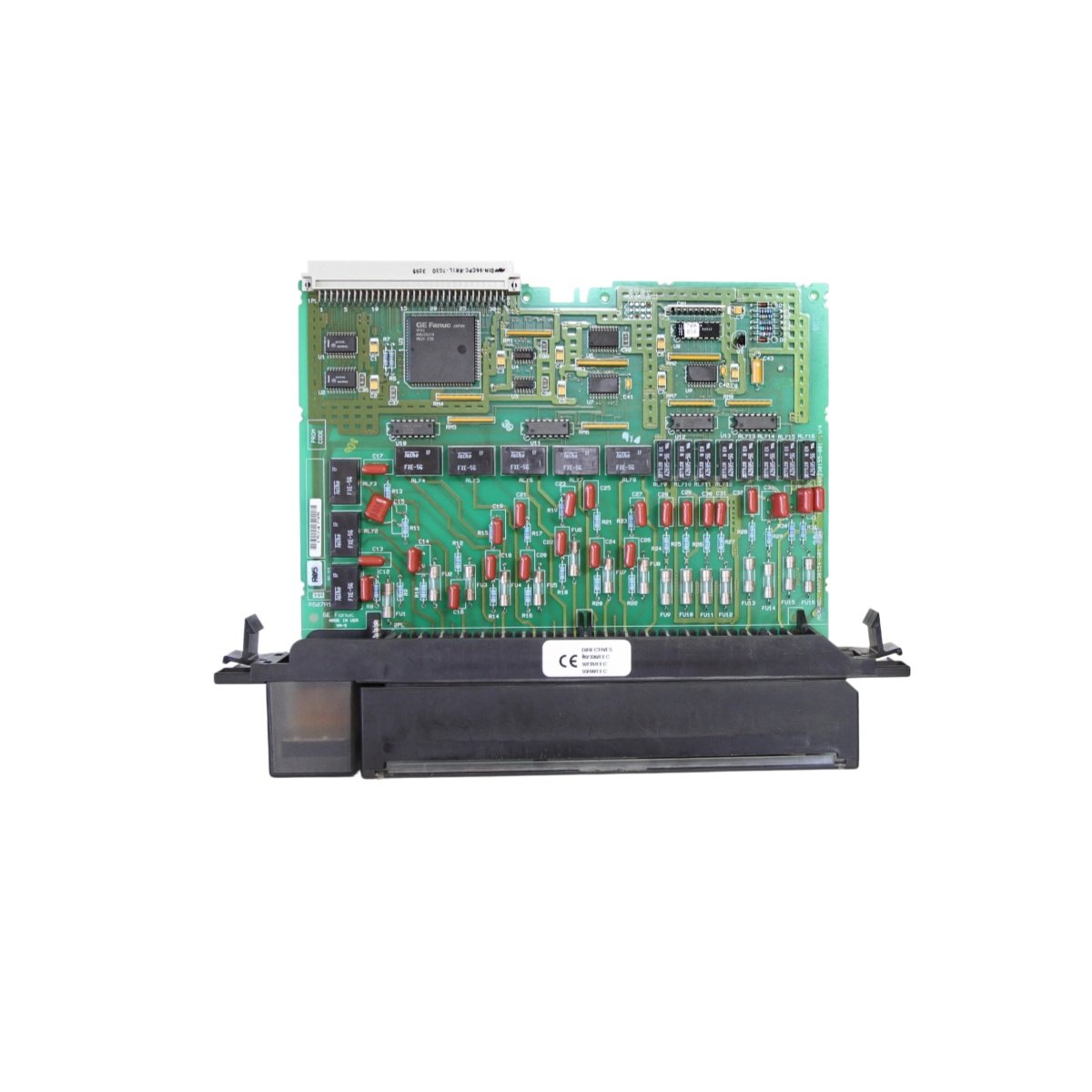

The GE Fanuc IC697MDL241 functions as a 32-point discrete input module for the Series 90-70 PLC system. This module accommodates either positive or negative logic inputs, giving engineers valuable configuration flexibility . Moreover, the IC697MDL241 uses standard 24 VDC signals for seamless integration with modern sensors and switches .

Technical Specifications

The IC697MDL241 provides 32 input points arranged in two isolated groups of 16 . Each group operates independently with its own common connection and can accept either positive (sourcing) or negative (sinking) logic . Furthermore, the module draws 720 mA from the 5 VDC backplane supply and offers 500 VDC isolation between groups and the backplane .

Key Design Features

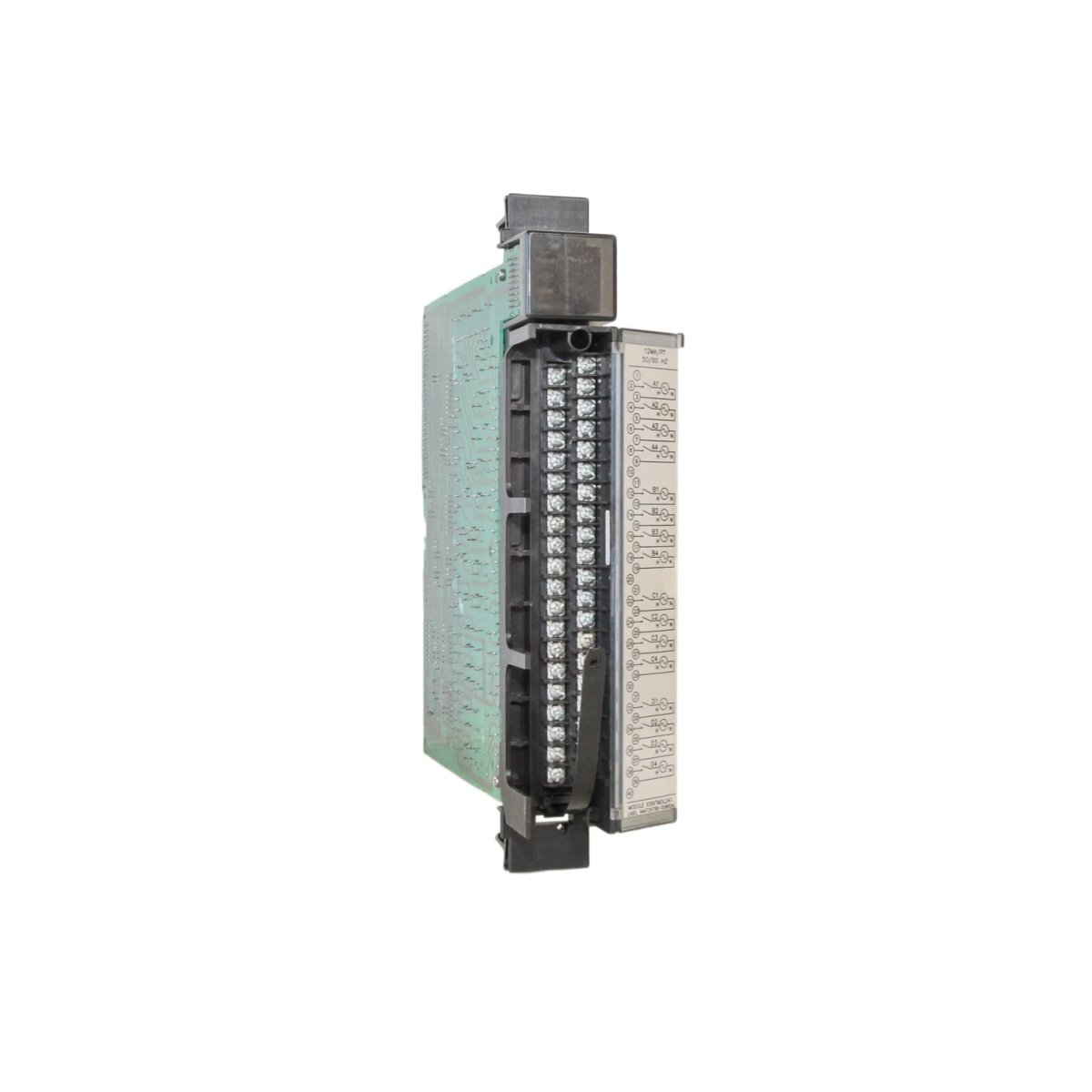

The IC697MDL241 includes 32 yellow LED indicators that clearly display the status of each input channel . These LEDs allow operators to verify field device states without needing a programming terminal . Additionally, the module’s group isolation feature proves valuable when interfacing with multiple power supplies . The yellow color-coded insert on the module door serves as a quick visual identifier for 24 VDC input modules .

Application and Integration

The IC697MDL241 integrates seamlessly into Series 90-70 PLC installations in manufacturing and material handling applications . This module accepts input signals from a wide range of 24 VDC devices, including pushbuttons, limit switches, proximity sensors, and photoelectric sensors . Consequently, engineers can mix positive and negative logic devices within the same module using the independent group configuration . The module’s 500 VDC isolation further enhances system reliability in noisy industrial environments .
